Products

The Eaton BRSPA60 is a 60 amp outdoor spa panel that provides the GFCI protection and within-sight disconnect required for hot tubs and spas. A factory-installed 60A 2-pole GFCI breaker (BRN260GF) protects the spa, and two additional circuit spaces let you add a light, pump, or other outdoor load from the same panel.

The powder-coated galvanized steel NEMA 3R enclosure is built for outdoor mounting near the spa.

Key Features

• Factory-installed 60A 2-pole GFCI breaker (BRN260GF)
• Two additional circuit spaces for extra outdoor loads
• Serves as the required within-sight spa disconnect
• Single phase, 120/240V
• Powder-coated galvanized steel, NEMA 3R outdoor enclosure
• UL Listed

Manufacturer spec sheet: Eaton BRSPA60

The Eaton BRSPA50 is a 50 amp outdoor spa panel that provides the GFCI protection and within-sight disconnect required for hot tubs and spas. A factory-installed 50A 2-pole GFCI breaker (BRN250GF) protects the spa, and two additional circuit spaces let you add a light, pump, or other outdoor load from the same panel.

The powder-coated galvanized steel NEMA 3R enclosure is built for outdoor mounting near the spa.

Key Features

• Factory-installed 50A 2-pole GFCI breaker (BRN250GF)
• Two additional circuit spaces for extra outdoor loads
• Serves as the required within-sight spa disconnect
• Single phase, 120/240V
• Powder-coated galvanized steel, NEMA 3R outdoor enclosure
• UL Listed

Manufacturer spec sheet: Eaton BRSPA50

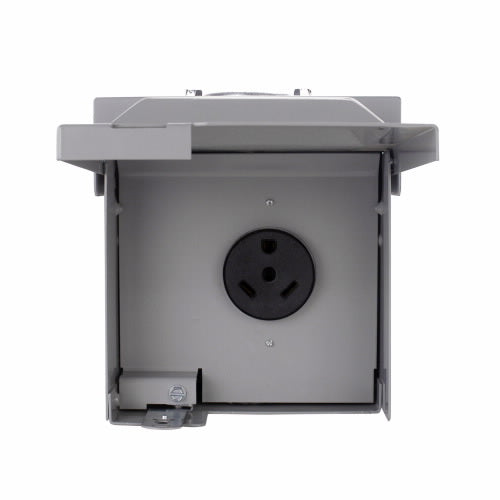

The Eaton CHU4S is an unmetered surface mount enclosure with a single NEMA TT-30R 30 amp RV receptacle. It's a simple way to add a 30 amp RV or travel trailer hookup to a post, wall, or garage, fed from an upstream breaker.

Galvanized steel with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure. Ships without a breaker; protect the circuit with a properly sized breaker upstream.

Key Features

• Single NEMA TT-30R (30A, 125V) receptacle
• Unmetered surface mount enclosure
• No breaker included
• Top feed; accepts #14 to #10 AWG wire
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHU4S

The Eaton CHU2G2GKGS is an unmetered surface mount power outlet box with three ground-fault protected 20 amp circuits: two 125V 5-20R receptacles and one 250V 6-20R receptacle. It's built for tent sites, cabins, docks, event and vendor hookups, and other locations that need protected convenience and 240V tool power.

Galvanized steel with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure.

Key Features

• Unmetered surface mount box
• Three 20A ground-fault breakers
• Two NEMA 5-20R2 WR (125V) and one NEMA 6-20R2 WR (250V) receptacles
• 4-circuit interior, top feed
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed

Manufacturer spec sheet: Eaton CHU2G2GKGS

The Eaton CHU1G9N9NS is an unmetered surface mount RV power outlet box with a ground-fault protected 50 amp circuit plus two 20 amp GFCI receptacles. It's a good fit for 50 amp RV sites where the authority having jurisdiction requires ground-fault protection on the 50A outlet.

Galvanized steel with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure. A steel barrier keeps the breakers secured when the door is closed and padlocked.

Key Features

• Unmetered surface mount box
• 50A ground-fault breaker, plus two 20A non-ground-fault breakers
• NEMA 14-50R (50A) and two NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• 4-circuit interior, top feed
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHU1G9N9NS

The Eaton CHU1S is an unmetered surface mount enclosure with a single NEMA 14-50R 50 amp RV receptacle. It's an economical way to add a 50 amp RV hookup to a post, wall, or garage, fed from an upstream breaker.

Galvanized steel with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure. Ships without a breaker; protect the circuit with a properly sized breaker upstream.

Key Features

• Single NEMA 14-50R (50A, 125/250V) receptacle
• Unmetered surface mount enclosure
• No breaker included
• Top feed
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHU1S

The Eaton CHR9N9NS is a ringless metered surface mount power outlet box with two 20 amp GFCI receptacles. It suits tent sites, boat slips, cabins, and vendor or utility hookups where you need metered 120V convenience power rather than full RV service. An electric meter is sold separately.

Galvanized steel construction with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure.

Key Features

• Ringless metered surface mount box (meter sold separately)
• Two 20A non-ground-fault breakers
• Two NEMA 5-20R2GFI WR/TR (20A GFCI, weather- and tamper-resistant) receptacles
• 4-circuit interior
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHR9N9NS

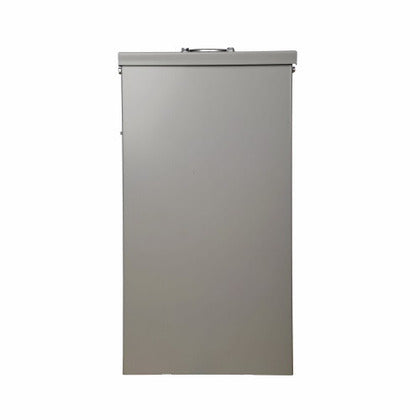

The Eaton CHU1N9NS is an unmetered surface mount RV power outlet box with a 50 amp RV receptacle and a 20 amp GFCI convenience receptacle. Mount it to a post, wall, or existing structure to add 50 amp RV service to a site.

Galvanized steel with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure. A steel barrier keeps the breakers secured when the door is closed and padlocked.

Key Features

• Unmetered surface mount box
• 50A and 20A circuits, non-ground-fault breakers
• NEMA 14-50R (50A) and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• Weather- and tamper-resistant center receptacle
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed, File E163588

Manufacturer spec sheet: Eaton CHU1N9NS

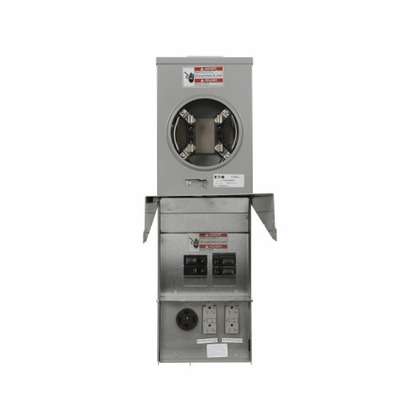

The Eaton CHR1N9N4NS is a ringless metered surface mount RV power outlet box for mounting on a post, wall, or existing structure at the site. It gives each RV site the full 50/30/20 amp configuration with a ringless meter socket for sub-metering (meter sold separately).

Galvanized steel with a baked-on gray polyester powder coat and NEMA 3R rainproof enclosure. A steel barrier keeps the breakers secured when the door is closed and padlocked.

Key Features

• Ringless metered surface mount box (meter sold separately)
• 50A, 30A and 20A circuits, all non-ground-fault breakers
• NEMA 14-50R (50A), NEMA TT-30R (30A) and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• 4-circuit interior, top feed
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHR1N9N4NS

The Eaton CHR1N9N4NBTZ is a back-to-back metered RV power pedestal that serves two sites from a single post. Each side is a ringless metered 50/30/20 amp RV outlet panel, so you can bill neighboring sites separately while running one feed and setting one pedestal.

It ships with a factory-installed pedestal extension and lay-in ground lug, ready to set and wire. The galvanized steel enclosure has a baked-on gray polyester powder coat and NEMA 3R rainproof rating. Electric meters are sold separately.

Key Features

• Back-to-back pedestal serves two RV sites
• Ringless metered sockets (meters sold separately)
• 50A, 30A and 20A circuits per side, all non-ground-fault breakers
• NEMA 14-50R (50A), NEMA TT-30R (30A) and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• Factory-installed pedestal extension with lay-in ground lug
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL 231, UL File E163588

Manufacturer spec sheet: Eaton CHR1N9N4NBTZ

The Eaton CHR1N9N4NP is a ringless metered pedestal mount RV power outlet panel built for RV parks and campgrounds that sub-meter each site. It provides the full 50/30/20 amp RV configuration in one top-fed pedestal, with a ringless meter socket for an electric meter (sold separately).

The galvanized steel enclosure carries a baked-on gray polyester powder coat and a NEMA 3R rainproof rating for long outdoor service.

Key Features

• Ringless metered pedestal mount panel (meter sold separately)
• 50A, 30A and 20A circuits, all non-ground-fault breakers
• NEMA 14-50R (50A), NEMA TT-30R (30A) and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• 4-circuit interior, top feed
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHR1N9N4NP

The Eaton CHU1N9N4NP is an unmetered pedestal mount RV power outlet panel for campgrounds and RV parks that include power in the site fee. It puts the standard 50/30/20 amp RV configuration on a single pedestal so every rig, from pop-up to big diesel pusher, can plug in.

Galvanized steel construction with a baked-on gray polyester powder coat and NEMA 3R rainproof rating stands up to outdoor exposure.

Key Features

• Unmetered pedestal mount panel
• 50A, 30A and 20A circuits, all non-ground-fault breakers
• NEMA 14-50R (50A), NEMA TT-30R (30A) and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• Weather- and tamper-resistant center receptacle
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHU1N9N4NP

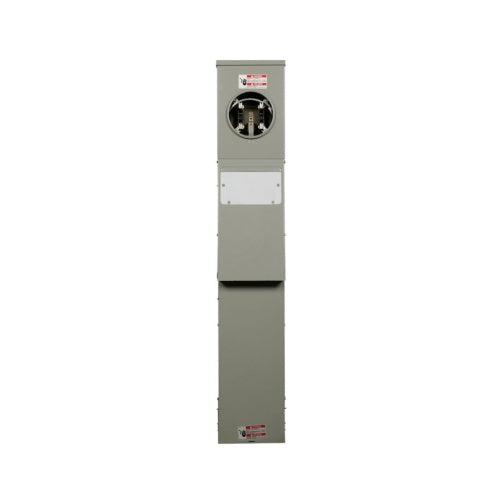

The Eaton CHM1N9N4NP is a ring-type metered pedestal mount RV power outlet panel for campgrounds, RV parks, and marinas that bill each site for power. It delivers the standard 50/30/20 amp RV site configuration in a single top-fed unit, with an electric meter (sold separately) mounted in the ring-type socket.

Heavy-gauge galvanized steel with a baked-on gray polyester powder coat and a NEMA 3R rainproof enclosure keeps it working outdoors year after year.

Key Features

• Ring-type metered pedestal mount panel (meter sold separately)
• 50A, 30A and 20A circuits, all non-ground-fault breakers
• NEMA 14-50R (50A), NEMA TT-30R (30A) and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• 4-circuit interior, top feed
• Galvanized steel with baked-on gray polyester powder coat, NEMA 3R
• UL Listed to UL 231, File E163588

Manufacturer spec sheet: Eaton CHM1N9N4NP

The Eaton CHR1N9N4NPTZ is a factory-wired, ringless metered pedestal mount power panel built for RV parks, campgrounds, and temporary power applications where sub-metering is required. It ships with a factory-installed pedestal extension and a lay-in ground lug, so it's ready to set and wire on delivery. An electric meter is sold separately.

The panel is constructed of heavy-gauge steel with a baked-on gray polyester powder coat finish and a NEMA 3R rated enclosure for solid corrosion and weather resistance outdoors. A top-feed design and hinged deadfront covers make wiring straightforward, and the panel comes factory wired and assembled with loop-fed lugs.

Key Features

• Ringless metered pedestal mount panel with factory-installed pedestal extension and lay-in ground lug
• 4 circuits: 50A, 30A, and 20A GFCI positions
• NEMA 14-50R (50A), NEMA TT-30R (30A), and NEMA 5-20R2GFI WR/TR (20A GFCI) receptacles
• Heavy-gauge steel construction with baked-on gray polyester powder coating
• NEMA 3R rainproof enclosure rating
• Top feed, factory wired and assembled with loop-fed lugs
• UL Listed to UL Standard 231, File E163588

Electric meter sold separately.

ADA wheelchair-accessible commercial picnic table frame kit — 8ft extended top, welded galvanized steel, built for public spaces that need accessible seating.

The extended table top overhangs the seats at the end, giving a wheelchair user a clear approach and full knee clearance at the table — no bench in the way. Built on the same 2-3/8" OD, 11 ga galvanized steel tubing as our best-selling standard frame, with welded one-piece construction that is structurally stronger than bolted alternatives. Hardware is stainless steel — won't rust out over years of outdoor exposure.

Frame Features:

• ADA wheelchair-accessible design — extended 8ft top with open end for wheelchair seating
• Extended support arms carry the overhanging top boards
• 2-3/8" OD tubing, 11 ga wall — heavier than industry-standard 13 ga
• Welded construction — stronger than bolted frame alternatives
• Stainless steel carriage bolt fasteners included — corrosion-proof
• 1-5/16" OD diagonal braces for structural rigidity
• Extra-wide tip-resistant, walk-through design
• Hot-dip galvanized finish with clear lacquer coating
• Works with standard 2x10 lumber — purchase locally to save on freight

Ideal for parks, campgrounds, RV parks, schools, and municipalities that need accessible seating. Frame only — lumber not included. Buying lumber locally cuts your total cost significantly compared to a fully assembled table shipped freight.

Frequently asked questions

What is included?

The welded galvanized steel ADA frame and stainless-steel carriage-bolt hardware. Lumber (standard 2x10) is not included — buy it locally to save significantly on freight.

How is this different from the standard frame kit?

The table top extends past the benches at the end, creating an open, wheelchair-accessible seating position with knee clearance under the top.

What size is the table top?

This kit is designed for an 8ft table top with the extended accessible end.

Why welded instead of bolted?

Welded one-piece construction is structurally stronger and will not loosen over time the way bolted frames can.

Need a standard table? See our standard heavy duty picnic table frame kit.
