Similar Collections
Unmetered RV Pedestal
Metered RV Pedestal
Sort by:
8 products
8 products

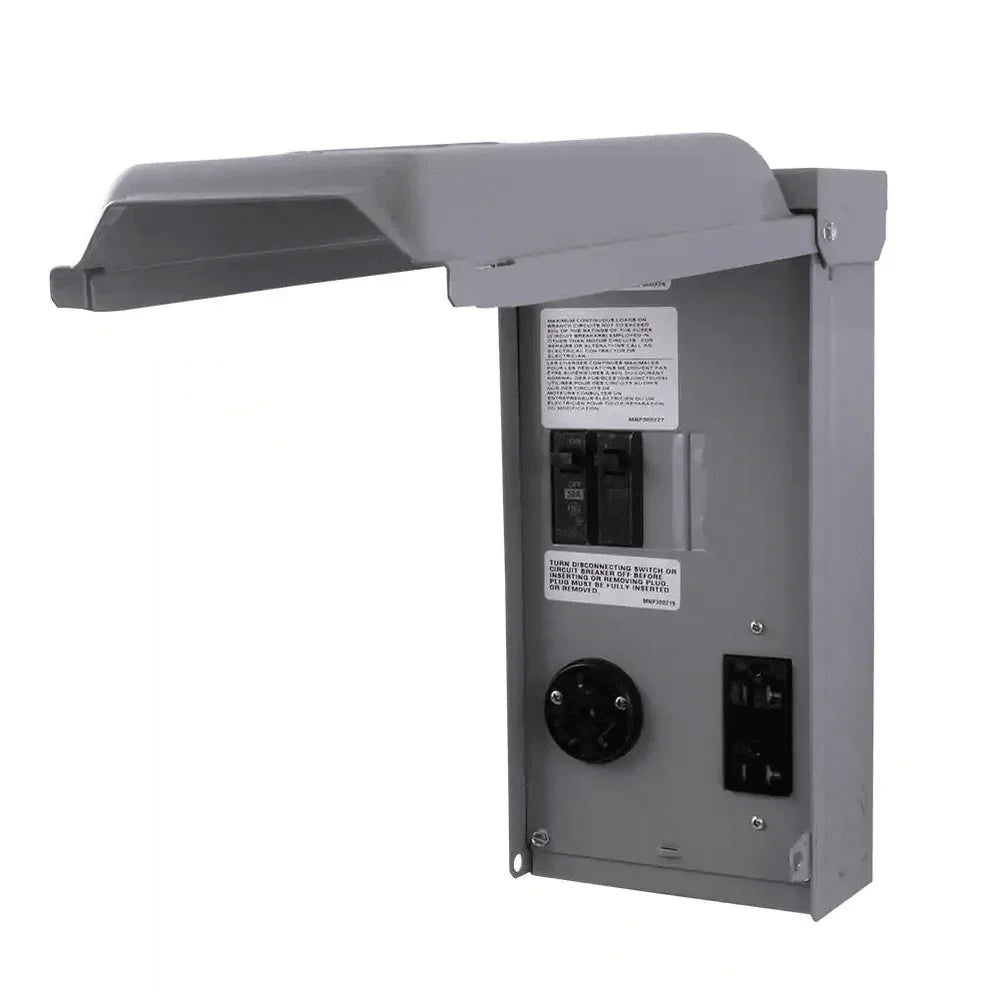

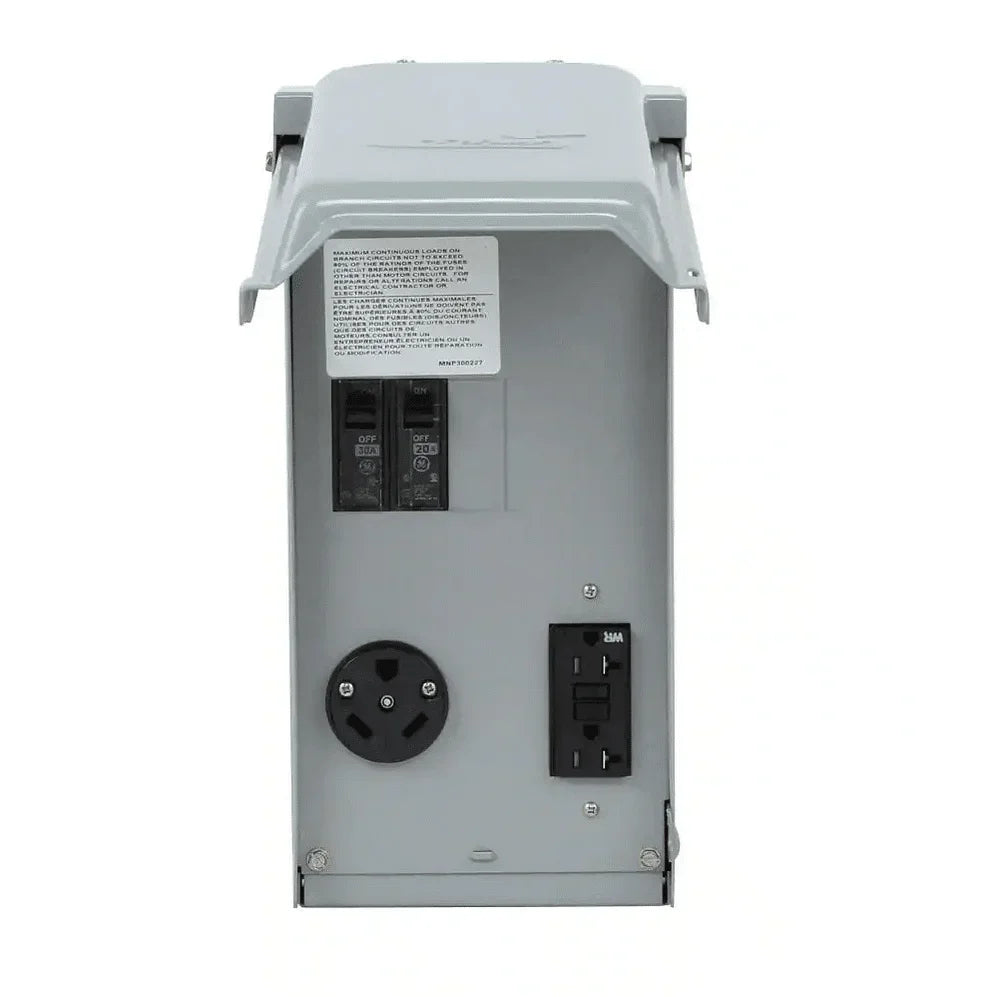

30 Amp RV Receptacle
Enhance your electrical system with the Midwest 70 Amp RV Power Outlet Box. Featuring 30 Amps of maximum power with 20 amp GFI, this durable box features a gray enclosure and is ANSI certified and UL listed for safety. The box is manufactured known for its exceptional quality, durability and commercial rating.
Product Information:
-
- NEMA 3R weatherproof construction
- G90 galvanized steel construction for superior corrosion resistance
- Durable polyester powder coat finish resists chipping and fading
- All components factory wired and assembled, reducing installation time
- Door removable for installation ease; stay open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Broad range of concentric knockouts to accommodate varied wiring needs
- All units with factory installed Cu/Al equipment ground lug
- Dead front construction prevents accidental contact with live parts
- Padlock provision to prevent unauthorized access
- Rolled edge door for cord protection
- Conforms to NEC and NEMA standards
- Cross Reference: CESMPSC41GRHR, U041GP
[table id=28 /]

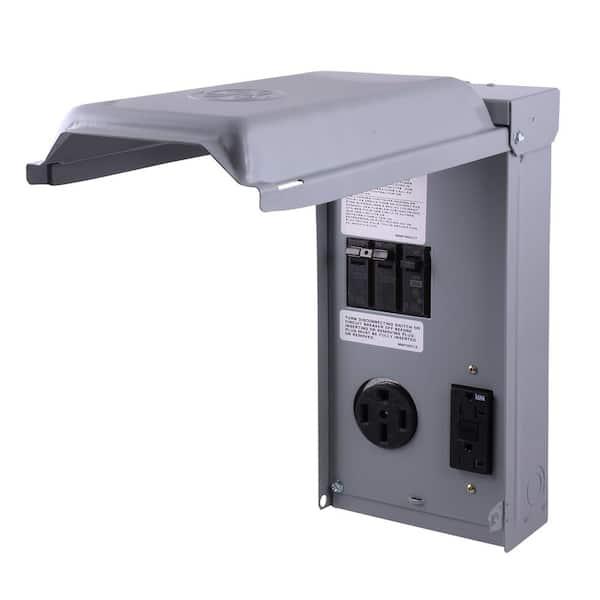

50 Amp RV Receptacle
Enhance your electrical system with the Midwest 50/20 Amp RV Power Outlet Box. Featuring 50 Amps of maximum power with 20 amp GFI, this durable box features a gray enclosure and is ANSI certified and UL listed for safety. The box is manufactured known for its exceptional quality, durability and commercial rating.
Product Information
- NEMA 3R weatherproof construction
- G90 galvanized steel construction for superior corrosion resistance
- Durable polyester powder coat finish resists chipping and fading
- All components factory wired and assembled, reducing installation time
- Door removable for installation ease; stay open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Broad range of concentric knockouts to accommodate varied wiring needs
- All units with factory installed Cu/Al equipment ground lug
- Dead front construction prevents accidental contact with live parts
- Padlock provision to prevent unauthorized access
- Rolled edge door for cord protection
- Conforms to NEC and NEMA standards
- Cross Reference: CESMPSC55GRHR, GE1LU502SS
[table id=29 /]
[porto_block id="100467"]

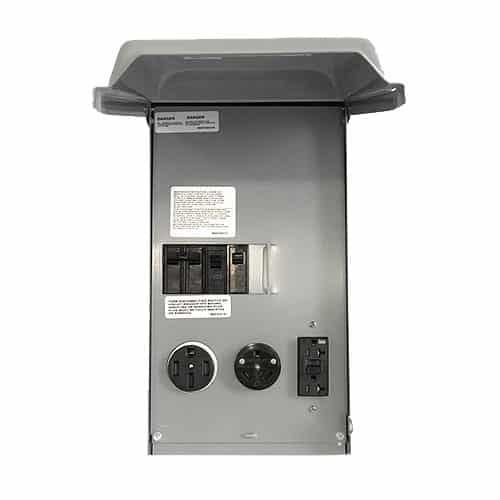

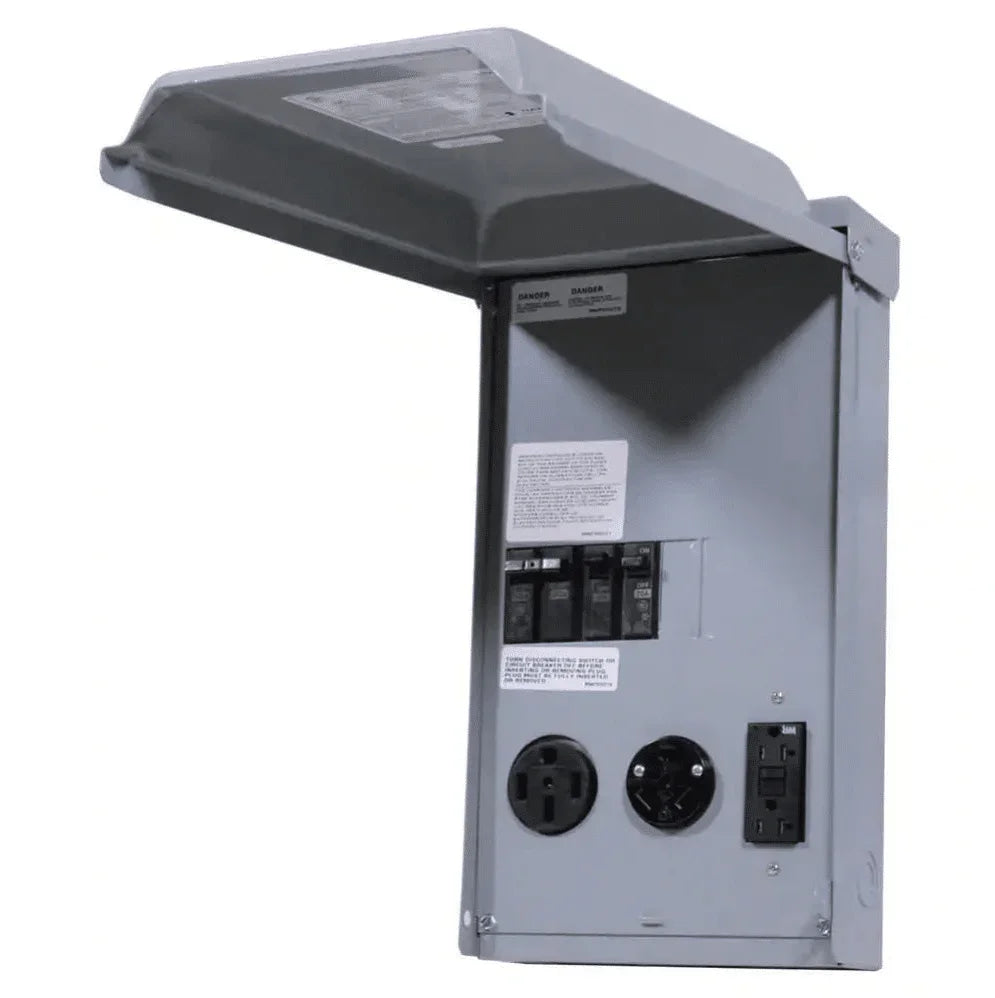

This 50/30/20 RV outlet is a popular choice for residential or RV parks. Constructed of the U075CTL010 is G90 galvanized steel, this 50/30/20 Midwest post-mount RV box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed and has loop-fed lugs. Approved for use in USA & Canada.
U075CTL010 Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
- Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC55N1T load center
- Suitable for service equipment
- Twin lugs per phase (loop feed for surface mount units) post options
- GFCI duplex receptacle options
Technical Description: 50/30/20 AMP RV Box
Unmetered Type; G90 Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Amp Current Rating; 1-Phase Circuit Configuration; No Illuminated; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Voltage Rating 120/240 Volt; Cabinet Dimension 9-3/4 Inch Width X 5-3/16 Inch Depth X 17-3/8 Inch Height; Mounting Type Surface;
Product Specifications: U075CTL010
[porto_block id="84415"]
U075CTL010 360 Video
https://youtube.com/shorts/g-6u_Ih1zjI?si=Us7CzI2rTTPd9A9B
Product Description
Constructed of G90 galvanized steel, this 30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed and has loop-fed lugs. Approved for use in Canada.
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
- Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC33N7 load center
- Loop feed
- Suitable for service equipment
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish
| UPC: | 784567203011 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 17-3/8 Inch H; Mounting Surface |
| Catalog Number: | U041CTL010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB130 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 17-3/8 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U041CTL010 100A SURFACE 30/20GFCI TWIN LUGS |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 23153407 |
| UPC 12 Digit: | 784567203011 |
| Unique Product Key: | 6005879 |

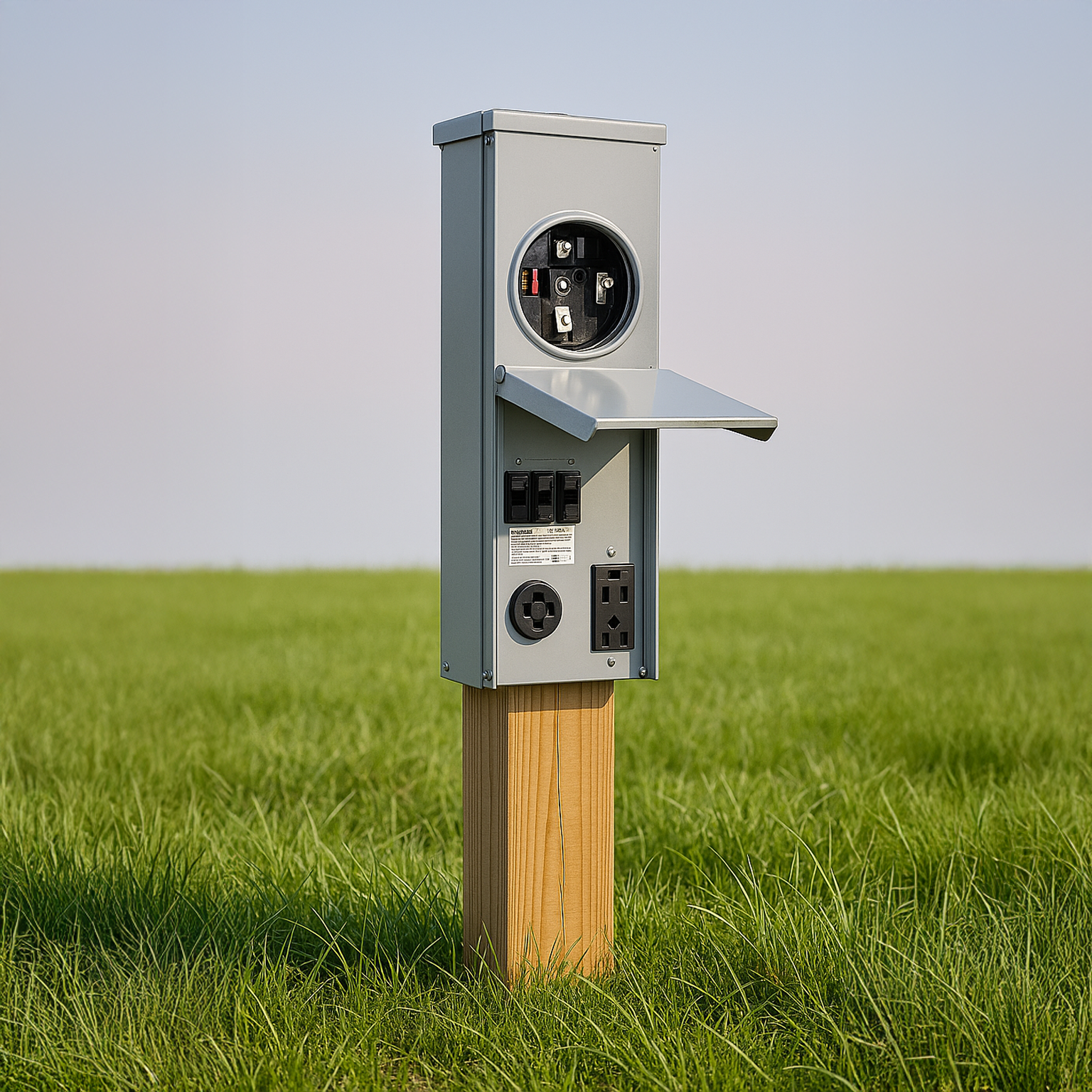

MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Overhead Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567301731 |
| LOOP LUG: | No |

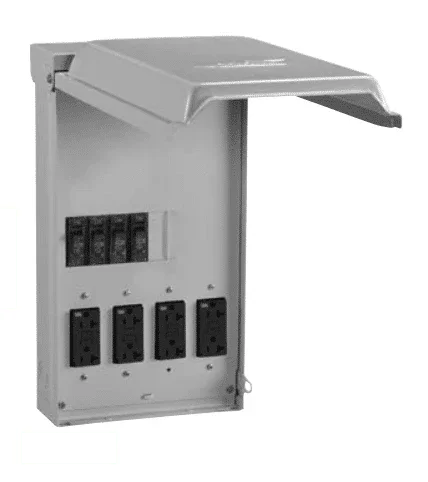

Midwest electric temporary power and power outlets are a means of providing power required by various construction trades, residential sites and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering and/or pedestal mounting functions, in a single enclosure of G90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism and normal field use.
Midwest® GE Unmetered Power Outlet, 120/240 VAC, 100 A, 1 ph Phase, NEMA 5-20R2GFCI Receptacle, CB120 Circuit Breaker, 14 to 8 AWG, 12 to 8 AWG Wire, Overhead Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Surface Mount
- Durable polyester powder coat finish resists chipping and fading
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Wide assortments of concentric knockouts offer flexibility in the installation
- Padlockable door to help prevent unauthorized access
- Deadfront construction prevents accidental contact with live parts
- All components factory wired and assembled, reducing installation time
- 9 x 17 in cabinet
- LC55N1 loadcenter
- 14 to 8 AWG solid, 14 to 1/0 AWG strand (copper), 12 to 8 AWG solid, 12 to 1/0 AWG strand (aluminum) line, 14 to 10 AWG solid, 14 to 1/0 AWG strand (copper) load
- Circuit breaker type at 1-position CB120, two circuit breaker type at position 2 CB120

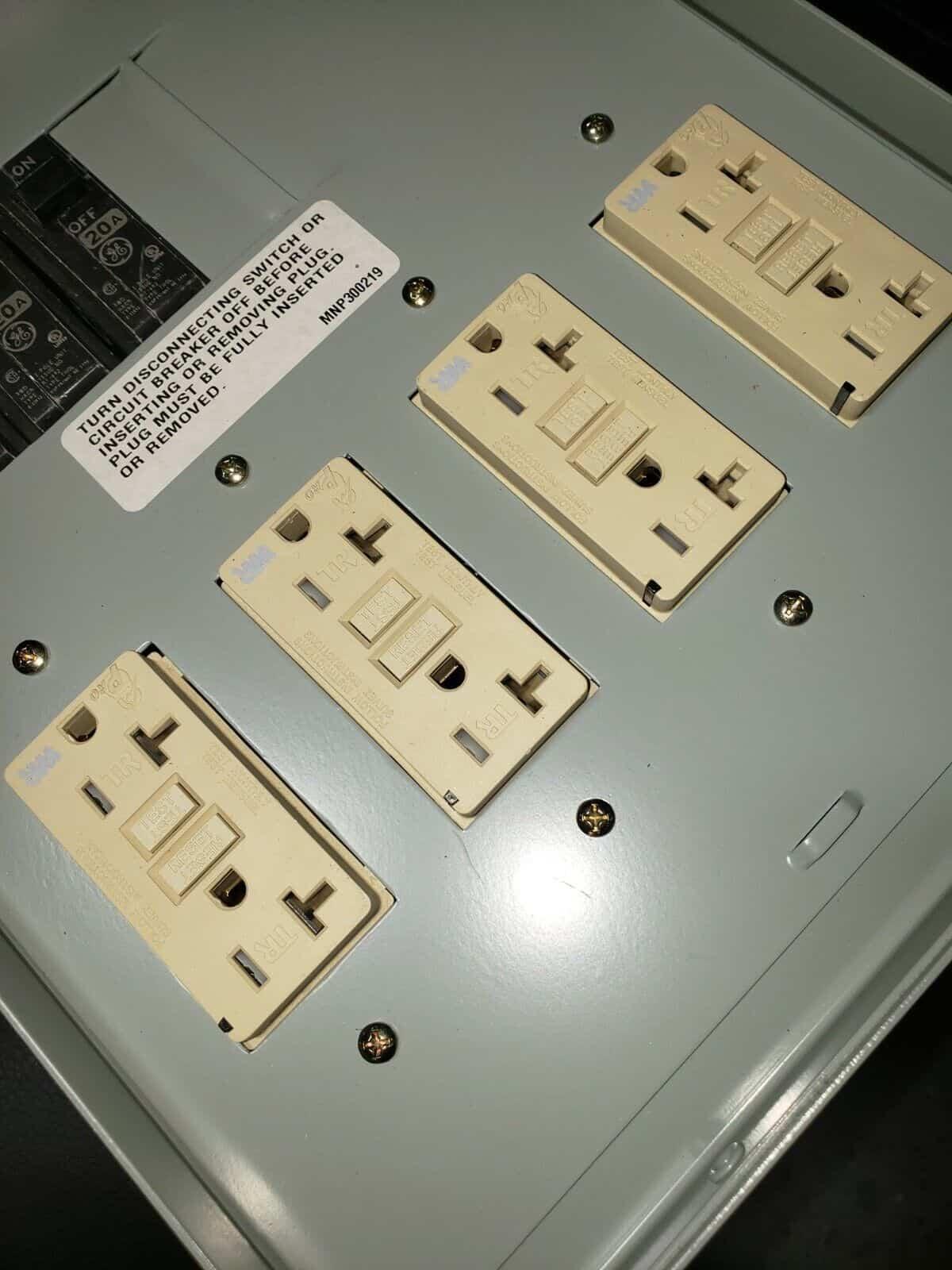

- Two receptacles 5-20R2GFI on the left side, two center position receptacle 5-20R2GFI, right position receptacle 5-20R2GFI
Product Specifications
| UPC: | 78456720308 |
| Second Position Circuit Breaker Type: | CB120 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch W x 5-1/5 Inch D x 17 Inch H; Mounting Surface |
| Catalog Number: | U014C010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | 5-20R2GFCI |
| Center Position Receptacle Type: | 5-20R2GFCI |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS TEMPORARY POWER AND POWER OUTLETS ARE A MEANS OF PROVIDING POWER REQUIRED BY VARIOUS CONSTRUCTION TRADES, RESIDENTIAL SITES, AND MOBILE ELECTRICAL APPLICATIONS. TEMPORARY POWER AND POWER OUTLETS OFFER ONE OR MORE RECEPTACLES, WITH OR WITHOUT OVERCURRENT PROTECTION, DISCONNECTING, METERING, AND/OR PEDESTAL MOUNTING FUNCTIONS, IN A SINGLE ENCLOSURE OF G-90 ZINC-COATED STEEL. THE NEMA 3R RAINPROOF ENCLOSURE IS LOCKABLE AND ENGINEERED TO PROVIDE MAXIMUM PROTECTION AGAINST WEATHER, VANDALISM, AND NORMAL FIELD USE. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB120 First Position Circuit Breaker Type; 5-20R2GFCI Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacl |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U014C010 100A SURFACE UNMETERED (4) 20A GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567203080 |
MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Underground Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Underground Feed
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010U 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567302172 |
| LOOP LUG: | No |
Product Description
Constructed of G90 galvanized steel, this metered 50/30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed. Approved for use in Canada.
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC55N1T load center
- Suitable for service equipment
- GFCI duplex receptacle options
Product Specifications
| UPC: | 784567565584 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | M075C010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075C010 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RT-123, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567565584 |
| Loop Lug: |
No |
Recently viewed products
Midwest Unmetered RV Surface Boxes – Simple, Reliable Power for Every Site
When metering isn’t required, Midwest Unmetered RV Surface Boxes provide a straightforward, dependable solution for delivering power to RVs, mobile homes, or marina slips. Designed for surface mounting on a post, pole, or building, these compact units combine Midwest’s trusted durability with easy installation and long-term reliability.
Constructed with heavy-duty, galvanized steel enclosures, these surface boxes are built to withstand harsh outdoor environments. With a range of 30-amp, 50-amp, and combination receptacle options, Midwest unmetered units make it simple to provide safe, code-compliant power hookups at any site.
Why Choose Midwest Unmetered RV Surface Boxes?
-
Simple & Cost-Effective – No metering required, just safe and reliable power delivery.
-
Durable Construction – Galvanized steel with weather-resistant coatings for long-lasting performance.
-
Flexible Options – Choose from 30A, 50A, or combination receptacle setups.
-
Surface-Mounted Design – Easily installs on posts, poles, or building surfaces.
-
Trusted Brand – Midwest is the industry leader in RV park and campground electrical equipment.
Reliable Power Without the Extras
For sites that don’t require metering, Midwest Unmetered RV Surface Boxes deliver exactly what you need: safe, durable, and efficient power distribution. Perfect for campgrounds, marinas, mobile home lots, and more, these units are built to perform for years with minimal upkeep.
Browse our collection of Midwest unmetered RV surface boxes today and find the right model for your property.
