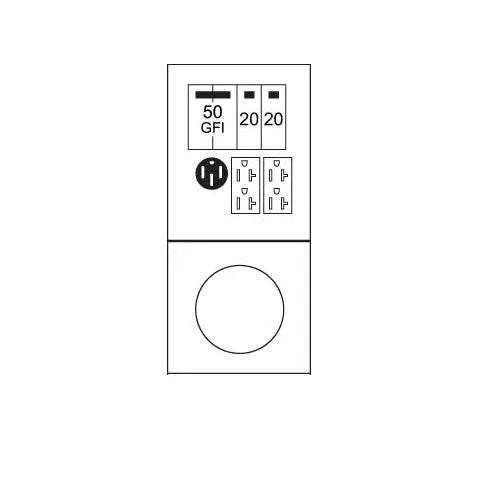

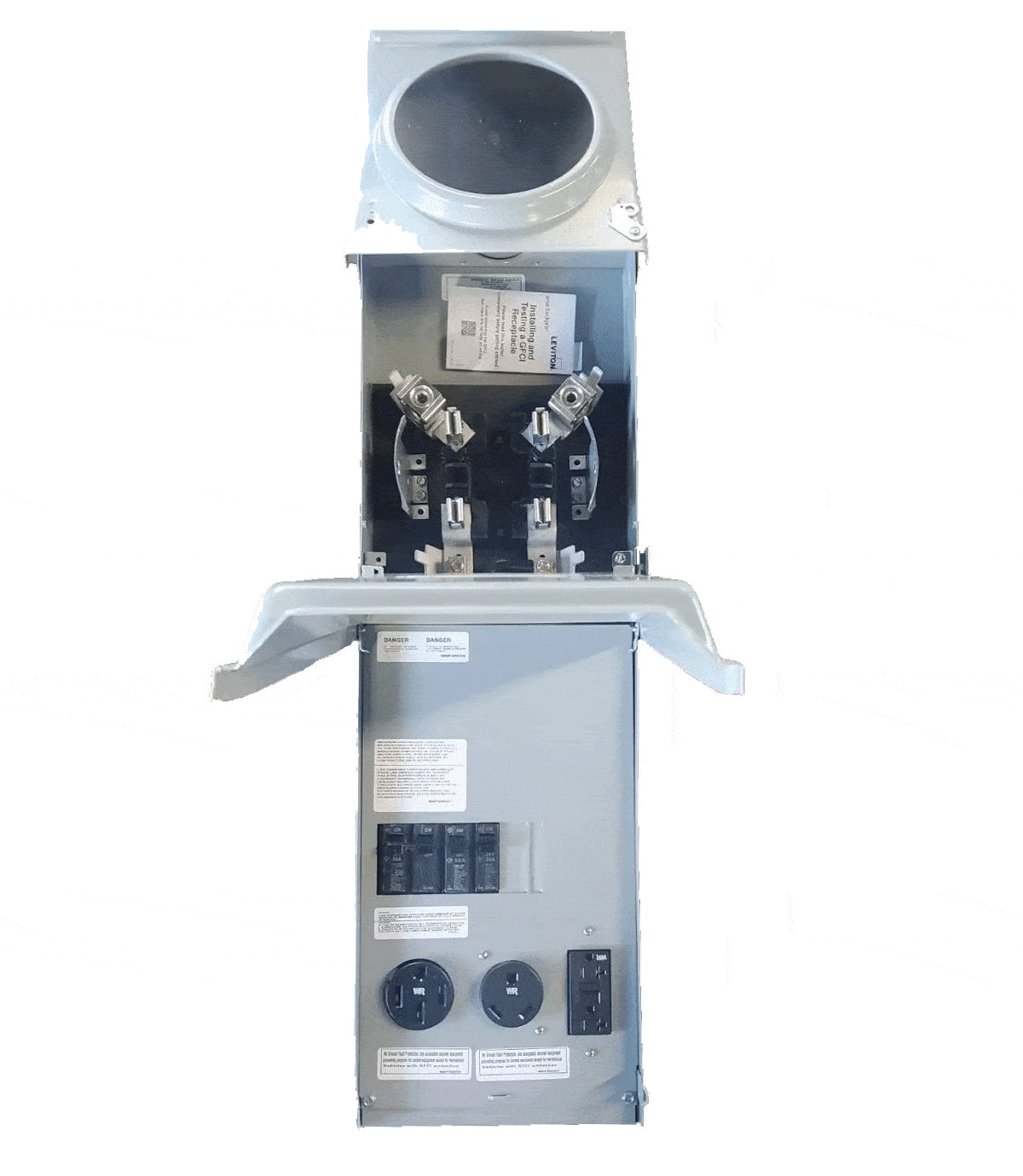

MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Overhead Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567301731 |
| LOOP LUG: | No |

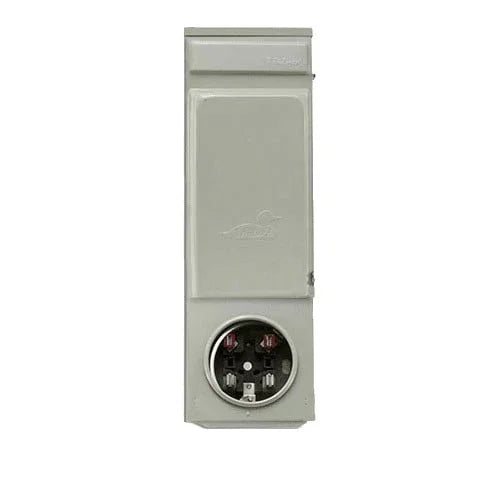

MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Underground Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Underground Feed
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010U 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567302172 |
| LOOP LUG: | No |

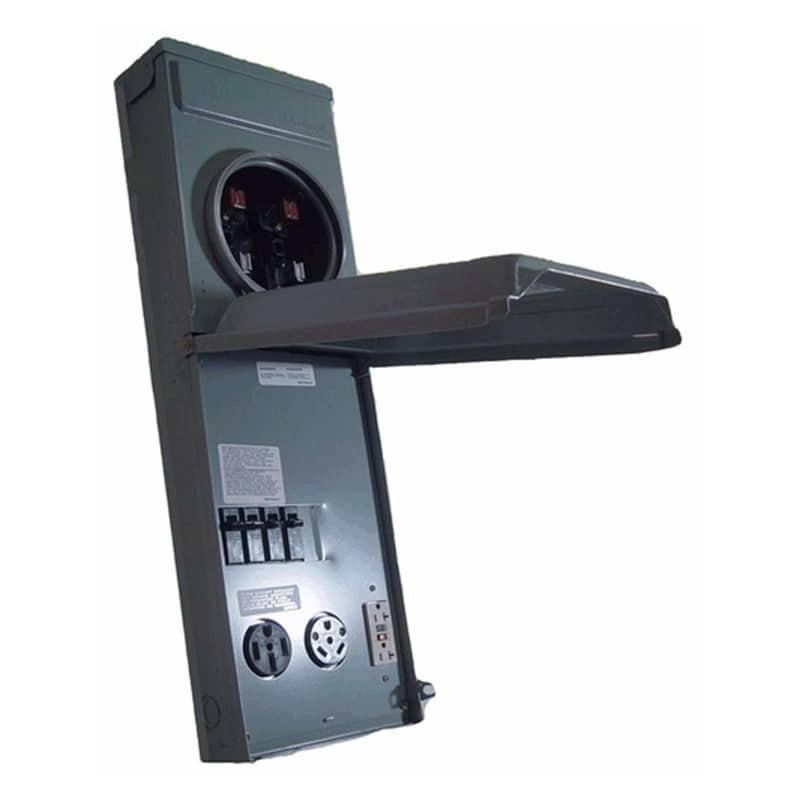

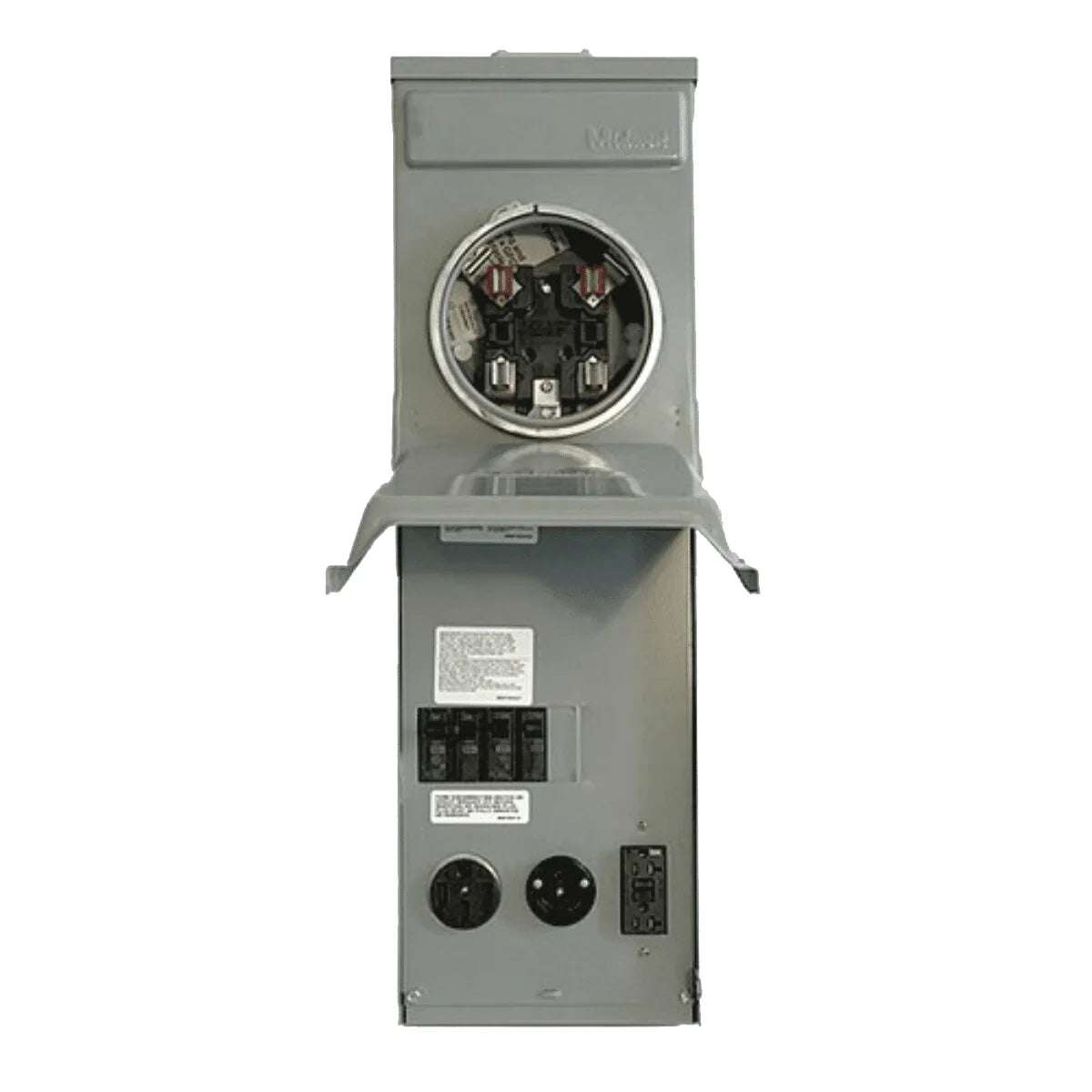

Product Description
Constructed of G90 galvanized steel, this metered 50/30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed. Approved for use in Canada.
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC55N1T load center
- Suitable for service equipment
- GFCI duplex receptacle options
Product Specifications
| UPC: | 784567565584 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | M075C010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075C010 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RT-123, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567565584 |
| Loop Lug: |
No |
Recently viewed products
Metered RV Surface Boxes – Reliable Power with Built-In Usage Tracking
For RV parks, campgrounds, and marinas that need accurate electricity monitoring, Metered RV Surface Boxes are the ideal solution. Designed for surface mounting on posts or walls, these units combine secure power distribution with integrated metering, making it simple to track and bill electricity usage for each site.
Built from heavy-duty, weather-resistant enclosures, these surface boxes are engineered to handle outdoor environments while keeping electrical components protected. With factory-installed kWh meters, breakers, and receptacles, they arrive ready to install and use right away.
Why Choose Metered RV Surface Boxes?
-
Built-In Metering – Easily monitor and bill for individual power usage.
-
Space-Saving Design – Mounts directly on a post, pole, or building surface.
-
Heavy-Duty Construction – Durable, weatherproof enclosures for long-lasting performance.
-
Flexible Configurations – Available in 30-amp, 50-amp, and combination receptacle options.
-
Trusted for Commercial Sites – Perfect for RV parks, campgrounds, marinas, and mobile home communities.
Accurate Power Management Made Easy
With a Metered RV Surface Box, you get a compact, efficient, and reliable way to deliver electricity while keeping usage transparent for both owners and guests. Whether you’re upgrading existing sites or outfitting new ones, these boxes ensure safe, code-compliant, and revenue-protecting installations.
Browse our full selection of metered RV surface boxes today and find the perfect fit for your property.
