The Eaton ACD60RT is a 60 amp non-fusible replacement pullout for Eaton air conditioning disconnects. Use it to replace a lost or damaged pullout block, or to keep a spare on the truck for service calls.
This is the pullout device only; it does not include an enclosure.
Key Features
- 60A non-fusible pullout block
- Replacement part for Eaton AC disconnects
- Pullout device only, no enclosure
- Individually packaged for resale
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton ACD60RT

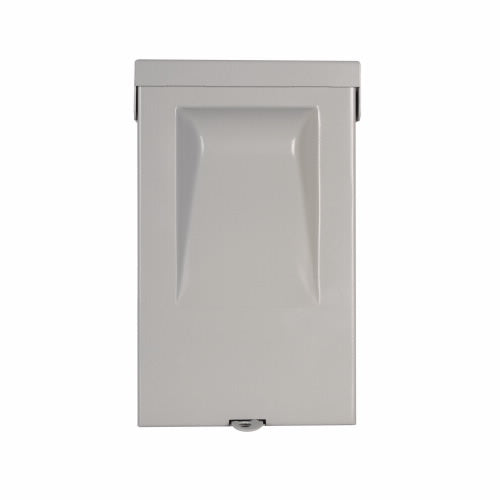

The Eaton DPU222RT is a 60 amp non-fusible air conditioning disconnect with a pullout design. It provides the within-sight disconnecting means for HVAC condensers and heat pumps where overcurrent protection is handled by the upstream breaker.
The galvanized steel NEMA 3R enclosure is finished in ANSI 61 gray for outdoor mounting.
Key Features
- 60A non-fusible pullout disconnect, 120/240V
- Rated 3 hp at 120V, 10 hp at 240V
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPU222RT

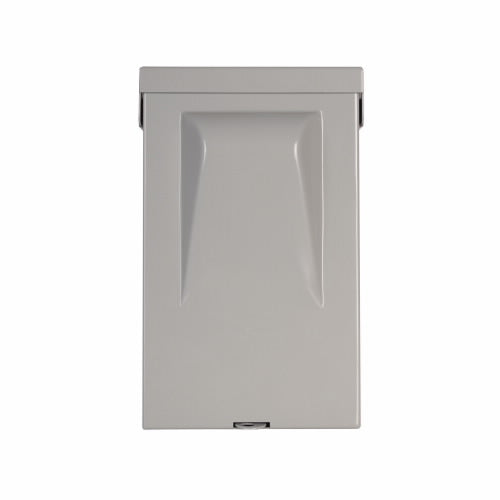

The Eaton DPF221RT is a 30 amp fusible air conditioning disconnect with a pullout design, giving HVAC equipment the required within-sight disconnecting means and fuse protection in one box.
The galvanized steel NEMA 3R enclosure is finished in ANSI 61 gray for outdoor mounting next to the condenser.
Key Features
- 30A fusible pullout disconnect, 120/240V
- Rated 1.5 hp at 120V, 3 hp at 240V
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire (60°C or 75°C)
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPF221RT

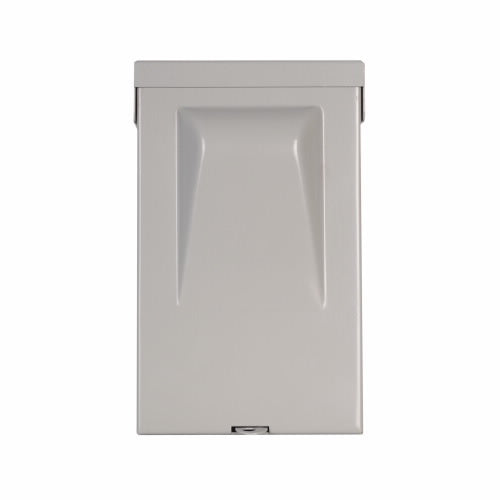

The Eaton DPF222RT is a 60 amp fusible air conditioning disconnect with a pullout design, giving HVAC equipment the required within-sight disconnecting means and fuse protection in one box.
The galvanized steel NEMA 3R enclosure is finished in ANSI 61 gray for outdoor mounting next to the condenser.
Key Features
- 60A fusible pullout disconnect, 120/240V
- Rated 3 hp at 120V, 10 hp at 240V
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire (60°C or 75°C)
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPF222RT
Eaton 60 Amp Non-Fused AC Disconnect with 15A GFCI Self-Test Receptacle – DPU222RGF15WTST
Eaton 60 Amp Non-Fused AC Disconnect with 15A GFCI Self-Test Receptacle – DPU222RGF15WTST
The Eaton DPU222RGF15WTST pairs a 60 amp non-fused air conditioning disconnect with a built-in 15 amp weather- and tamper-resistant GFCI self-test receptacle. One box provides the within-sight HVAC disconnect and the service receptacle required near outdoor and rooftop equipment.
Galvanized steel NEMA 3R enclosure in ANSI 61 gray.
Key Features
- 60A non-fused pullout disconnect, 120/240V
- Integrated 15A WR/TR GFCI self-test service receptacle
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
Manufacturer spec sheet: Eaton DPU222RGF15WTST
Eaton 60 Amp Non-Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPU222RGF20WTST
Eaton 60 Amp Non-Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPU222RGF20WTST
The Eaton DPU222RGF20WTST pairs a 60 amp non-fused air conditioning disconnect with a built-in 20 amp weather- and tamper-resistant GFCI self-test receptacle. One box provides the within-sight HVAC disconnect and the service receptacle required near outdoor and rooftop equipment.
Galvanized steel NEMA 3R enclosure.
Key Features
- 60A non-fused pullout disconnect, 120/240V
- Integrated 20A WR/TR GFCI self-test service receptacle
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure
Manufacturer spec sheet: Eaton DPU222RGF20WTST
Eaton 30 Amp Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPF221RGF20WTST
Eaton 30 Amp Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPF221RGF20WTST
The Eaton DPF221RGF20WTST combines a 30 amp fused air conditioning disconnect with a built-in 20 amp weather- and tamper-resistant GFCI self-test receptacle. It gives HVAC equipment its within-sight disconnect and fuse protection while providing the service receptacle the code requires near rooftop and outdoor equipment, in one box and one install.
Galvanized steel NEMA 3R enclosure in ANSI 61 gray.
Key Features
- 30A fused pullout disconnect, 120/240V
- Integrated 20A WR/TR GFCI self-test service receptacle
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPF221RGF20WTST

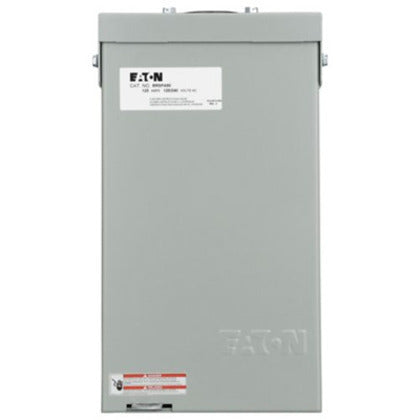

The Eaton BRSPA50 is a 50 amp outdoor spa panel that provides the GFCI protection and within-sight disconnect required for hot tubs and spas. A factory-installed 50A 2-pole GFCI breaker (BRN250GF) protects the spa, and two additional circuit spaces let you add a light, pump, or other outdoor load from the same panel.
The powder-coated galvanized steel NEMA 3R enclosure is built for outdoor mounting near the spa.
Key Features
- Factory-installed 50A 2-pole GFCI breaker (BRN250GF)
- Two additional circuit spaces for extra outdoor loads
- Serves as the required within-sight spa disconnect
- Single phase, 120/240V
- Powder-coated galvanized steel, NEMA 3R outdoor enclosure
- UL Listed
Manufacturer spec sheet: Eaton BRSPA50
The Eaton BRSPA60 is a 60 amp outdoor spa panel that provides the GFCI protection and within-sight disconnect required for hot tubs and spas. A factory-installed 60A 2-pole GFCI breaker (BRN260GF) protects the spa, and two additional circuit spaces let you add a light, pump, or other outdoor load from the same panel.
The powder-coated galvanized steel NEMA 3R enclosure is built for outdoor mounting near the spa.
Key Features
- Factory-installed 60A 2-pole GFCI breaker (BRN260GF)
- Two additional circuit spaces for extra outdoor loads
- Serves as the required within-sight spa disconnect
- Single phase, 120/240V
- Powder-coated galvanized steel, NEMA 3R outdoor enclosure
- UL Listed
Manufacturer spec sheet: Eaton BRSPA60
Midwest 240V Spa Panel GFCI Box / Disconnect - Up to 60A Load - UG412RMW260
Midwest 240V Spa Panel GFCI Box / Disconnect - Up to 60A Load - UG412RMW260
- For 3 or 4-wire 240V spa hookups
- 60A GFCI circuit breaker included
- 2 Slots for 120V branch breakers (sold separately)
MIDWEST GS3161G 1-Phase Light Duty Transfer Switch, 120/240 VAC, 100 A
MIDWEST GS3161G 1-Phase Light Duty Transfer Switch, 120/240 VAC, 100 A
Manual Type; 9 Inch; 15 Inch; 5 Inch; 12 AWG to 1/0 kcmil Wire Size; UL, CUL Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; 10000 Ampere Short Circuit Rating; 100 Ampere Emergency Current Rating; 100 Ampere Main Current Rating
| Features & Benefits: |
|
|---|
Product Specifications
| UPC: | 78456770040 |
| Width: | 9 Inch |
| Depth: | 5 Inch |
| Application: | Generator |
| Approval: | UL, CUL |
| Additional Information: | Cabinet Size 18 Inch x 43 Inch |
| Catalog Number: | GS3161G |
| Type: | Manual |
| Voltage Rating: | 120/240 VAC 1-Phase |
| Main Current Rating: | 100 Ampere |
| Emergency Current Rating: | 100 Ampere |
| Short Circuit Rating: | 10000 Ampere |
| Wire Size: | 12 AWG to 1/0 KCMIL |
| Height: | 15 Inch |
| CATALOG DESCRIPTION: | SINGLE PHASE 120/240 VOLTS AC |
| Category: | Non-Fusible Double Throw Safety Switches |
| Full Technical Description: | Manual Type; 9 Inch; 15 Inch; 5 Inch; 12 AWG to 1/0 kcmil Wire Size; UL, CUL Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; 10000 Ampere Short Circuit Rating; 100 Ampere Emergency Current Rating; 100 Ampere Main Current Rating; Cabinet Size 18 Inch X 43 Inch |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST GS3161G GD SWITCH 100/100A 2P 120/240V ALU |
| Sub-Category: | Transfer Switch |
| UNSPSC: | 39122214 |
| UPC 12 Digit: | 784567700404 |
Eaton 200 Amp Ringless Meter Breaker, 8 Spaces / 16 Circuits, Type BR – MB816B200BTS
Eaton 200 Amp Ringless Meter Breaker, 8 Spaces / 16 Circuits, Type BR – MB816B200BTS
The Eaton MB816B200BTS is a 200 amp all-in-one residential meter breaker that combines a ringless 4-jaw meter socket, a 200A main breaker, and an 8-space / 16-circuit Type BR distribution section in one outdoor enclosure. It's well suited to new homes, shops, barns, and site services.
Top or bottom feed with feed-through lugs, aluminum bus, and a NEMA 3R surface-mount enclosure.
Key Features
- 200A main breaker (CSR2200)
- Ringless 4-jaw, single meter socket
- 8 spaces / 16 circuits for Type BR breakers
- Top or bottom feed with feed-through lugs
- NEMA 3R surface mount, 120/240V single phase
- UL Listed
Manufacturer spec sheet: Eaton MB816B200BTS
Eaton 200 Amp EUSERC Meter Breaker, 8 Spaces / 8 Circuits, Type CH – CMBE88B200BTS
Eaton 200 Amp EUSERC Meter Breaker, 8 Spaces / 8 Circuits, Type CH – CMBE88B200BTS
The Eaton CMBE88B200BTS is a 200 amp EUSERC-approved meter breaker for utilities that require EUSERC equipment. It combines a 4-jaw meter socket, a 200A main breaker, and an 8-space / 8-circuit Type CH distribution section in one outdoor enclosure.
Overhead or underground feed, aluminum bus, and a NEMA 3R surface-mount enclosure.
Key Features
- 200A main breaker (CSR2200N)
- EUSERC approved
- 4-jaw, single meter socket
- 8 spaces / 8 circuits for Type CH breakers
- Overhead or underground feed, 22 kAIC
- NEMA 3R surface mount, 120/240V single phase
- UL Listed
Manufacturer spec sheet: Eaton CMBE88B200BTS

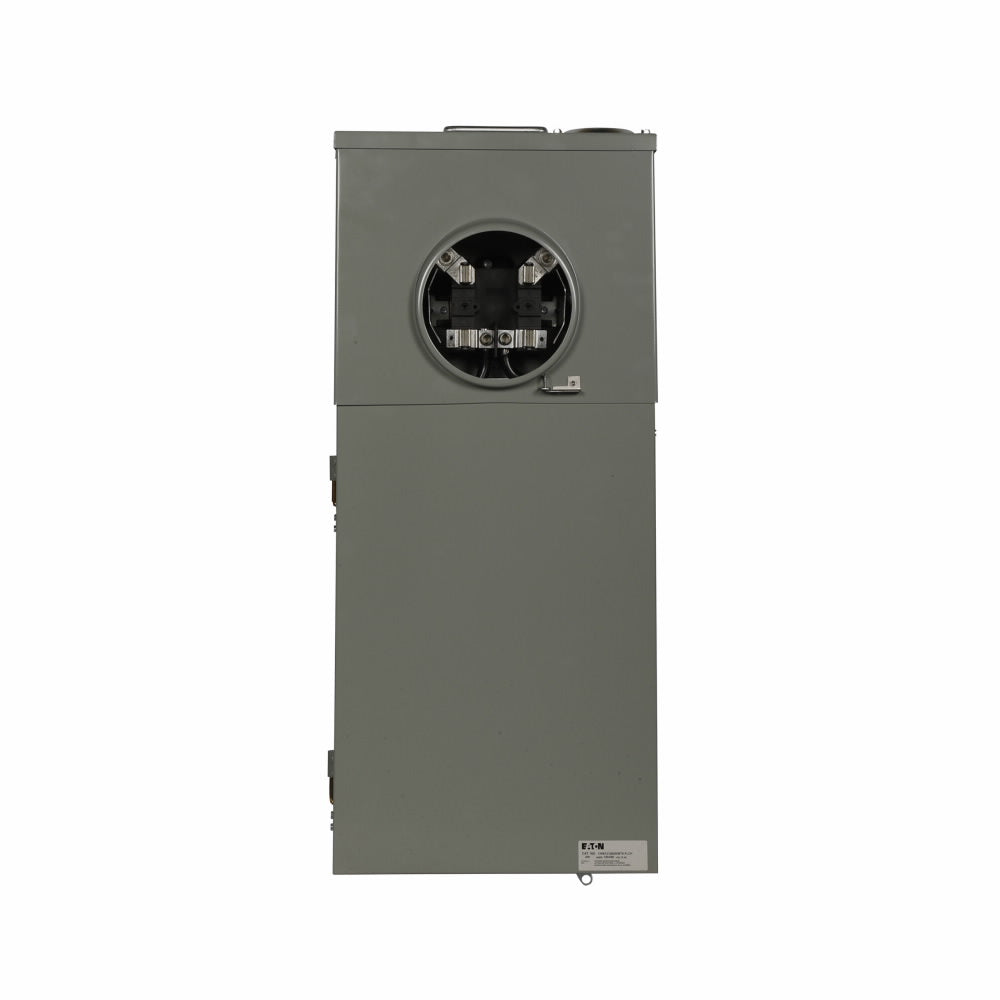

Eaton 200 Amp Ringless Meter Breaker, 12 Spaces / 12 Circuits, Type CH – CMB1212B200BTS
Eaton 200 Amp Ringless Meter Breaker, 12 Spaces / 12 Circuits, Type CH – CMB1212B200BTS
The Eaton CMB1212B200BTS is a 200 amp all-in-one residential meter breaker that combines a ringless 4-jaw meter socket, a 200A main breaker, and a 12-space / 12-circuit Type CH distribution section in one outdoor enclosure. It's a clean solution for new homes, barns, shops, and site services where you want metering, main disconnect, and branch circuits at the meter.
Copper bus, top or bottom feed, feed-through lugs, and a NEMA 3R surface-mount enclosure.
Key Features
- 200A main breaker (CSR2200)
- Ringless 4-jaw, single meter socket
- 12 spaces / 12 circuits for Type CH breakers
- Copper bus, 22 kAIC
- Top or bottom feed with feed-through lugs
- NEMA 3R surface mount, 120/240V single phase
- UL Listed
Manufacturer spec sheet: Eaton CMB1212B200BTS
Technical Description:
Manual Type; 13 Inch; 26 Inch; 6-3/4 Inch; 12 AWG to 1/0 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating
Features & Benefits:
|
Midwest GE GS3262G 3-Phase Light Duty Transfer Switch, 120/240/600 VAC, 200 A
Midwest GE GS3262G 3-Phase Light Duty Transfer Switch, 120/240/600 VAC, 200 A
Technical Description:
Manual Type; 16 Inch; 30 Inch; 8-1/2 Inch; 2 AWG to 600 kcmil Wire Size; UL, CUL Approval; Generator Application; 240 VAC 3-Phase Voltage Rating; 10000 Ampere Short Circuit Rating; 200 Ampere Emergency Current Rating; 200 Ampere Main Current Rating
Features & Benefits:
|
Technical Description:
Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating
Features & Benefits:
|
