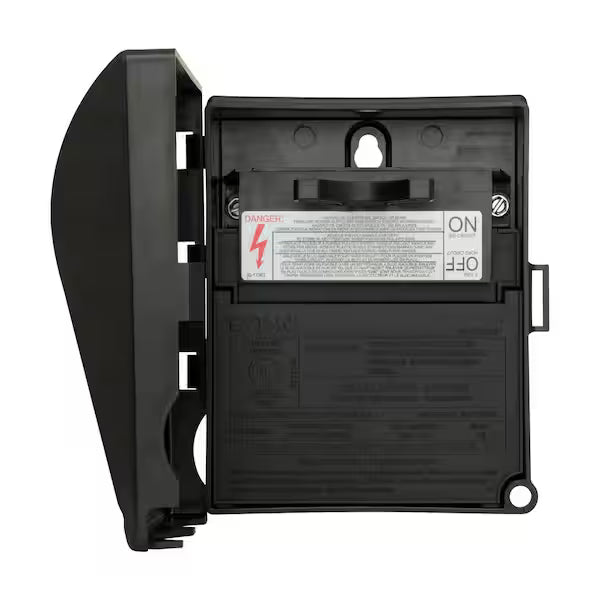

The Eaton ACD60RT is a 60 amp non-fusible replacement pullout for Eaton air conditioning disconnects. Use it to replace a lost or damaged pullout block, or to keep a spare on the truck for service calls.
This is the pullout device only; it does not include an enclosure.
Key Features
- 60A non-fusible pullout block
- Replacement part for Eaton AC disconnects
- Pullout device only, no enclosure
- Individually packaged for resale
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton ACD60RT
The Eaton DPU222RT is a 60 amp non-fusible air conditioning disconnect with a pullout design. It provides the within-sight disconnecting means for HVAC condensers and heat pumps where overcurrent protection is handled by the upstream breaker.
The galvanized steel NEMA 3R enclosure is finished in ANSI 61 gray for outdoor mounting.
Key Features
- 60A non-fusible pullout disconnect, 120/240V
- Rated 3 hp at 120V, 10 hp at 240V
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPU222RT

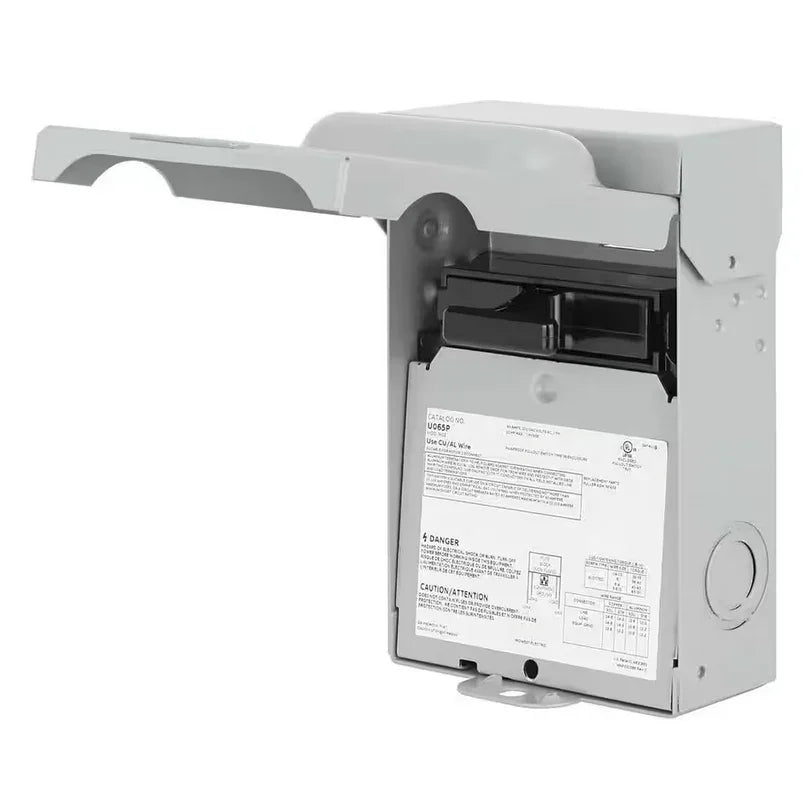

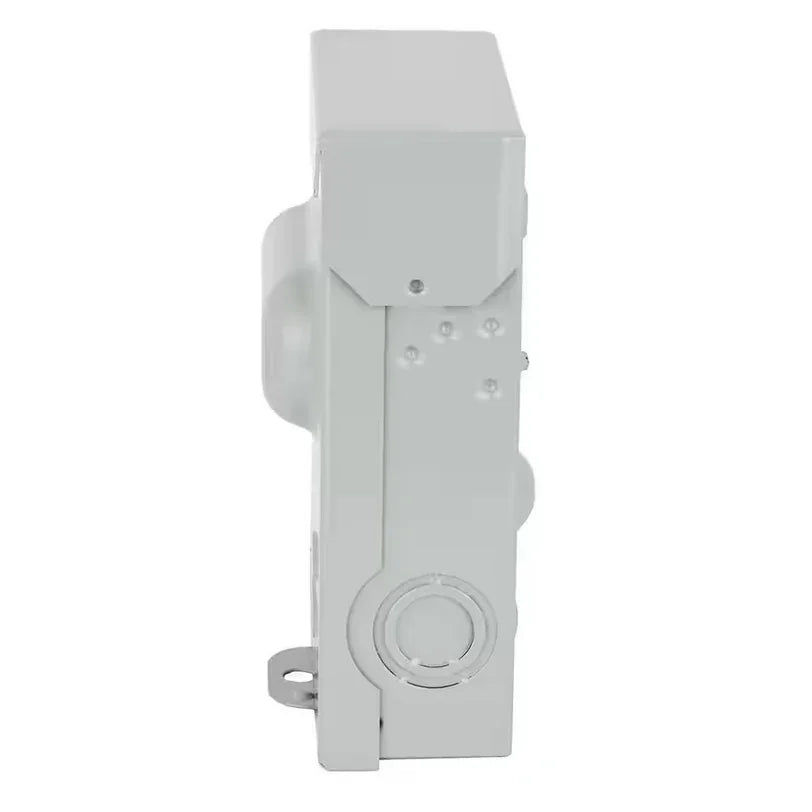

Midwest U065P 60A General Duty Acd Non-Fused 10Hp Steel N3R
Technical Description:
Air Conditioner Disconnect, Pull Out Type; 5 Inch Width X 2-1/8 Inch Depth X 7-1/4 Inch Height Size; Polyester Powder Coated G90 Galvanized Steel, Metallic Enclosure Material; UL (Canada and Us), CUL Approval; 120/240 Volt AC 1-Phase Voltage Rating
UPC: 78456730003
Part Number: U065P
The Eaton DPF221RT is a 30 amp fusible air conditioning disconnect with a pullout design, giving HVAC equipment the required within-sight disconnecting means and fuse protection in one box.
The galvanized steel NEMA 3R enclosure is finished in ANSI 61 gray for outdoor mounting next to the condenser.
Key Features
- 30A fusible pullout disconnect, 120/240V
- Rated 1.5 hp at 120V, 3 hp at 240V
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire (60°C or 75°C)
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPF221RT
The Eaton DPF222RT is a 60 amp fusible air conditioning disconnect with a pullout design, giving HVAC equipment the required within-sight disconnecting means and fuse protection in one box.
The galvanized steel NEMA 3R enclosure is finished in ANSI 61 gray for outdoor mounting next to the condenser.
Key Features
- 60A fusible pullout disconnect, 120/240V
- Rated 3 hp at 120V, 10 hp at 240V
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire (60°C or 75°C)
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPF222RT
Mounts directly to the top of your RV pedestal or surface box and casts 360° downward light automatically — no timers, no switches. The built-in dusk-to-dawn sensor turns the light on at sunset and off at sunrise. UL listed for wet locations with a UV-resistant textured finish that holds up to weather and coastal/marina exposure.
- Automatic dusk-to-dawn photocell — no manual switching
- 360° downward light coverage
- UL listed for wet locations
- UV-resistant textured polyester finish
- Available in 3-tier or 4-tier pagoda styles, Black or Green
- Kit includes: hub, nipple, bushing, photocell, and A19 LED bulb
- Bulb: A19-9.5-E26-6CCT-D2D — 9.5W, E26 base, selectable 6CCT color temp
Eaton 60 Amp Non-Fused AC Disconnect with 15A GFCI Self-Test Receptacle – DPU222RGF15WTST
Eaton 60 Amp Non-Fused AC Disconnect with 15A GFCI Self-Test Receptacle – DPU222RGF15WTST
The Eaton DPU222RGF15WTST pairs a 60 amp non-fused air conditioning disconnect with a built-in 15 amp weather- and tamper-resistant GFCI self-test receptacle. One box provides the within-sight HVAC disconnect and the service receptacle required near outdoor and rooftop equipment.
Galvanized steel NEMA 3R enclosure in ANSI 61 gray.
Key Features
- 60A non-fused pullout disconnect, 120/240V
- Integrated 15A WR/TR GFCI self-test service receptacle
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
Manufacturer spec sheet: Eaton DPU222RGF15WTST

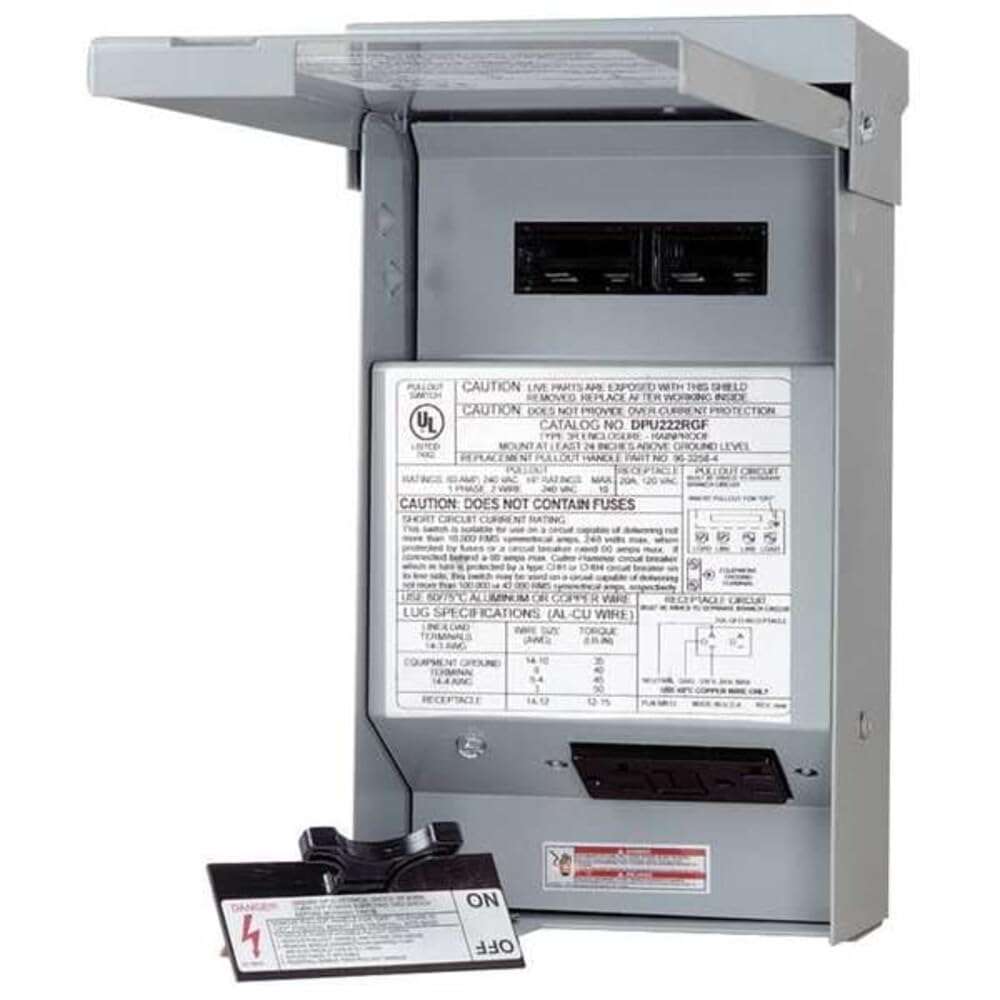

Eaton 60 Amp Non-Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPU222RGF20WTST
Eaton 60 Amp Non-Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPU222RGF20WTST
The Eaton DPU222RGF20WTST pairs a 60 amp non-fused air conditioning disconnect with a built-in 20 amp weather- and tamper-resistant GFCI self-test receptacle. One box provides the within-sight HVAC disconnect and the service receptacle required near outdoor and rooftop equipment.
Galvanized steel NEMA 3R enclosure.
Key Features
- 60A non-fused pullout disconnect, 120/240V
- Integrated 20A WR/TR GFCI self-test service receptacle
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure
Manufacturer spec sheet: Eaton DPU222RGF20WTST
Eaton 30 Amp Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPF221RGF20WTST
Eaton 30 Amp Fused AC Disconnect with 20A GFCI Self-Test Receptacle – DPF221RGF20WTST
The Eaton DPF221RGF20WTST combines a 30 amp fused air conditioning disconnect with a built-in 20 amp weather- and tamper-resistant GFCI self-test receptacle. It gives HVAC equipment its within-sight disconnect and fuse protection while providing the service receptacle the code requires near rooftop and outdoor equipment, in one box and one install.
Galvanized steel NEMA 3R enclosure in ANSI 61 gray.
Key Features
- 30A fused pullout disconnect, 120/240V
- Integrated 20A WR/TR GFCI self-test service receptacle
- 10 kAIC short-circuit rating
- Accepts #14-3 AWG Cu/Al wire
- Galvanized steel NEMA 3R enclosure, ANSI 61 gray
- UL Listed, CSA Certified
Manufacturer spec sheet: Eaton DPF221RGF20WTST

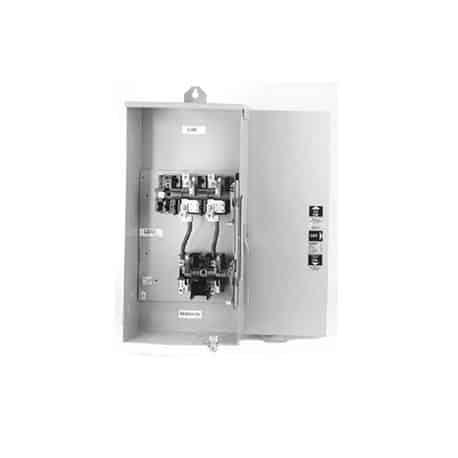

MIDWEST GS3161G 1-Phase Light Duty Transfer Switch, 120/240 VAC, 100 A
MIDWEST GS3161G 1-Phase Light Duty Transfer Switch, 120/240 VAC, 100 A
Manual Type; 9 Inch; 15 Inch; 5 Inch; 12 AWG to 1/0 kcmil Wire Size; UL, CUL Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; 10000 Ampere Short Circuit Rating; 100 Ampere Emergency Current Rating; 100 Ampere Main Current Rating
| Features & Benefits: |
|
|---|
Product Specifications
| UPC: | 78456770040 |
| Width: | 9 Inch |
| Depth: | 5 Inch |
| Application: | Generator |
| Approval: | UL, CUL |
| Additional Information: | Cabinet Size 18 Inch x 43 Inch |
| Catalog Number: | GS3161G |
| Type: | Manual |
| Voltage Rating: | 120/240 VAC 1-Phase |
| Main Current Rating: | 100 Ampere |
| Emergency Current Rating: | 100 Ampere |
| Short Circuit Rating: | 10000 Ampere |
| Wire Size: | 12 AWG to 1/0 KCMIL |
| Height: | 15 Inch |
| CATALOG DESCRIPTION: | SINGLE PHASE 120/240 VOLTS AC |
| Category: | Non-Fusible Double Throw Safety Switches |
| Full Technical Description: | Manual Type; 9 Inch; 15 Inch; 5 Inch; 12 AWG to 1/0 kcmil Wire Size; UL, CUL Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; 10000 Ampere Short Circuit Rating; 100 Ampere Emergency Current Rating; 100 Ampere Main Current Rating; Cabinet Size 18 Inch X 43 Inch |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST GS3161G GD SWITCH 100/100A 2P 120/240V ALU |
| Sub-Category: | Transfer Switch |
| UNSPSC: | 39122214 |
| UPC 12 Digit: | 784567700404 |
Technical Description:
Manual Type; 13 Inch; 26 Inch; 6-3/4 Inch; 12 AWG to 1/0 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating
Features & Benefits:
|
Midwest GE GS3262G 3-Phase Light Duty Transfer Switch, 120/240/600 VAC, 200 A
Midwest GE GS3262G 3-Phase Light Duty Transfer Switch, 120/240/600 VAC, 200 A
Technical Description:
Manual Type; 16 Inch; 30 Inch; 8-1/2 Inch; 2 AWG to 600 kcmil Wire Size; UL, CUL Approval; Generator Application; 240 VAC 3-Phase Voltage Rating; 10000 Ampere Short Circuit Rating; 200 Ampere Emergency Current Rating; 200 Ampere Main Current Rating
Features & Benefits:
|
Technical Description:
Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating
Features & Benefits:
|
Midwest 400 Amp Ringless All-In-One Load Center House Panel – 8/8 Distribution, 120/240V
Midwest 400 Amp Ringless All-In-One Load Center House Panel – 8/8 Distribution, 120/240V
Product Description
400 Amp All-In-One House Panel with Lever Bypass, Ringless, 4 Jaws, 1-Phase, 120/240V, 22 kAIC, 8/8 Distribution, Main Breaker Type, UG Service, NEMA 3R - Rainproof Enclosure, Surface Mount Includes: (2) 200A Main Breakers
Midwest 400 Amp Ring Type All-In-One Load Center House Panel – 8/8 Distribution, 120/240V
Midwest 400 Amp Ring Type All-In-One Load Center House Panel – 8/8 Distribution, 120/240V
400 Amp All-In-One House Panel with Lever Bypass, Ring Type, 4 Jaws, 1-Phase, 120/240V, 22 kAIC, 8/8 Distribution, Main Breaker Type, UG Service, NEMA 3R - Rainproof Enclosure, Surface Mount Includes: (2) 200A Main Breakers
MADE TO ORDER — NON-RETURNABLE, NON-REFUNDABLE.
This item is manufactured specifically for your order and cannot be returned or refunded after purchase.
NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING.
