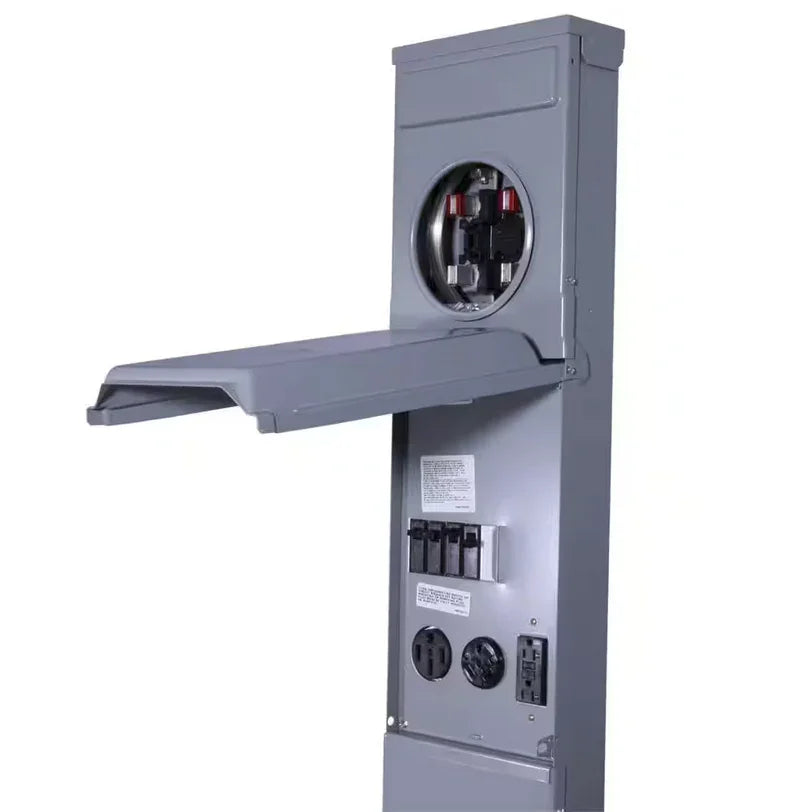

MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Overhead Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567301731 |
| LOOP LUG: | No |

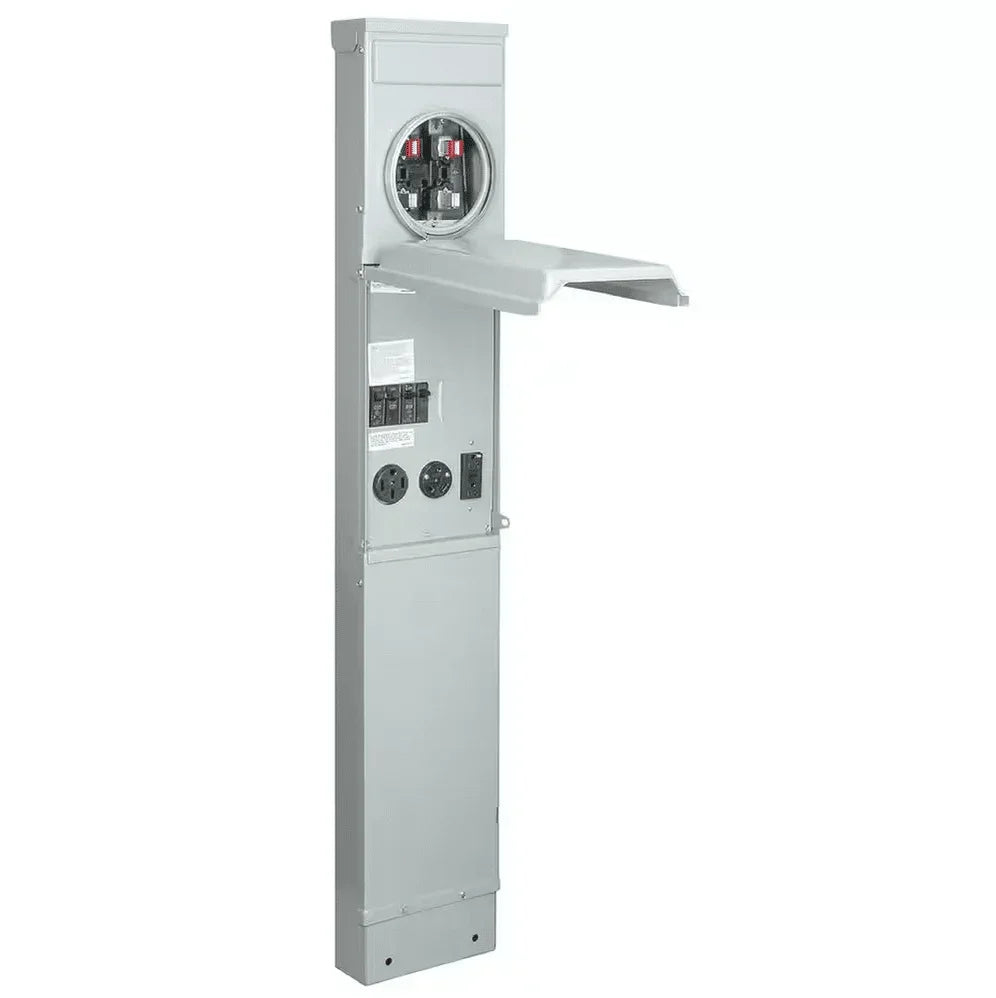

MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Underground Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Underground Feed
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010U 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567302172 |
| LOOP LUG: | No |
9Our metered 50-30-20 Ringless RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Pad Mounting; NEMA 3R Enclosure
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- RINGLESS meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Pad Mount
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Pad Mounting; NEMA 3R Enclosure
Product Specifications
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075CP4010 100A POST 50/30/20GFCI |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567208122 |
| Unique Product Key: | 6006335 |

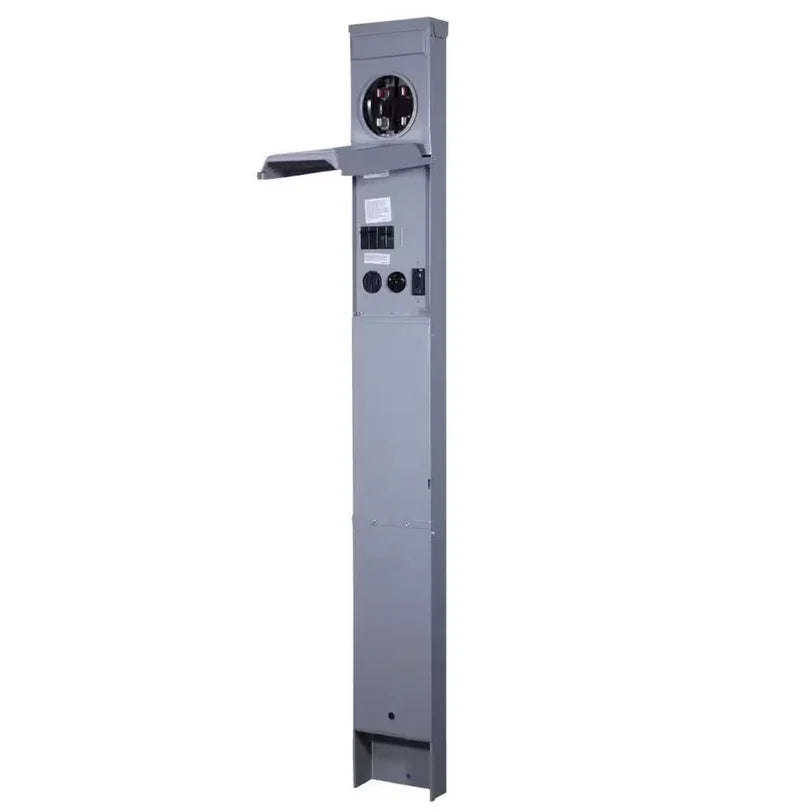

RING TYPE Pad Mount 50 amp, 30 amp & 20 amp Metered RV Pedestal - M075CP4010
RING TYPE Pad Mount 50 amp, 30 amp & 20 amp Metered RV Pedestal - M075CP4010
Our metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- Ring type meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Pad Mount - Unit is non returnable
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Product Specifications
| UPC: | 784567205039 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Pad |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CP4010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Meter Socket & Metering Accessories |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Pad Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075CP4010 100A POST 50/30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567205039 |
| Unique Product Key: | 5952766 |

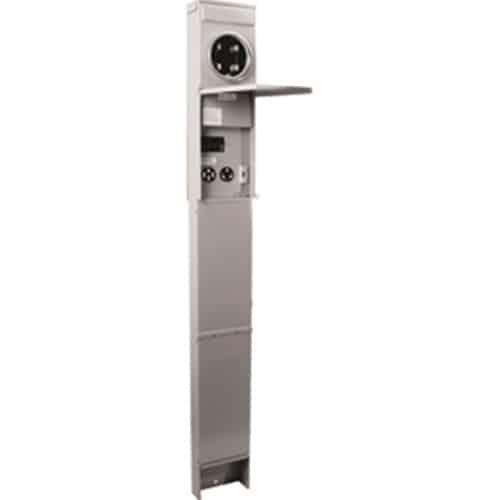

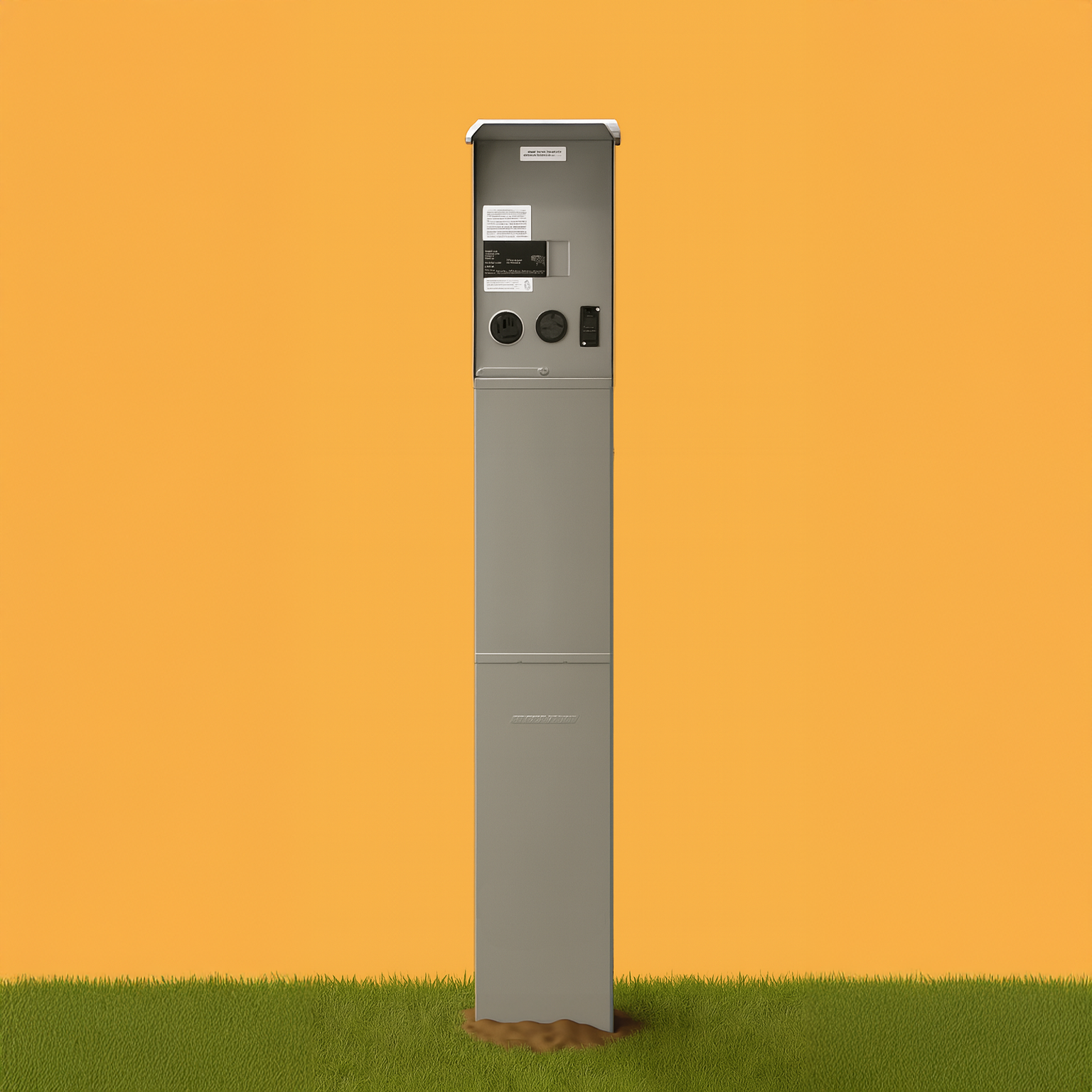

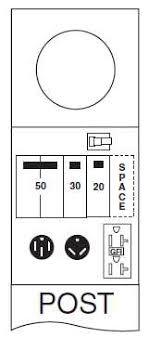

RING TYPE - 50 amp, 30 amp & 20 amp Metered RV Pedestal M075CP6010 - Direct Bury
RING TYPE - 50 amp, 30 amp & 20 amp Metered RV Pedestal M075CP6010 - Direct Bury
Our metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- Ring type meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Meters not included*
- Pad lockable unit
- Direct bury
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Product Specifications
| UPC: | 784567565515 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CP6010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075CP6010 100A POST 50/30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Cross Reference: |
GE1LM532ES, 26-RT-123, MH75P-3 |
| UPC 12 Digit: | 784567565515 |

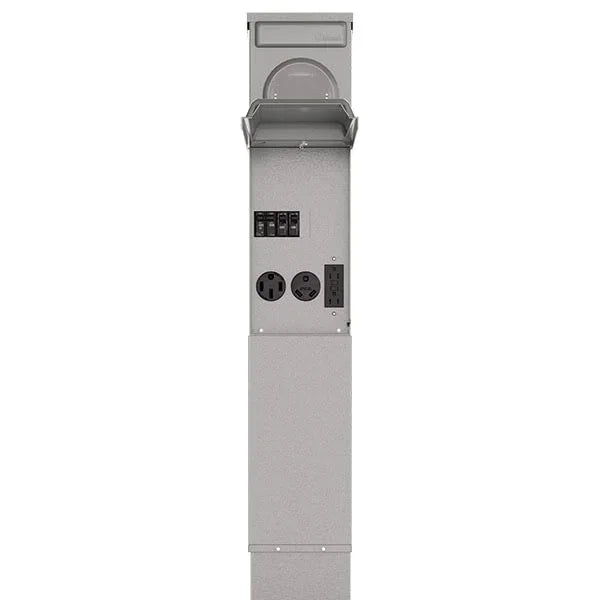

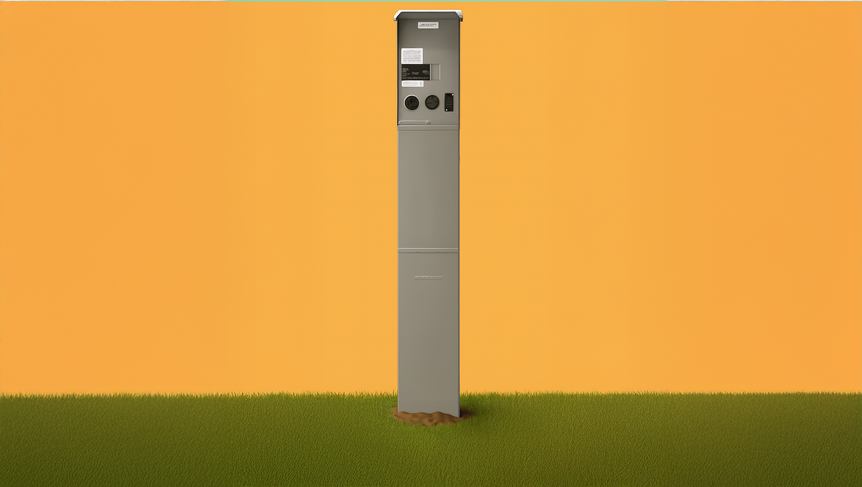

RINGLESS 50-30-20 Metered GFCI RV Pedestal - Direct Bury - R075CP6010
RINGLESS 50-30-20 Metered GFCI RV Pedestal - Direct Bury - R075CP6010
Our metered 50-30-20 Ringless RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- RINGLESS meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Meters not included*
- Direct bury
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
Product Specifications
| UPC: | 784567204827 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | R075CP6010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075CP6010 100A POST 50/30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Cross Reference: |
GE1LM532ES, RH75P-3, 26-RL-123 |
| UPC 12 Digit: | 784567204827 |
Our 30/20 metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- Ring-Type meter cover
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury and pad mounted options available
- Breakers: (1) 2-Pole 50 Amp, (1) 1-Pole 30 Amp, (1) 1-Pole 20 Amp.
Technical Description:
Metered Ring Type; G90 Galvanized Steel Material; Durable Polyester Powder Coated Finish; 1 AWG to 300 kcmil (Copper/Aluminum, Post Line Connectors Suitable For Loop Feed), 12 to 2 AWG (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Mounting
| UPC: | 78456756506 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL (Copper/Aluminum, Post Line Connectors Suitable for Loop Feed), 12 to 2 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Durable Polyester Powder Coated |
| Mounting: | Earth |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9 Inch D x 77-1/2 Inch H |
| Catalog Number: | M041CP6010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB130 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Durable Polyester Powder Coated Finish; 1 AWG to 300 kcmil (Copper/Aluminum, Post Line Connectors Suitable For Loop Feed), 12 to 2 AWG (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9 Inch D X 77-1/2 Inch H |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M041CP6010 100A POST 30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Cross Reference: |
GE1LM032ES, 26-RT-23, MH41P-3 |
| UPC 12 Digit: | 784567565065 |
| Unique Product Key: | 5974992 |
Our metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Meter not included**
Meter not included**
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps (meter not included)
- With Photocell
- Ring type meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Product Specifications
| UPC: | 78456720884 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Illuminated: | Yes |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CP6L10 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; Yes Illuminated; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |

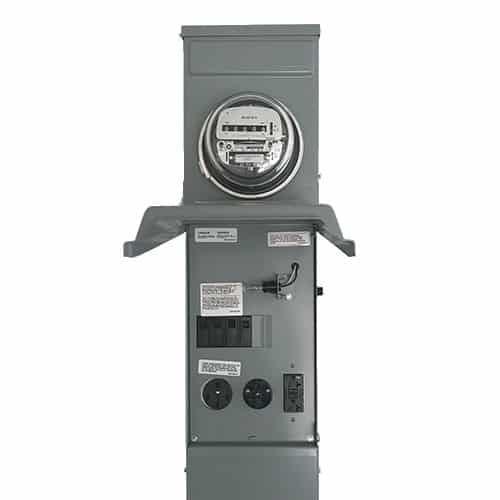

| Product Description: | MIDWEST M075CP6L10 100A POST 50/30/20GFCI LIGHTED |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567208849 |
| Unique Product Key: | 6006156 |

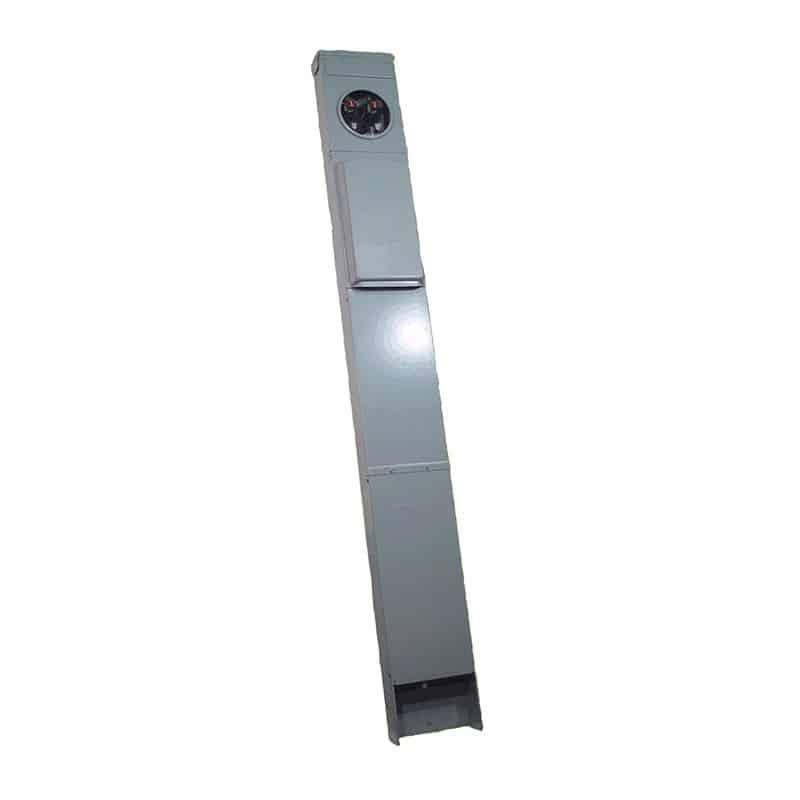

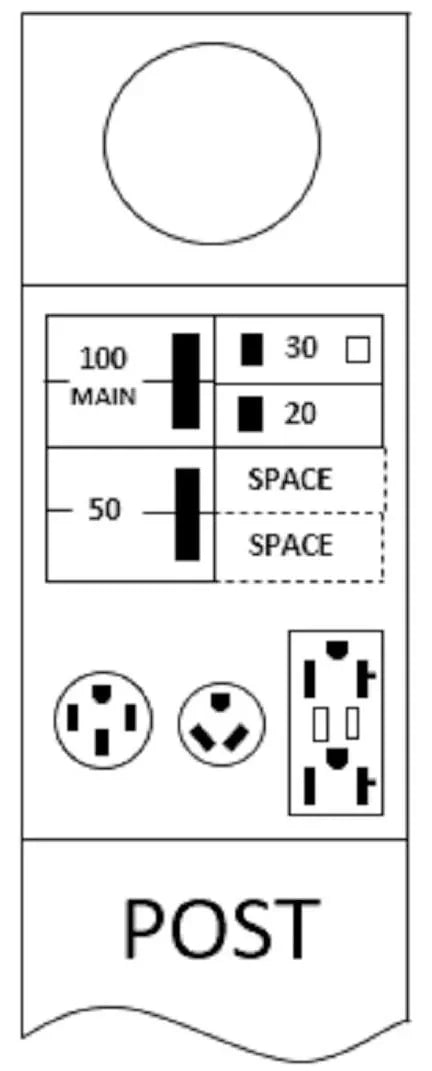

MEG APPROVED 50-30-20 RINGLESS Metered GFCI RV Pedestal - Direct Bury - R175MCP6010FMG
MEG APPROVED 50-30-20 RINGLESS Metered GFCI RV Pedestal - Direct Bury - R175MCP6010FMG
Our metered 50-30-20 Ringless RV pedestals are UL listed and MEG Approved as a RV supply service entrance unit. Perfect for any application in which requires MEG approval. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- MEG Approved
- RINGLESS meter socket
- 1oo amp main breaker
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Meters not included*
- Direct bury
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
30-20 amp GFCI RV Pedestal - Back to Back - Metered Ring Type - M041CB6010 Direct Bury
30-20 amp GFCI RV Pedestal - Back to Back - Metered Ring Type - M041CB6010 Direct Bury
Our metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Pedestals are lockable and engineered for maximum weather protection and longevity.
![]()
Midwest® GE Metered Power Outlet, Type RV Ring, 120/240 VAC, 100 A, 1 ph Phase, 50/30/20 GFCI Receptacle, CB250/CB130/CB120 Circuit Breaker, 6 AWG to 350 kcmil Wire, Underground Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Earth Burial Mount
RV Pedestal Features:
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
Midwest® GE Metered Power Outlet, Type RV Ring, 120/240 VAC, 100 A, 1 ph Phase, 50/30/20 GFCI Receptacle, CB250/CB130/CB120 Circuit Breaker, 6 AWG to 350 kcmil Wire, Underground Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Earth Burial Mount
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Manufacturer: | Midwest Electric Products, Inc. |
| Ring Type: | Ring Type |
| Product Description: | MIDWEST M041CB6010 100A BACK-TO-BACK POST 30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 23153407 |
| UPC 12 Digit: | 784567203677 |
| Unique Product Key: | 6635098 |
50-30-20 amp Ringless GFCI RV Pedestal R075CB6010 - Back to Back - Metered - Direct Bury
50-30-20 amp Ringless GFCI RV Pedestal R075CB6010 - Back to Back - Metered - Direct Bury
Our Ringless Metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Pedestals are lockable and engineered for maximum weather protection and longevity.
![]()
RV Pedestal Features:
-
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
| UPC: | 78456720800 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 AWG to 350 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Back to Back Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | R075CB6010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 AWG to 350 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | Midwest R075CB6010 100A Back-To-Back Post 50/30/20-GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Loop Lug: | Yes |
| UPC 12 Digit: | 784567208009 |
50-30-20 amp GFCI RV Pedestal M075CB6010 - Back to Back - Metered - Direct Bury
50-30-20 amp GFCI RV Pedestal M075CB6010 - Back to Back - Metered - Direct Bury
Our Ring Type Metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Pedestals are lockable and engineered for maximum weather protection and longevity.
![]()
RV Pedestal Features:
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
| UPC: | 784567202816 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 AWG to 350 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Back to Back Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CB6010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 AWG to 350 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075CB6010 100A BACK-TO-BACK POST 50/30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567202816 |
| Loop Lug |
Yes |
Recently viewed products
Collection details
Midwest Metered RV Pedestals – Reliable Power Distribution for Every Park
Upgrade your campground or RV park with Midwest Metered RV Pedestals, the trusted choice for accurate electric service and tenant billing. Built from heavy-duty, galvanized steel with NEMA 3R enclosures, these pedestals are engineered to handle tough outdoor conditions while delivering safe, consistent power. The factory-installed electric meters make it easy for park owners to track individual site usage, ensuring fair billing and improved energy management.
Designed for 240V service with multiple receptacle options (30A & 50A), Midwest metered pedestals are perfect for RV parks, marinas, and mobile home communities that demand durability and performance. With UL & CUL listings and industry-standard configurations, you can be confident in compliance and long-term reliability.
Whether you’re expanding your campground or replacing outdated equipment, Midwest metered RV pedestals offer the best balance of quality, safety, and value.
Key Benefits:
-
Accurate tenant billing with factory-installed meters
-
Rugged, weather-resistant NEMA 3R construction
-
Compatible with 30A & 50A RV hookups
-
UL/CUL listed for safety and compliance
-
Trusted brand with nationwide support
