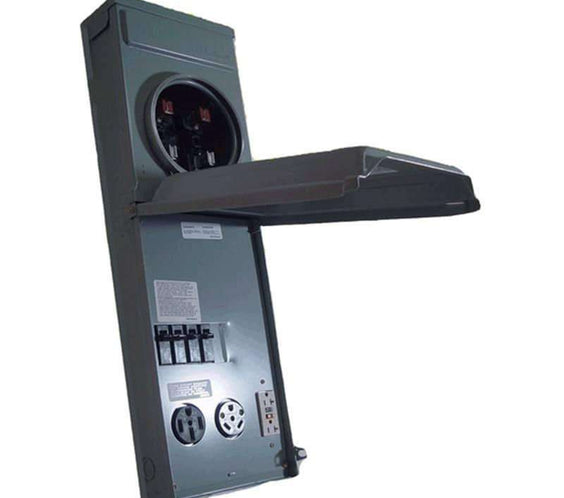

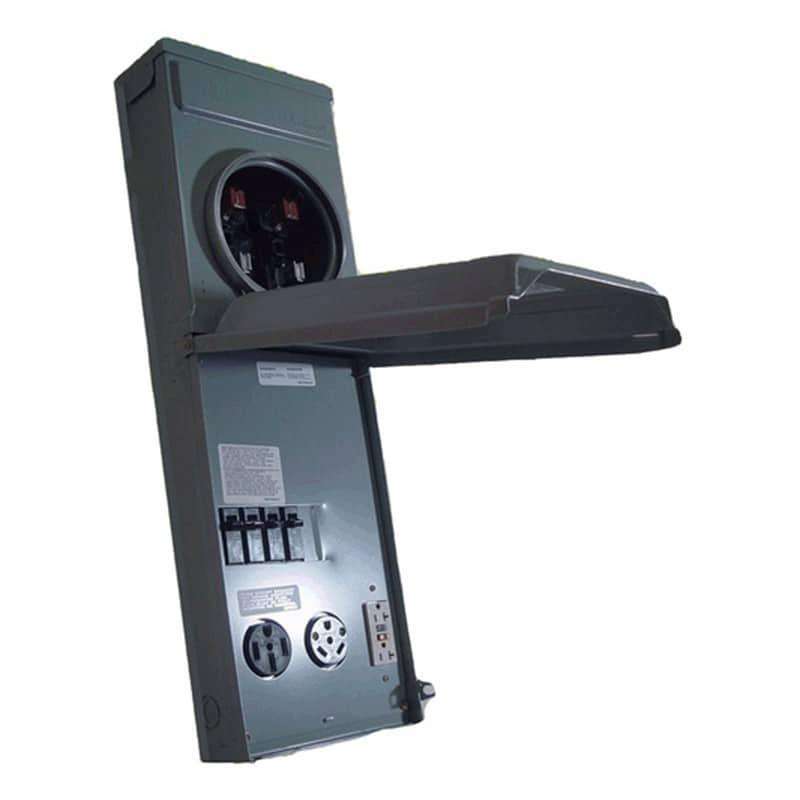

MIDWEST R075C010 100A SURFACE 50amp 30amp and 20amp GFCI Ringless - Metered
Estimated Delivery between June 07 and June 09.
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Overhead Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Overhead Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
For Us, Quality Matters
Authorized Distributor
Outdoorsiness is proud to be recognized as one of the Top Authorized Midwest Distributors, delivering trusted products backed by the reliability of the Midwest brand.
Nema 3R Enclosure
NEMA 3R electrical enclosures are compatible with outdoor applications and hold up to the most demanding conditions. Midwest produces top-quality RV Pedestals in a variety of types and configurations all meeting Nema 3R.
16-Gauge Galvenized
Midwest RV pedestals are constructed with 16-gauge galvanized zinc-coated steel to resist corrosion and fading, ensuring lasting service in outdoor environments.
UL & CUL Listed
UL Listed RV Pedestals indicates a product has been tested and certified to meet specific safety standards for the United States. "cUL" (Canadian UL) indicates that a product meets the Canadian safety standards based on Canadian Standards
Storage and handling
Reliability
Reliable RV Electrical Equipment You can Cout On
Certifications
UL Certified & #1 RV Electrical Equipment In The Industry!
Easy Install
All RV Pedestals Come Pre Wired And Ready To Install Out Of The Box. Breakers Included!
Weather Proof
WR Rating Outlets & Nema 3R Enclosure
