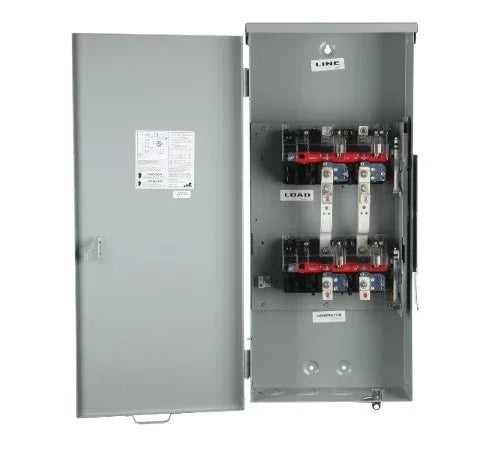

MIDWEST GS1202B20UL HD TRANSFER SWITCH 200/200A 2P 120/240V STE
Estimated Delivery between October 19 and October 21.
Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating
Features & Benefits:
|
Product Specifications
| UPC: | 78456720339 |
| Enclosure: | NEMA 3R |
| Height: | 35 Inch |
| Width: | 15-3/4 Inch |
| Depth: | 7 Inch |
| Application: | Generator |
| Approval: | UL (Canada and US) |
| Additional Information: | Cabinet Size 15 Inch x 35 Inch; Number of Poles 2; Material G90 Galvanized Steel; Finish Polyester Powder Coated; Includes 2 Inch Hub |
| Catalog Number: | GS1202B20UL |
| Type: | Manual |
| Voltage Rating: | 120/240 VAC 1-Phase |
| Main Current Rating: | 200 Ampere |
| Emergency Current Rating: | 200 Ampere |
| Short Circuit Rating: | 10000 Ampere |
| Wire Type: | Aluminum/Copper |
| Wire Size: | 6 AWG to 250 KCMIL |
| CATALOG DESCRIPTION: | SINGLE PHASE 120/240 VOLTS AC |
| Category: | Non-Fusible Double Throw Safety Switches |
| Full Technical Description: | Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating; 200 Ampere Emergency Current Rating; 200 Ampere Main Current Rating; Cabinet Size 15 Inch X 35 Inch; Number of Poles 2; Material G90 Galvanized Steel; Finish Polyester Powder Coated; Includes 2 Inch Hub |
| Manufacturer: | MIDWEST ELECTRIC PRODUCTS, INC. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST GS1202B20UL HD TRANSFER SWITCH 200/200A 2P 120/240V STE |
| Sub-Category: | Transfer Switch |
| UNSPSC: | 39122214 |
| UPC 12 Digit: | 784567203394 |
MIDWEST GS1202B20UL HD TRANSFER SWITCH 200/200A 2P 120/240V STE
Please Review Return Policy Here: Return Policy
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating
Features & Benefits:
|
Product Specifications
| UPC: | 78456720339 |
| Enclosure: | NEMA 3R |
| Height: | 35 Inch |
| Width: | 15-3/4 Inch |
| Depth: | 7 Inch |
| Application: | Generator |
| Approval: | UL (Canada and US) |
| Additional Information: | Cabinet Size 15 Inch x 35 Inch; Number of Poles 2; Material G90 Galvanized Steel; Finish Polyester Powder Coated; Includes 2 Inch Hub |
| Catalog Number: | GS1202B20UL |
| Type: | Manual |
| Voltage Rating: | 120/240 VAC 1-Phase |
| Main Current Rating: | 200 Ampere |
| Emergency Current Rating: | 200 Ampere |
| Short Circuit Rating: | 10000 Ampere |
| Wire Type: | Aluminum/Copper |
| Wire Size: | 6 AWG to 250 KCMIL |
| CATALOG DESCRIPTION: | SINGLE PHASE 120/240 VOLTS AC |
| Category: | Non-Fusible Double Throw Safety Switches |
| Full Technical Description: | Manual Type; 15-3/4 Inch; 35 Inch; 7 Inch; 6 AWG to 250 kcmil Wire Size; UL (Canada and Us) Approval; Generator Application; 120/240 VAC 1-Phase Voltage Rating; NEMA 3R Enclosure; Aluminum/Copper Wire Type; 10000 Ampere Short Circuit Rating; 200 Ampere Emergency Current Rating; 200 Ampere Main Current Rating; Cabinet Size 15 Inch X 35 Inch; Number of Poles 2; Material G90 Galvanized Steel; Finish Polyester Powder Coated; Includes 2 Inch Hub |
| Manufacturer: | MIDWEST ELECTRIC PRODUCTS, INC. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST GS1202B20UL HD TRANSFER SWITCH 200/200A 2P 120/240V STE |
| Sub-Category: | Transfer Switch |
| UNSPSC: | 39122214 |
| UPC 12 Digit: | 784567203394 |
For Us, Quality Matters
Free-range Turkey
Outdoorsiness is proud to be recognized as one of the Top Authorized Midwest Distributors, delivering trusted products backed by the reliability of the Midwest brand.
Nema 3R Enclosure
NEMA 3R electrical enclosures are compatible with outdoor applications and hold up to the most demanding conditions. Midwest produces top-quality RV Pedestals in a variety of types and configurations all meeting Nema 3R.
16-Gauge Galvenized
Midwest RV pedestals are constructed with 16-gauge galvanized zinc-coated steel to resist corrosion and fading, ensuring lasting service in outdoor environments.
UL & CUL Listed
UL Listed RV Pedestals indicates a product has been tested and certified to meet specific safety standards for the United States. "cUL" (Canadian UL) indicates that a product meets the Canadian safety standards based on Canadian Standards
Storage and handling
Reliability
Reliable RV Electrical Equipment You can Cout On
Certifications
UL Certified & #1 RV Electrical Equipment In The Industry!
Easy Install
All RV Pedestals Come Pre Wired And Ready To Install Out Of The Box. Breakers Included!
Weather Proof
WR Rating Outlets & Nema 3R Enclosure
