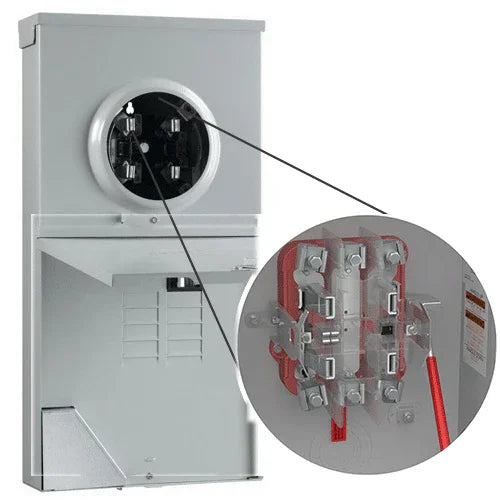

Lever Bypass R281CB1034 Midwest 200 Amp Manufactured Home Surface Panel- Ringless style
Estimated Delivery between October 17 and October 19.
Product Description
Product Specifications
| UPC: | 78456758816 |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W x 4-3/4 Inch D x 28-5/8 Inch H; Mounting Surface |
| Catalog Number: | R281CB1034 |
| Type: | Metered Ringless - BYPASS LEVER |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W X 4-3/4 Inch D X 28-5/8 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1034 200A SURFACE METERED 14X28 LEVER BYPASS |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567588163 |
Lever Bypass R281CB1034 Midwest 200 Amp Manufactured Home Surface Panel- Ringless style
Please Review Return Policy Here: Return Policy
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
Product Description
Product Specifications
| UPC: | 78456758816 |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W x 4-3/4 Inch D x 28-5/8 Inch H; Mounting Surface |
| Catalog Number: | R281CB1034 |
| Type: | Metered Ringless - BYPASS LEVER |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W X 4-3/4 Inch D X 28-5/8 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1034 200A SURFACE METERED 14X28 LEVER BYPASS |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567588163 |
For Us, Quality Matters
Free-range Turkey
Outdoorsiness is proud to be recognized as one of the Top Authorized Midwest Distributors, delivering trusted products backed by the reliability of the Midwest brand.
Nema 3R Enclosure
NEMA 3R electrical enclosures are compatible with outdoor applications and hold up to the most demanding conditions. Midwest produces top-quality RV Pedestals in a variety of types and configurations all meeting Nema 3R.
16-Gauge Galvenized
Midwest RV pedestals are constructed with 16-gauge galvanized zinc-coated steel to resist corrosion and fading, ensuring lasting service in outdoor environments.
UL & CUL Listed
UL Listed RV Pedestals indicates a product has been tested and certified to meet specific safety standards for the United States. "cUL" (Canadian UL) indicates that a product meets the Canadian safety standards based on Canadian Standards
Storage and handling
Reliability
Reliable RV Electrical Equipment You can Cout On
Certifications
UL Certified & #1 RV Electrical Equipment In The Industry!
Easy Install
All RV Pedestals Come Pre Wired And Ready To Install Out Of The Box. Breakers Included!
Weather Proof
WR Rating Outlets & Nema 3R Enclosure
