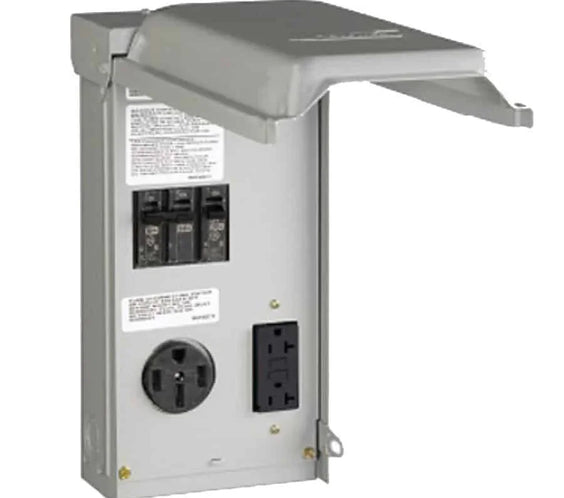

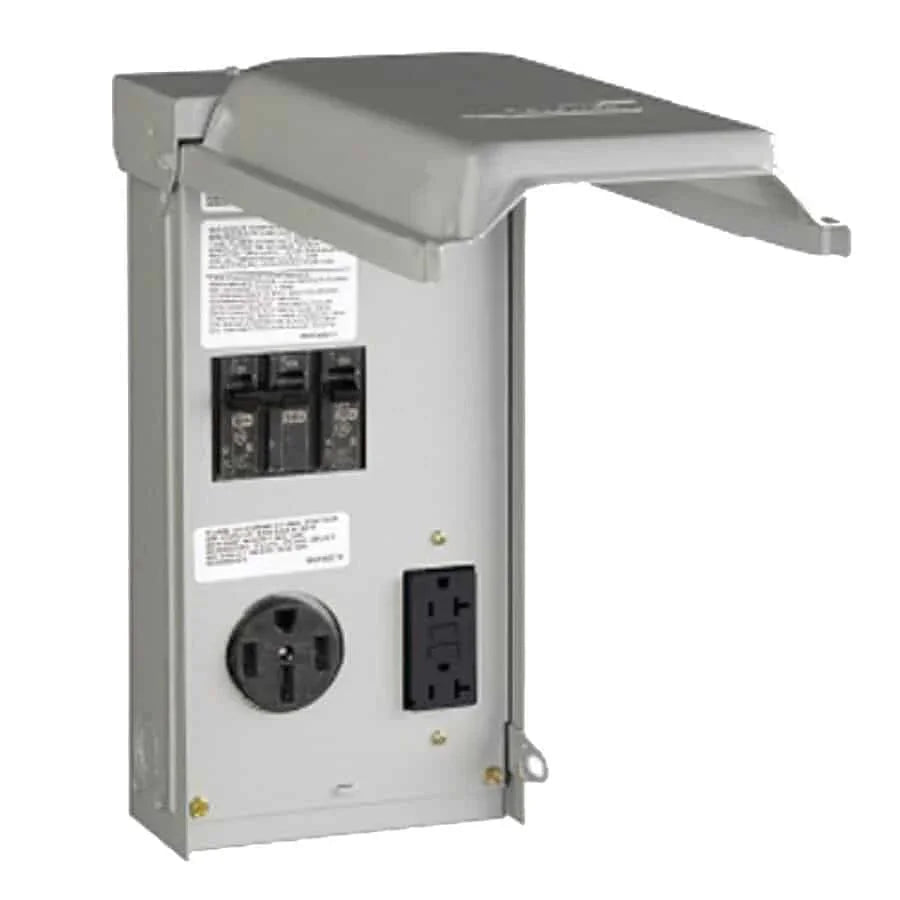

30/20 Unmetered RV Surface Box Outlet U041CTL010 - Loop Lug
Estimated Delivery between October 17 and October 19.
Product Description
Constructed of G90 galvanized steel, this 30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed and has loop-fed lugs. Approved for use in Canada.
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
- Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC33N7 load center
- Loop feed
- Suitable for service equipment
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish
| UPC: | 784567203011 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 17-3/8 Inch H; Mounting Surface |
| Catalog Number: | U041CTL010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB130 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 17-3/8 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U041CTL010 100A SURFACE 30/20GFCI TWIN LUGS |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 23153407 |
| UPC 12 Digit: | 784567203011 |
| Unique Product Key: | 6005879 |
