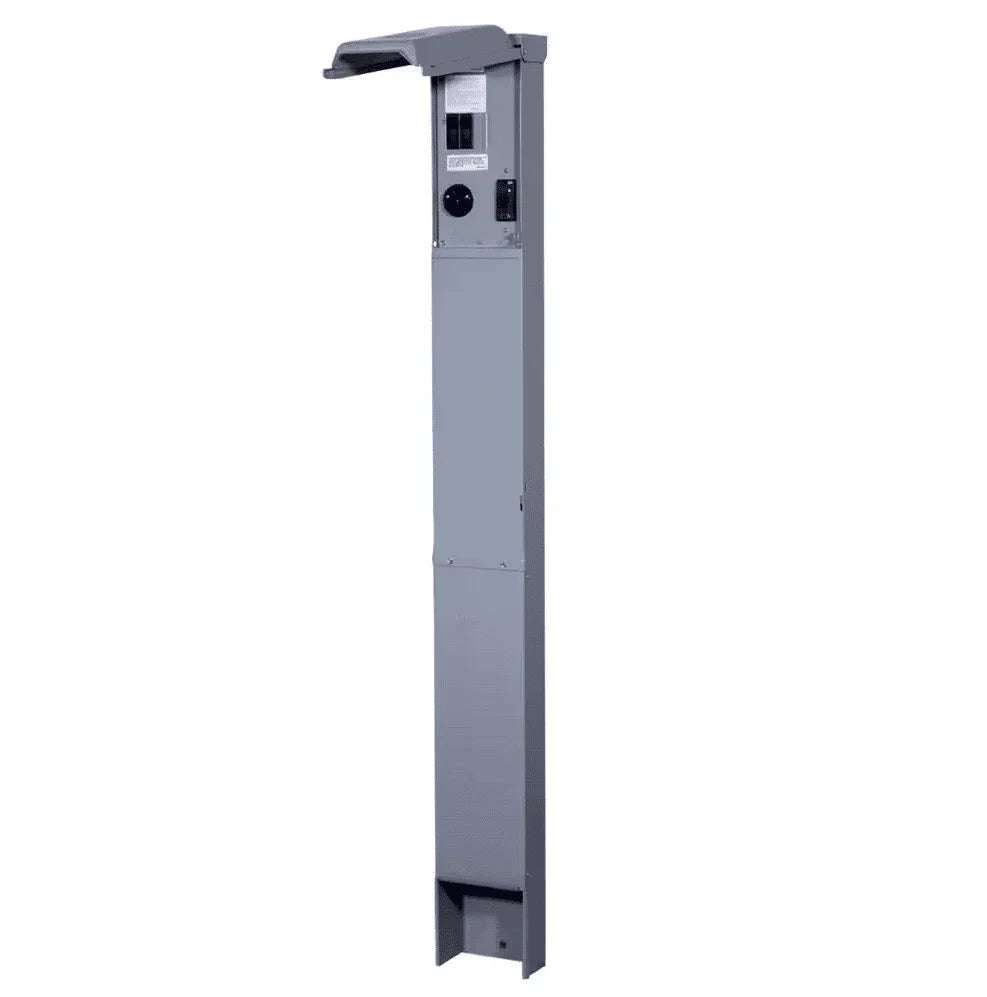

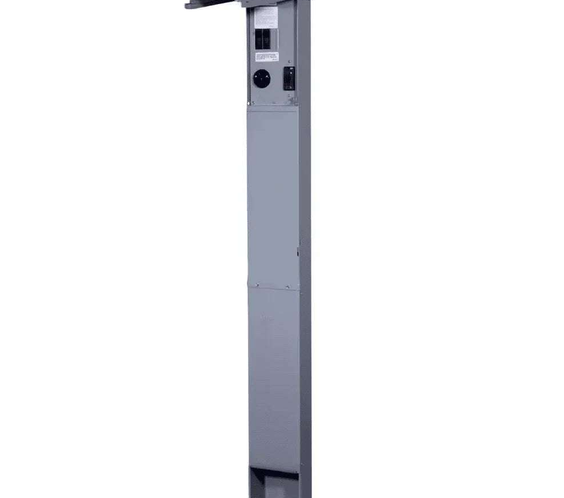

30-20 Unmetered RV pedestal U041CP6010 - Direct Bury

Sku: U041CP6010
$508.00 $305.00

Please Review Return Policy Here: Return Policy

Pay with

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your transaction is protected with advanced security measures to keep your information confidential

Product description
Reviews (16)
This RV pedestal is  UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service.  Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.


RV Pedestal Features:

  • Factory wired receptacles and breakers
  • Riveted steel, powder coated for longevity
  • Weather proof NEMA 3R and CSA enclosure 3R
  • Pad lockable unit
  • Direct bury and pad mounted options available



Technical Description:

Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 70 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V



Product Specifications

UPC:  78456756882
Third Position Circuit Breaker Type:  CB120
Wire Size:  1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground)
Material:  G90 Galvanized Steel
Finish:  Zinc Coated
Mounting:  Earth Burial
Enclosure:  NEMA 3R
Approval:  UL, CUL
Additional Information:  Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Catalog Number:  U041CP6010
Type:  Unmetered
Current Rating:  70 Ampere
Circuit Configuration:  1-Phase
Left Position Receptacle Type:  R32U
Right Position Receptacle Type:  5-20R2GFCI
First Position Circuit Breaker Type:  CB130
Second Position Circuit Breaker Type:  CB120
CATALOG DESCRIPTION:  MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS.
Category:  Unmetered Power Outlet Pedestals
Full Technical Description:  Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 70 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V
Manufacturer:  Midwest Electric Products, Inc.
Manufacturer Brand:  Midwest Electric Products, Inc.
Product Description:  MIDWEST U041CP6010 70A POST 30/20GFCI
Sub-Category:  Outdoor Pedestal Mount Power Outlet Panel
Loop Lug:  Yes
UPC 12 Digit:  784567568820
Cross Reference:
GE1LU032ES, H41P-5, 25-23

Customer Reviews

Based on 16 reviews
81%
(13)
19%
(3)
0%
(0)
0%
(0)
0%
(0)
S
Shadyside Campground
Review

Nice product, good price and ordering was easy.

M
Martin Hernandez
Review

Happy with the purchase, items were packaged well and we got free shipping!

D
Derek Russ
Review

I installed this under my grandmother's shelter in order to plug in the travel trailer. The existing electrical plug no longer worked due to a (presumably) cut burial wire. I really like the fact that there is built in room for expansion in the form of 2 breaker slots that are in addition to the breakers for the 30 amp & 20 amp plugs. I used one of these breaker slots to run 2 flood light in the shelter. A big upgrade from the 0 previous lights. This box is of solid construction. The one challenge I faced had to do with the top of the box. I wanted to bring a 1" conduit out of the top of the box. Unfortunately, this box is designed to allow only a 3" conduit to securely exit the top. Time to get creative. I drilled a hole in the metal cover, installed a threaded adapter fitting with locking nut, removed the bolt assembly that mounts the cover to the box & used silicone to secure the cover to the box. It worked quite nicely and as an added bonus, it is very weather resistant. I am not an electrician and I'm not sure if this modification is "ok" but it works for me. The pics of this modification may show the gloss of the clear silicone that I used to secure the metal cover to the box. The original mounting bolt with cross bar interfered with placement of the threaded fitting and had to be removed. My local Lowe's or electrical supply store did not sell any combination of reducers that could go from 3" down to 1" so I had to figure it out & this was the idea I came up with. I still highly recommend this temporary power panel.

C
Canadian guy
Review

What else can I say, all good

M
Macman747
Review

You're thinking "It would sure be nice to know the NEMA configurations of the receptacles." aren't ya? It has a NEMA 5-20R GFI duplex and a NEMA 5-30R non-GFI receptacle. Both are 120V and of the configuration that you would expect for an RV camp site.

For Us, Quality Matters

Free-range Turkey

Outdoorsiness is proud to be recognized as one of the Top Authorized Midwest Distributors, delivering trusted products backed by the reliability of the Midwest brand.

Nema 3R Enclosure

NEMA 3R electrical enclosures are compatible with outdoor applications and hold up to the most demanding conditions. Midwest produces top-quality RV Pedestals in a variety of types and configurations all meeting Nema 3R.

16-Gauge Galvenized

Midwest RV pedestals are constructed with 16-gauge galvanized zinc-coated steel to resist corrosion and fading, ensuring lasting service in outdoor environments.

UL & CUL Listed

UL Listed RV Pedestals indicates a product has been tested and certified to meet specific safety standards for the United States. "cUL" (Canadian UL) indicates that a product meets the Canadian safety standards based on Canadian Standards

Storage and handling

Reliability

Reliable RV Electrical Equipment You can Cout On

Certifications

UL Certified & #1 RV Electrical Equipment In The Industry!

Easy Install

All RV Pedestals Come Pre Wired And Ready To Install Out Of The Box. Breakers Included!

Weather Proof

WR Rating Outlets & Nema 3R Enclosure

Midwest RV pedestals are built with heavy-duty, commercial-grade materials, ensuring long-lasting durability. With UL and cUL certifications, they deliver reliable, safe power distribution that meets strict U.S. and Canadian standards. Backed by Midwest’s reputation and our top distributor status, buying from Outdoorsiness is the best choice for any property owner.
