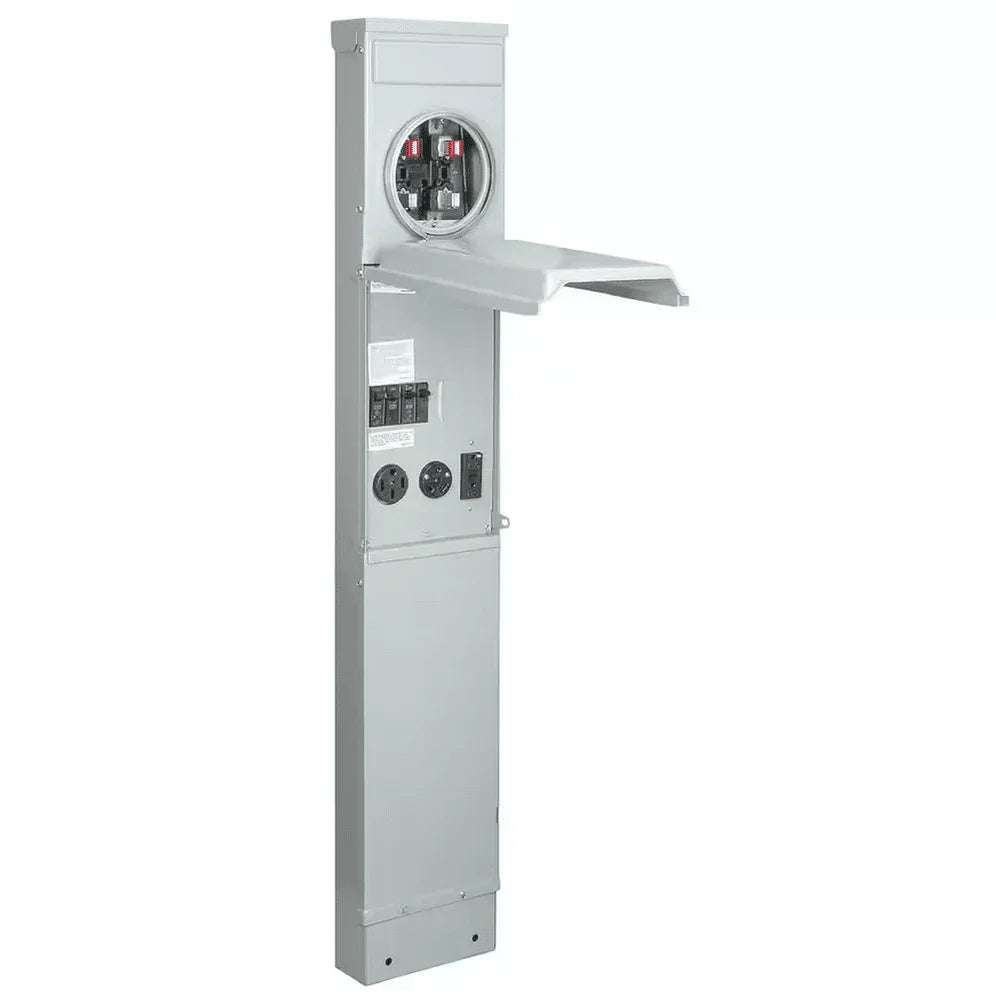

Our metered RV pedestals are  UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service.  Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.

RV Pedestal Features:

• Meter Socket rated 100 continuous Amps
• Ring type meter socket
• Fits all standard round watt hour meters
• Factory wired receptacles and breakers
• Riveted steel, powder coated for longevity
• Weather proof NEMA 3R and CSA enclosure 3R
• Pad lockable unit
• Pad Mount - Unit is non returnable
• Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.

Features:

• Vertical self-closing covers
  with 1/4" diameter lock hasps
• Heavy duty, die-cast
  aluminum, .094" thick with
  powder finish
• Stainless steel springs,
  screws and shaft for
  superior corrosion
  protection
• Durable heavy duty gasket
• Rain tight
• Adapts to 9” wide
  galvanized steel post

Our Ring Type Metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Pedestals are lockable and engineered for maximum weather protection and longevity.






RV Pedestal Features:

• Factory wired receptacles and breakers
• Riveted steel, powder coated for longevity
• Weather proof NEMA 3R and CSA enclosure 3R
• Pad lockable unit
• Direct bury

RV Pedestal Features:

• Factory wired receptacles and breakers
• Riveted steel, powder coated for longevity
• Weather proof NEMA 3R and CSA enclosure 3R
• Pad lockable unit
• Direct bury

Radio with Data on Demand
Price reflects Endsite metering software.  Please add meter and RadioGate quantity before purchase.

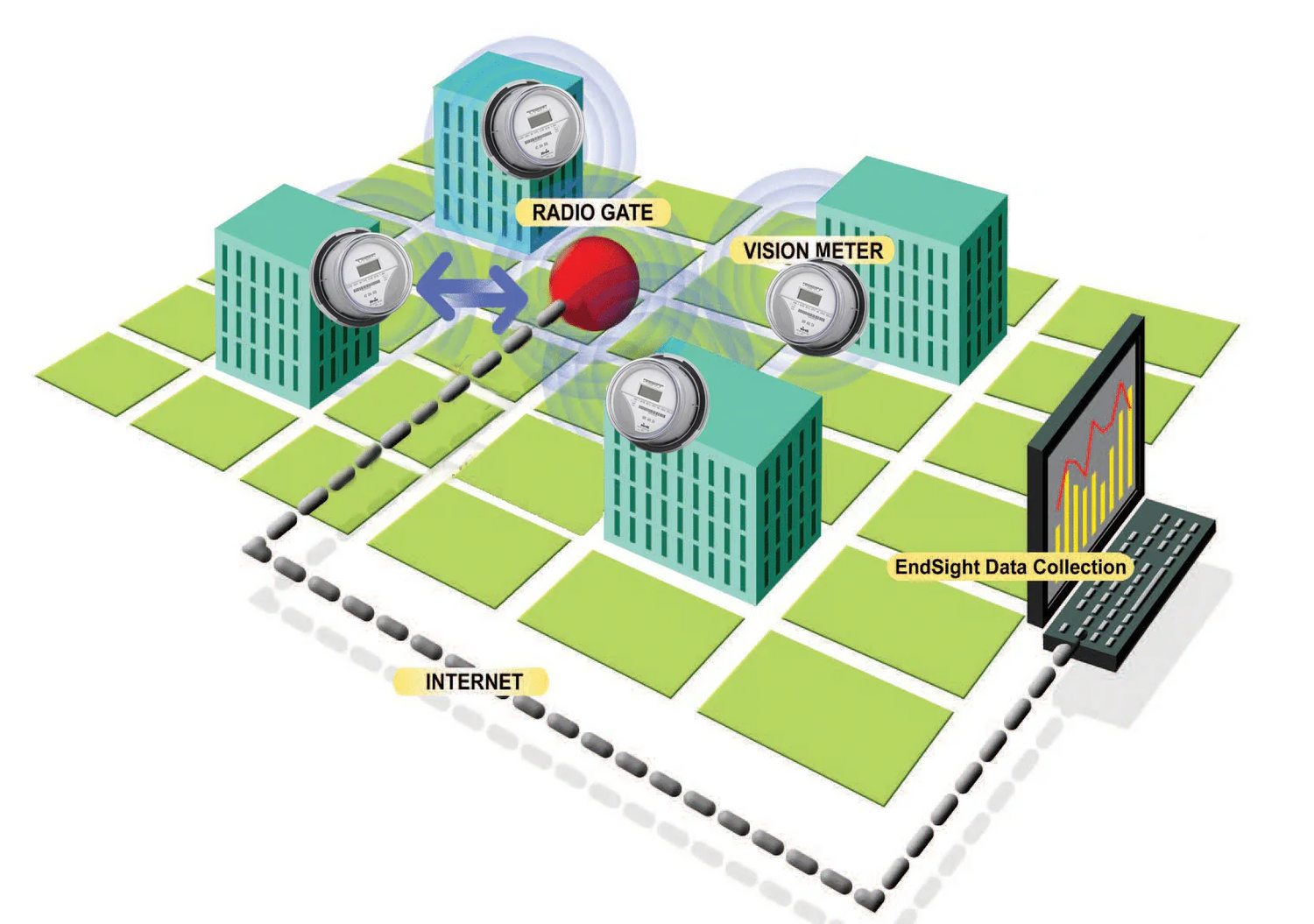

Electric Metering Data On Demand system provides real time energy consumption values using a robust 900MHz RF star network. Each endpoint is metered using a specialized meter equipped with Data On Demand radio and communicates directly with a RadioGate. The RadioGate collects the data and delivers it to the EndSight (software) data collection system on the end-user’s network.  Remote reading is limited to internet connectivity and in range of corresponding RadioGates.   Perfect for on site managers at RV parks, Campgrounds or multifamily properties

Data On Demand features include:
- RF star network
- Unlimited meters can be assigned to a single concentrator
- Concentrator deployment based solely upon RF transmission/reception
- RadioGate range: up to 1,000 yards, line of sight
- Data transmission options: kWh, max. kw, instantaneous kw, voltage, current and phase angle for all three phases
- Transmission schedule: 1 to 60 minutes, programmable
- Networking: TCP server, TCP client, UDP client, Static or Dynamic IP addressable





Fully Loaded Meter

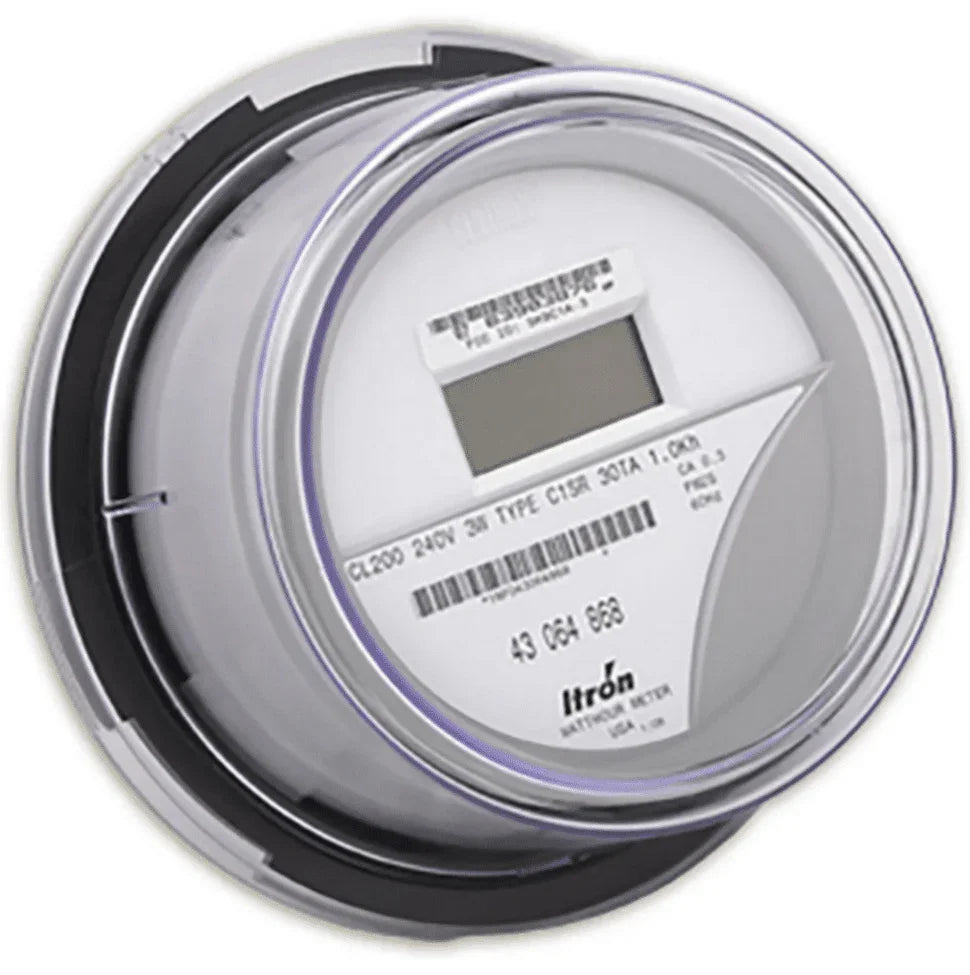

The XT Platform is the “fully-loaded” kWh meter. In addition to having all of the standard features, it also provides in-the-field Demand reads and it is compatible with multiple Advanced Metering Infrastructure (AMI) solutions. This meter is ideal for systems utilizing kV billing or in need of a low-cost smart metering solution.

Both Class 100 and Class 200 switches can be included in the base of either package. Class 200 switches are available in forms 1S, 2S, & 12S, while Class 100 switches are available in Forms 1S, 2S, 12S and 16S meters.



• ANSI C12.18, C12.19, C12.20 & C37.90.1 Compliant
• Utilizes Shielded Current Transformer(s) for Measurement
• 120 – 480 VAC Input Voltage
• LCD Display is soldered to the board
• Load Profile
• Time of Use
• Reactive Metering
• Event Log
• Delivered, Received & Net Metering
• Four Quadrant Metering for KW & KVarh
• Alternate Mode with programmable display values
• Accuracy +/- 0.2%
• Shipped with Accuracy better than +/- 0.15%
• Designed for 20 Year Life
• Battery options for Display, Ram, and Clock/li>
• Continuous Instantaneous KW Available
• Uses Vision 20/20 Software for Programming
• Starting Watts < 1.2 @ 120 VAC
• 50/60 Hz +/- 5%
• Utilizes Maxim Teridian Technology
• -40 to +85 ºC operating temperature
• 5 to 95% humidity non-condensing
• 100 or 200 Amp Switch Option(s)
• 32-Digit User Defined Security
• Optional Pulsed Output Board

Advanced Metering Infrastructure (AMI)

RadioGate communication system.
It operates between 902 - 928 Mhz and frequency hops between these frequencies.  In operation, the RadioGate develops an internal table to identify where each meter is located within the enclosure. If a meter is removed or moved to another location within the enclosure, it will send an alarm to EndSight (software). The RadioGate also has 3 status inputs which are used to communicate various events within the enclosure to EndSight such as door opening. It has a repeater function which allows various RadioGates to relay information from one unit to another and eventually get back to EndSight. The RadioGate has a wide range power supply which operates from 80 to 277 volts. It is internally fused to protect against both internal and external faults.

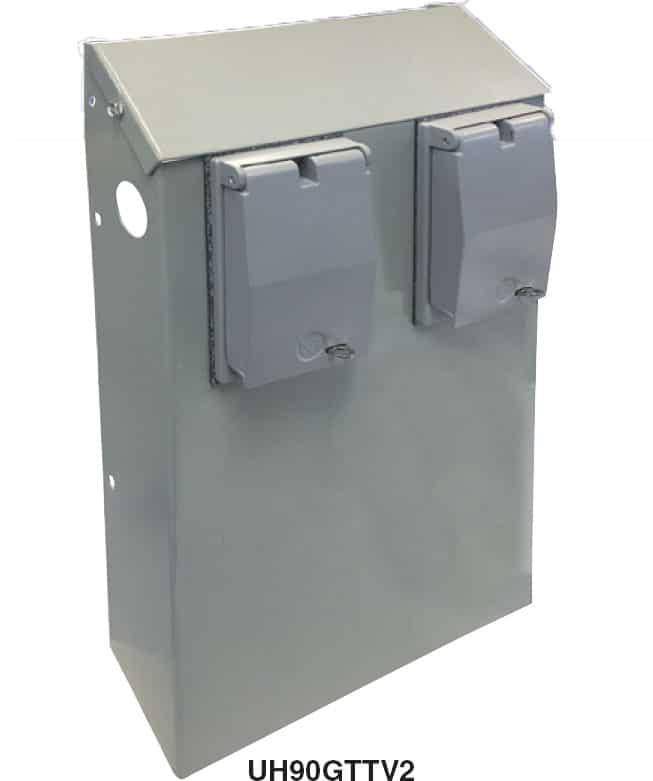

Features:

• Vertical self-closing covers
  with 1/4" diameter lock hasps
• Heavy duty, die-cast
  aluminum, .094" thick with
  powder finish
• Stainless steel springs,
  screws and shaft for
  superior corrosion
  protection
• Durable heavy duty gasket
• Raintight
• Adapts to 9” wide
  galvanized steel post
• One or two receptacles

Features:

• Vertical self-closing covers
  with 1/4" diameter lock hasps
• Heavy duty, die-cast
  aluminum, .094" thick with
  powder finish
• Stainless steel springs,
  screws and shaft for
  superior corrosion
  protection
• Durable heavy duty gasket
• Raintight
• Adapts to 9” wide
  galvanized steel post
• One or two receptacles

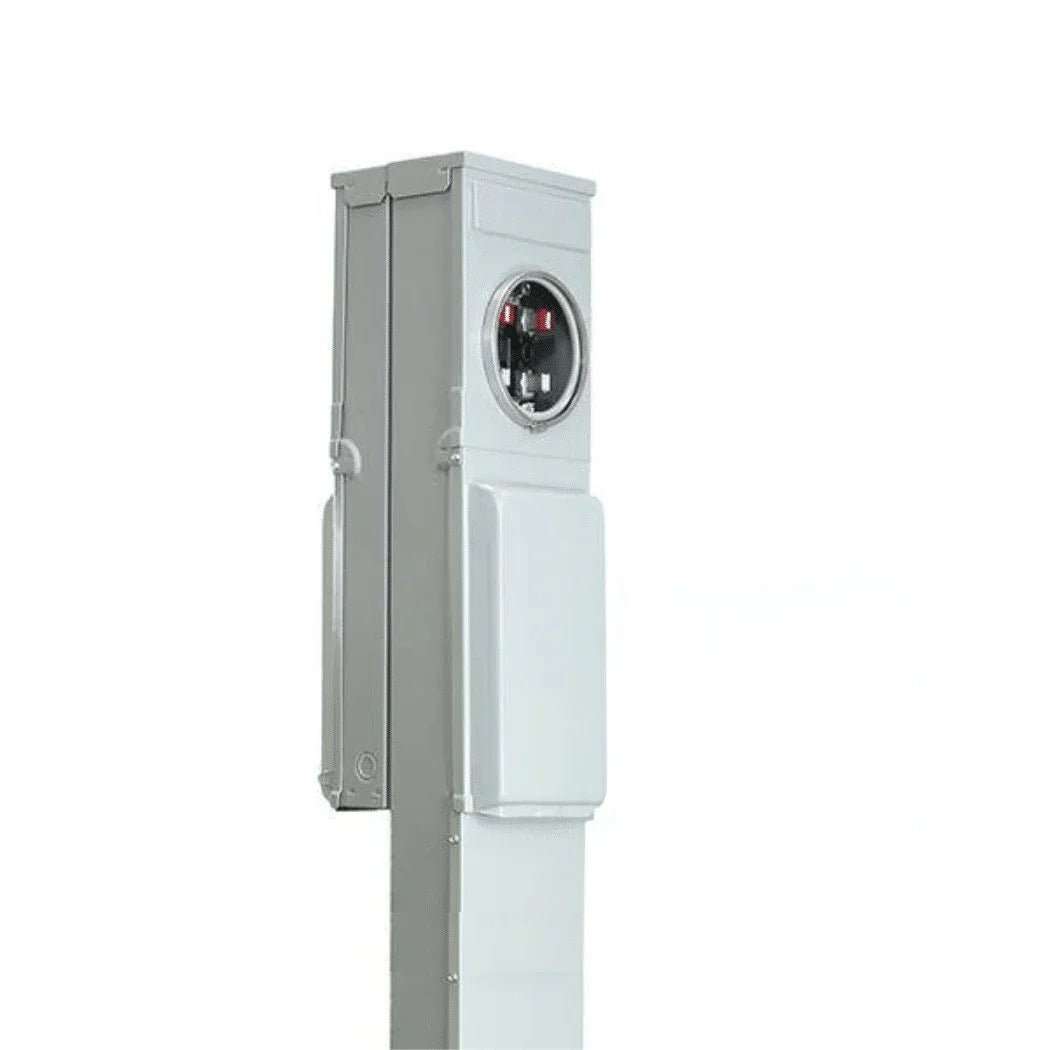

Our metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Pedestals are lockable and engineered for maximum weather protection and longevity.






RV Pedestal Features:

• Factory wired receptacles and breakers
• Riveted steel, powder coated for longevity
• Weather proof NEMA 3R and CSA enclosure 3R
• Pad lockable unit
• Direct bury

Technical Description:

Midwest® GE Metered Power Outlet, Type RV Ring, 120/240 VAC, 100 A, 1 ph Phase, 50/30/20 GFCI Receptacle, CB250/CB130/CB120 Circuit Breaker, 6 AWG to 350 kcmil Wire, Underground Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Earth Burial Mount

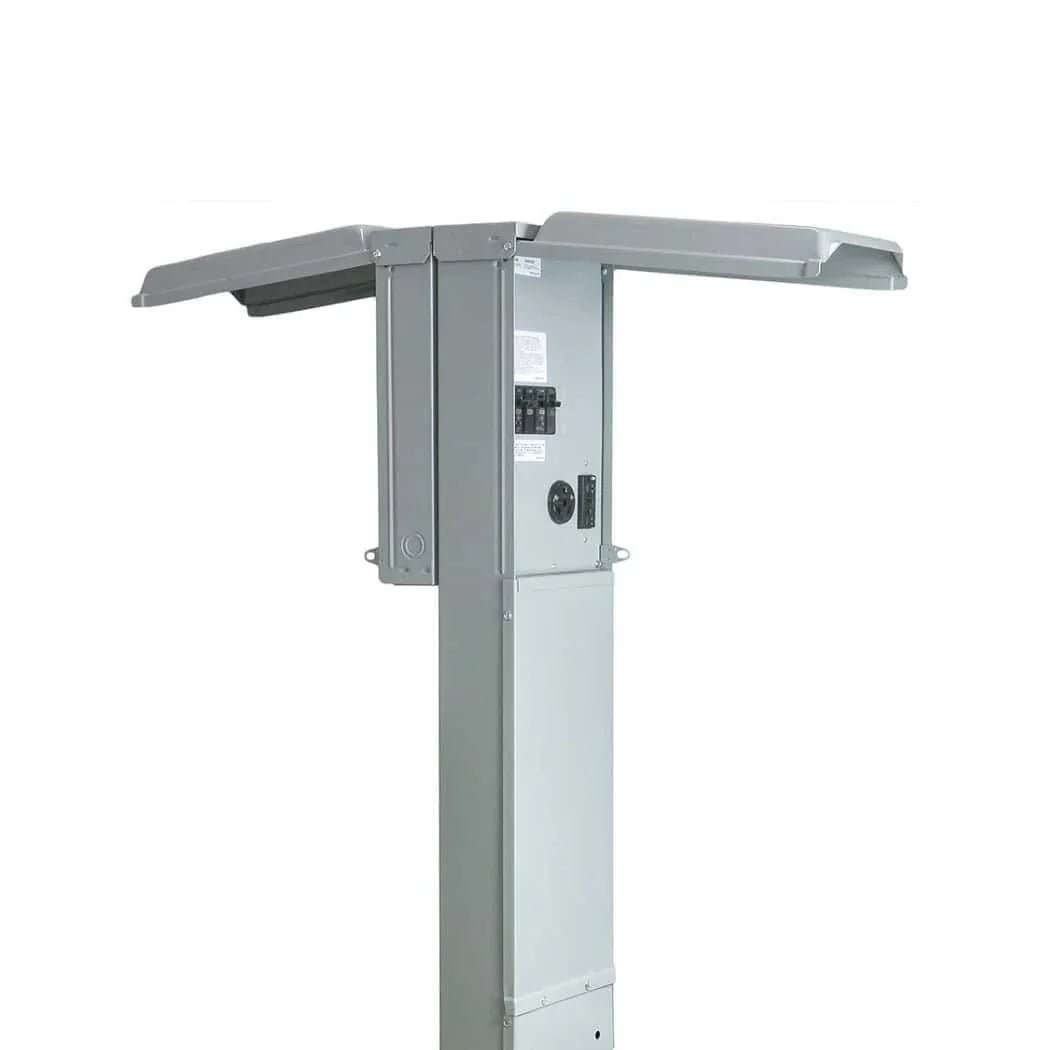

Our metered RV pedestals are  UL listed as RV supply equipment and perfect for any RV park or Campground.  Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat.  Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service.  Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.

RV Pedestal Features:

• Non Metered
• Factory wired receptacles and breakers
• Riveted steel, powder coated for longevity
• Weather proof NEMA 3R and CSA enclosure 3R
• Pad lockable unit
• Direct bury



Technical Description:

Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
