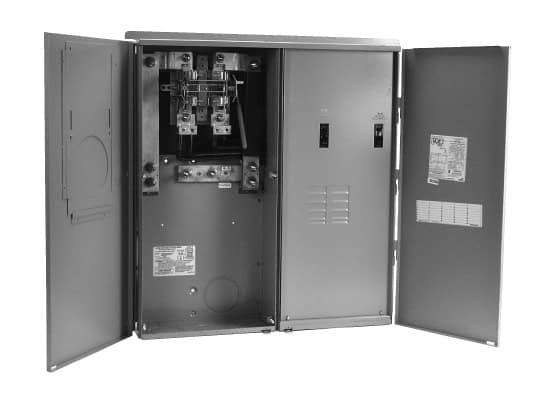

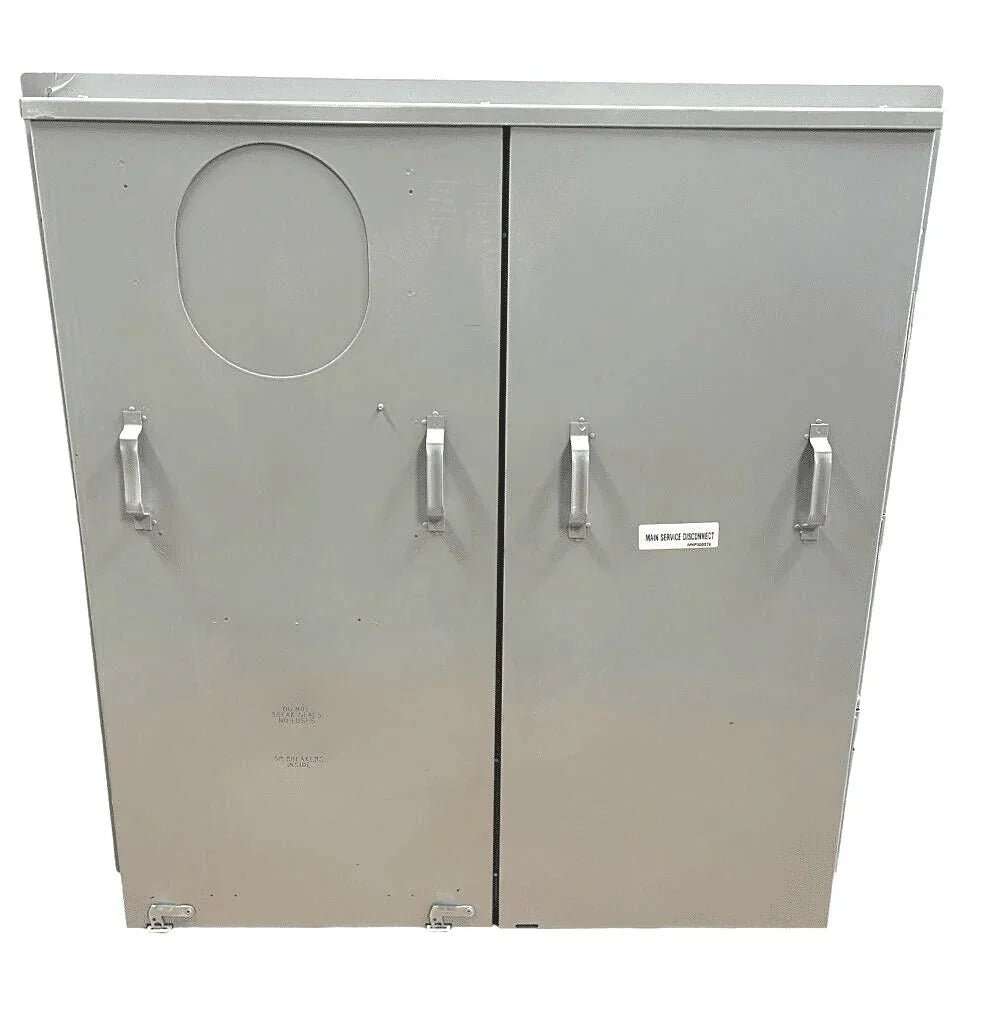

Midwest MS45508C 400A Ring Type Load center - All-In-One House Panel
Midwest MS45508C 400A Ring Type Load center - All-In-One House Panel
400 Amp All-In-One House Panel with Lever Bypass, Ring Type, 4 Jaws, 1-Phase, 120/240V, 22 kAIC, 8/8 Distribution, Main Breaker Type, UG Service, NEMA 3R - Rainproof Enclosure, Surface Mount Includes: (2) 200A Main Breakers
![]()
Product Specifications
| UPC: | 784567208658 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 30-1/2 Inch W x 6-1/10 Inch D x 33-1/10 Inch H; Mounting Surface |
| Catalog Number: | MS45508C |
| Type: | Metered Ring Type |
| Current Rating: | 400 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB2201H |
| Second Position Circuit Breaker Type: | CB2201H |
| Wire Size: | 1 AWG to 300 KCMIL Stranded (Copper/Aluminum, Load 1), 1 AWG to 300 KCMIL Stranded (Copper/Aluminum, Neutral N1), 6 to 2/0 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Stranded (Copper/Aluminum, Load 1), 1 AWG to 300 kcmil Stranded (Copper/Aluminum, Neutral N1), 6 to 2/0 AWG (Copper/Aluminum, Ground) Wire Size; UL Approval; NEMA 3R Enclosure; 400 Ampere Current Rating; 1-Phase Circuit Configuration; CB2201H First Position Circuit Breaker Type; CB2201H Second Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 30-1/2 Inch W X 6-1/10 Inch D X 33-1/10 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | Midwest MS45508C 400A Ring Type Loadcenter 31X33 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
Product Description
Ring Type, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Pedestal
The M281CB1 is a Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for surface mount applications. The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Specifications:
| UPC: | 784567585155 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width x 4-3/4 Inch Depth x 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Catalog Number: | R281CB1 |
| Brand Name: | Midwest Electric |
| Type: | Metered Ring Type |
| Current Rating: | 200 Amp |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Amp Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width X 4-3/4 Inch Depth X 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1 200A SURFACE METERED 14X28 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567585155 |
Midwest electric temporary power and power outlets are a means of providing power required by various construction trades, residential sites and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering and/or pedestal mounting functions, in a single enclosure of G90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism and normal field use.
Midwest® GE Unmetered Power Outlet, 120/240 VAC, 100 A, 1 ph Phase, NEMA 5-20R2GFCI Receptacle, CB120 Circuit Breaker, 14 to 8 AWG, 12 to 8 AWG Wire, Overhead Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Surface Mount
- Durable polyester powder coat finish resists chipping and fading
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Wide assortments of concentric knockouts offer flexibility in the installation
- Padlockable door to help prevent unauthorized access
- Deadfront construction prevents accidental contact with live parts
- All components factory wired and assembled, reducing installation time
- 9 x 17 in cabinet
- LC55N1 loadcenter
- 14 to 8 AWG solid, 14 to 1/0 AWG strand (copper), 12 to 8 AWG solid, 12 to 1/0 AWG strand (aluminum) line, 14 to 10 AWG solid, 14 to 1/0 AWG strand (copper) load
- Circuit breaker type at 1-position CB120, two circuit breaker type at position 2 CB120
- Two receptacles 5-20R2GFI on the left side, two center position receptacle 5-20R2GFI, right position receptacle 5-20R2GFI
Product Specifications
| UPC: | 78456720308 |
| Second Position Circuit Breaker Type: | CB120 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch W x 5-1/5 Inch D x 17 Inch H; Mounting Surface |
| Catalog Number: | U014C010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | 5-20R2GFCI |
| Center Position Receptacle Type: | 5-20R2GFCI |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS TEMPORARY POWER AND POWER OUTLETS ARE A MEANS OF PROVIDING POWER REQUIRED BY VARIOUS CONSTRUCTION TRADES, RESIDENTIAL SITES, AND MOBILE ELECTRICAL APPLICATIONS. TEMPORARY POWER AND POWER OUTLETS OFFER ONE OR MORE RECEPTACLES, WITH OR WITHOUT OVERCURRENT PROTECTION, DISCONNECTING, METERING, AND/OR PEDESTAL MOUNTING FUNCTIONS, IN A SINGLE ENCLOSURE OF G-90 ZINC-COATED STEEL. THE NEMA 3R RAINPROOF ENCLOSURE IS LOCKABLE AND ENGINEERED TO PROVIDE MAXIMUM PROTECTION AGAINST WEATHER, VANDALISM, AND NORMAL FIELD USE. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB120 First Position Circuit Breaker Type; 5-20R2GFCI Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacl |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U014C010 100A SURFACE UNMETERED (4) 20A GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567203080 |
RING TYPE Pad Mount 50 amp, 30 amp & 20 amp Metered RV Pedestal - M075CP4010
RING TYPE Pad Mount 50 amp, 30 amp & 20 amp Metered RV Pedestal - M075CP4010
Our metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- Ring type meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Pad Mount - Unit is non returnable
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Product Specifications
| UPC: | 784567205039 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Pad |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CP4010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Meter Socket & Metering Accessories |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Pad Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075CP4010 100A POST 50/30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567205039 |
| Unique Product Key: | 5952766 |
RING TYPE - 50 amp, 30 amp & 20 amp Metered RV Pedestal M075CP6010 - Direct Bury
RING TYPE - 50 amp, 30 amp & 20 amp Metered RV Pedestal M075CP6010 - Direct Bury
Our metered RV pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- Ring type meter socket
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Meters not included*
- Pad lockable unit
- Direct bury
- Breakers: (1) 2-Pole 50 Amp, 10 kAIC, (1) 1-Pole 30 Amp, 10 kAIC, (1) 1-Pole 20 Amp, 10 kAIC.
Product Specifications
| UPC: | 784567565515 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | M075CP6010 |
| Type: | Metered Ring |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M075CP6010 100A POST 50/30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Cross Reference: |
GE1LM532ES, 26-RT-123, MH75P-3 |
| UPC 12 Digit: | 784567565515 |
Product Description

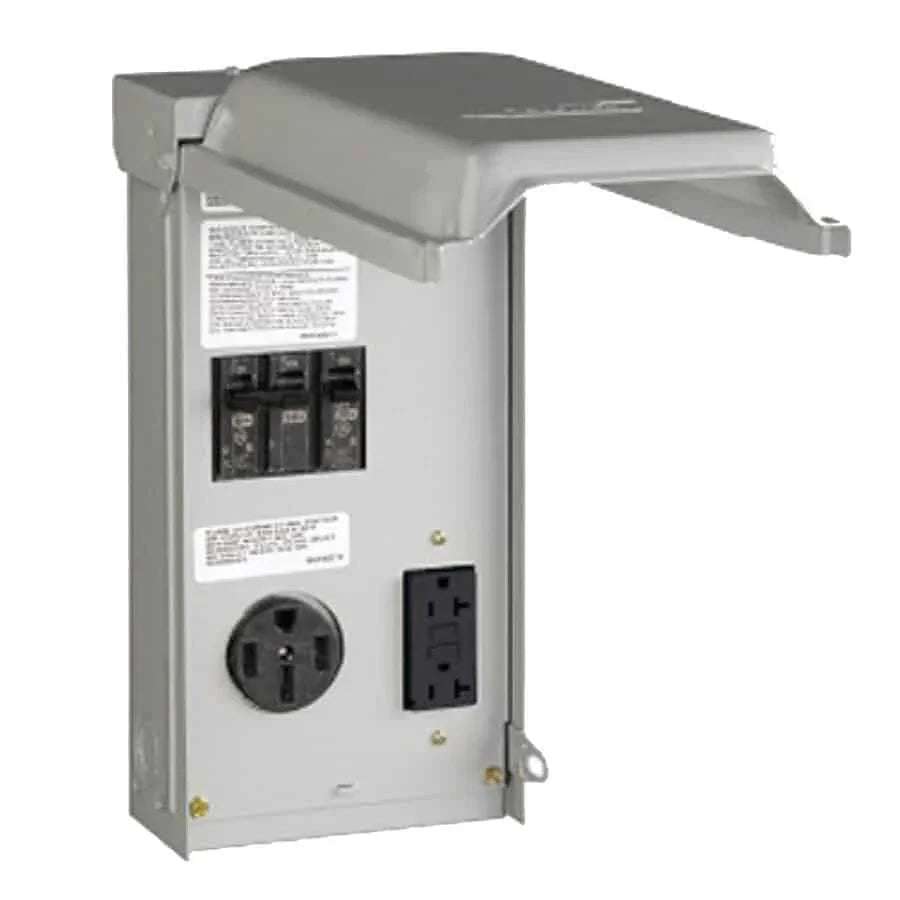

Constructed of G90 galvanized steel, this 30/20 Midwest post-mount surface box is finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed and has loop-fed lugs. Approved for use in Canada.
Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
- Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC33N7 load center
- Loop feed
- Suitable for service equipment
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish
| UPC: | 784567203011 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 17-3/8 Inch H; Mounting Surface |
| Catalog Number: | U041CTL010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB130 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 17-3/8 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U041CTL010 100A SURFACE 30/20GFCI TWIN LUGS |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 23153407 |
| UPC 12 Digit: | 784567203011 |
| Unique Product Key: | 6005879 |
30-20 amp GFCI RV Pedestal - Back to Back - U041CB6010 - Direct Bury
30-20 amp GFCI RV Pedestal - Back to Back - U041CB6010 - Direct Bury
Our metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Pedestals are lockable and engineered for maximum weather protection and longevity.
![]()
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting
Product Specifications
RV Pedestal Features:
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting
Product Specifications
| UPC: | 784567202830 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Back to Back Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | U041CB6010 |
| Type: | Unmetered |
| Current Rating: | 70 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB130 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Unmetered Power Outlet Pedestals |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting; NEMA 3R Enclosure; 70 Ampere Current Rating; 1-Phase Circuit Configuration; CB130 First Position Circuit Breaker Type; R32U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U041CB6010 70A BACK-TO-BACK POST 30/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567202830 |

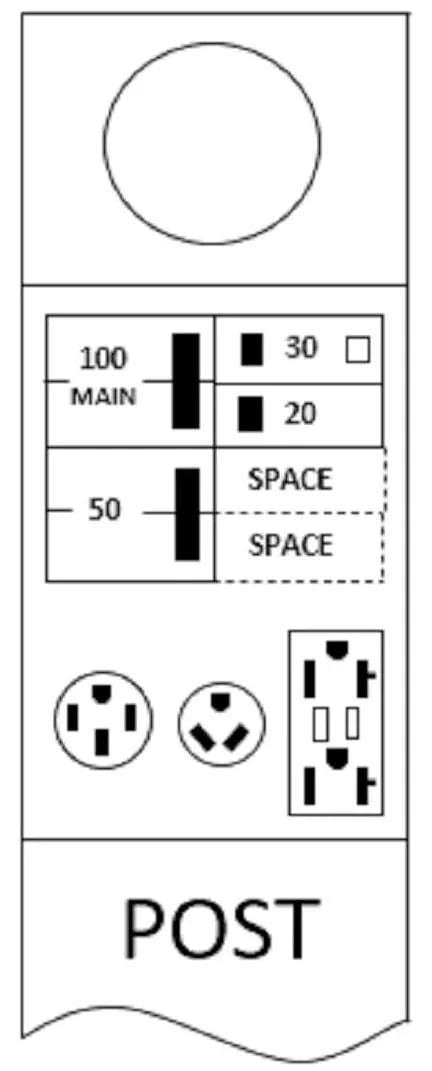

MEG APPROVED 50-30-20 RINGLESS Metered GFCI RV Pedestal - Direct Bury - R175MCP6010FMG
MEG APPROVED 50-30-20 RINGLESS Metered GFCI RV Pedestal - Direct Bury - R175MCP6010FMG
Our metered 50-30-20 Ringless RV pedestals are UL listed and MEG Approved as a RV supply service entrance unit. Perfect for any application in which requires MEG approval. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
RV Pedestal Features:
- Meter Socket rated 100 continuous Amps
- MEG Approved
- RINGLESS meter socket
- 1oo amp main breaker
- Fits all standard round watt hour meters
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Meters not included*
- Direct bury
Technical Description:
Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure

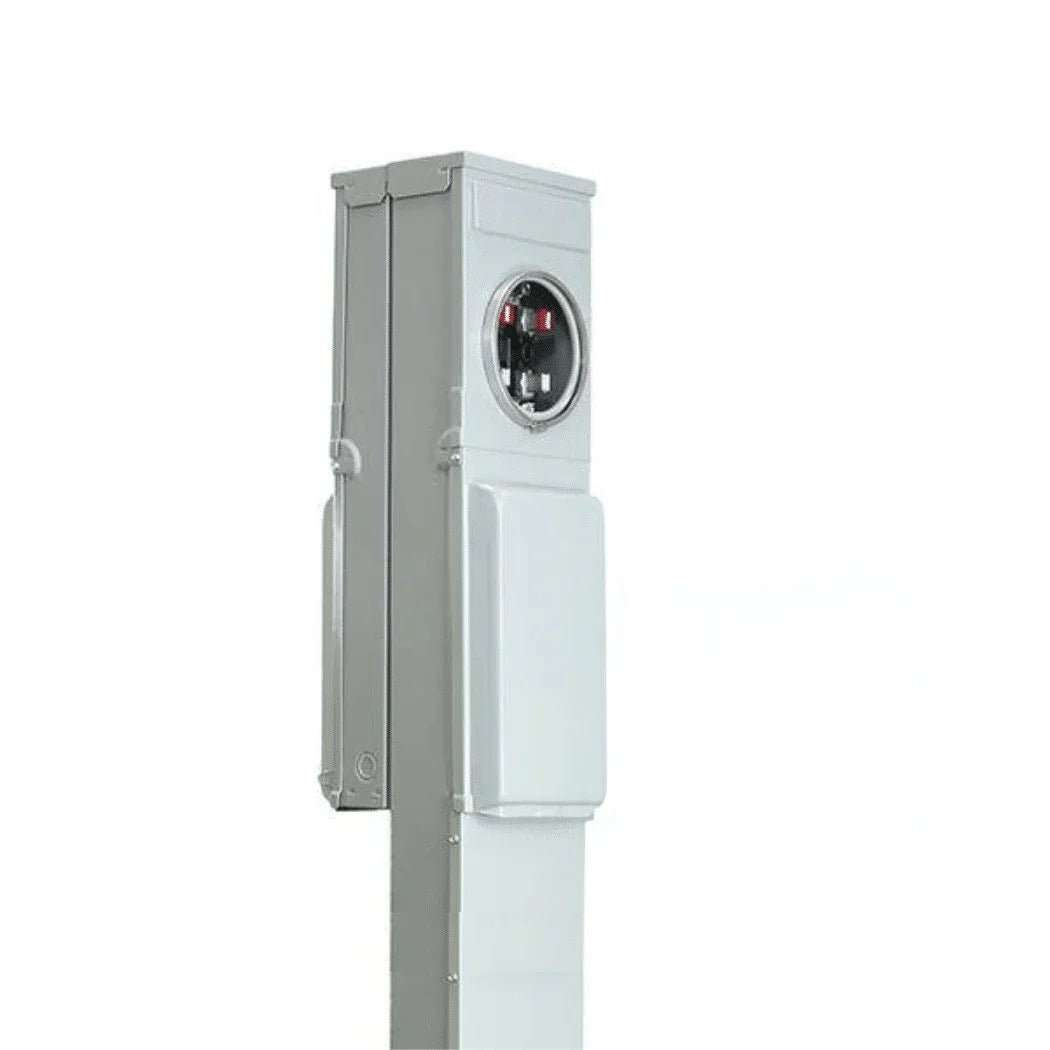

50-30-20 amp Ringless GFCI RV Pedestal R075CB6010 - Back to Back - Metered - Direct Bury
50-30-20 amp Ringless GFCI RV Pedestal R075CB6010 - Back to Back - Metered - Direct Bury
Our Ringless Metered RV pedestals are c UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Pedestals are lockable and engineered for maximum weather protection and longevity.
![]()
RV Pedestal Features:
-
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
| UPC: | 78456720800 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 AWG to 350 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Back to Back Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | R075CB6010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | R32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 AWG to 350 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Back to Back Earth Burial Mounting; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | Midwest R075CB6010 100A Back-To-Back Post 50/30/20-GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Loop Lug: | Yes |
| UPC 12 Digit: | 784567208009 |
MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
MIDWEST R075C010U 100A SURFACE 50amp 30amp and 20amp Ringless - Metered - Underground Feed
Constructed of G90 galvanized steel, this ringless metered 50/30/20 Midwest post-mount surface box is made with 16ga steel, finished with a gray polyester powder-coated paint that is baked on and NEMA 3R rated for outdoor use. The rolled-edge receptacle door swings up and open and can be locked. Units come factory wired and are assembled with breakers and receptacles installed
| Midwest® GE Metered Power Outlet, Type RV Ringless, 120/240 VAC, 100 A, 1 ph, 50/30/20 GFCI Receptacle, CB120/CB130/CB250 Circuit Breaker, 6 to 1/0 AWG Wire, Underground Feed, 10 kA Short Circuit, NEMA 3R Enclosure, Steel, Surface Mounting |
Features:
- All in one construction for factory assured terminations
- Underground Feed
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
Product Specifications
| UPC: | 784567301731 |
| Second Position Circuit Breaker Type: | CB130 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W x 5-3/16 Inch D x 30 Inch H; Mounting Surface |
| Catalog Number: | R075C010 |
| Type: | Metered Ringless |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | BR54U |
| Center Position Receptacle Type: | BR32U |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB250 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 1/0 AWG Stranded (Copper/Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; BR32U Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-3/4 Inch W X 5-3/16 Inch D X 30 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R075C010U 100A SURFACE 50/30/20GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| Cross Reference: |
22-RL-12, GE1LM532SS, MH75SM-3 |
| UPC 12 Digit: | 784567302172 |
| LOOP LUG: | No |
Radio with Data on Demand
Price reflects Endsite metering software. Please add meter and RadioGate quantity before purchase.
Electric Metering Data On Demand system provides real time energy consumption values using a robust 900MHz RF star network. Each endpoint is metered using a specialized meter equipped with Data On Demand radio and communicates directly with a RadioGate. The RadioGate collects the data and delivers it to the EndSight (software) data collection system on the end-user’s network. Remote reading is limited to internet connectivity and in range of corresponding RadioGates. Perfect for on site managers at RV parks, Campgrounds or multifamily properties
Data On Demand features include:
- RF star network
- Unlimited meters can be assigned to a single concentrator
- Concentrator deployment based solely upon RF transmission/reception
- RadioGate range: up to 1,000 yards, line of sight
- Data transmission options: kWh, max. kw, instantaneous kw, voltage, current and phase angle for all three phases
- Transmission schedule: 1 to 60 minutes, programmable
- Networking: TCP server, TCP client, UDP client, Static or Dynamic IP addressable
Fully Loaded Meter
The XT Platform is the “fully-loaded” kWh meter. In addition to having all of the standard features, it also provides in-the-field Demand reads and it is compatible with multiple Advanced Metering Infrastructure (AMI) solutions. This meter is ideal for systems utilizing kV billing or in need of a low-cost smart metering solution.
Both Class 100 and Class 200 switches can be included in the base of either package. Class 200 switches are available in forms 1S, 2S, & 12S, while Class 100 switches are available in Forms 1S, 2S, 12S and 16S meters.
- ANSI C12.18, C12.19, C12.20 & C37.90.1 Compliant
- Utilizes Shielded Current Transformer(s) for Measurement
- 120 – 480 VAC Input Voltage
- LCD Display is soldered to the board
- Load Profile
- Time of Use
- Reactive Metering
- Event Log
- Delivered, Received & Net Metering
- Four Quadrant Metering for KW & KVarh
- Alternate Mode with programmable display values
- Accuracy +/- 0.2%
- Shipped with Accuracy better than +/- 0.15%
- Designed for 20 Year Life
- Battery options for Display, Ram, and Clock/li>
- Continuous Instantaneous KW Available
- Uses Vision 20/20 Software for Programming
- Starting Watts < 1.2 @ 120 VAC
- 50/60 Hz +/- 5%
- Utilizes Maxim Teridian Technology
- -40 to +85 ºC operating temperature
- 5 to 95% humidity non-condensing
- 100 or 200 Amp Switch Option(s)
- 32-Digit User Defined Security
- Optional Pulsed Output Board
Advanced Metering Infrastructure (AMI)
RadioGate communication system.
It operates between 902 - 928 Mhz and frequency hops between these frequencies. In operation, the RadioGate develops an internal table to identify where each meter is located within the enclosure. If a meter is removed or moved to another location within the enclosure, it will send an alarm to EndSight (software). The RadioGate also has 3 status inputs which are used to communicate various events within the enclosure to EndSight such as door opening. It has a repeater function which allows various RadioGates to relay information from one unit to another and eventually get back to EndSight. The RadioGate has a wide range power supply which operates from 80 to 277 volts. It is internally fused to protect against both internal and external faults.
The M675CP6010 is a 200 amp 50/30/20 metered RV pedestals! Our pedestals are UL listed as RV supply equipment and perfect for any RV park or Campground. Tried and tested, our pedestals are currently providing power for RVers in private/state parks, national parks, county and fairgrounds from coast to coat. Each Pedestal is equipped with a factory wired socket rated to 100 continuous amps. These pedestals are manufactured using 16 - Gauge steel and NEMA 3R construction, both which resist corrosion, fading and provides lasting service. Units are available in either pad mount or direct bury pedestals and fit all standard round watt hour meters.
Product Specifications
RV Pedestal Features:
- Non Metered
- Factory wired receptacles and breakers
- Riveted steel, powder coated for longevity
- Weather proof NEMA 3R and CSA enclosure 3R
- Pad lockable unit
- Direct bury
- Loop Lug
- Breakers: (1) 2-Pole 50 Amp, (1) 1-Pole 30 Amp, (1) 1-Pole 20 Amp and (1) Blank Space.
Product Specifications
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Metered Power Outlet Pedestals |
| Metered: | Yes |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M675CP6010 200A POST METERED 50/30/20 |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567302394 |

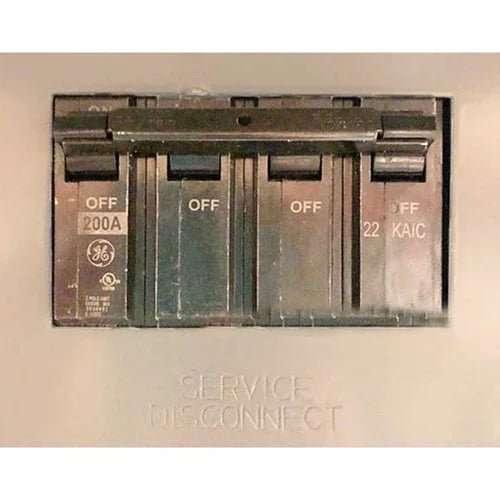

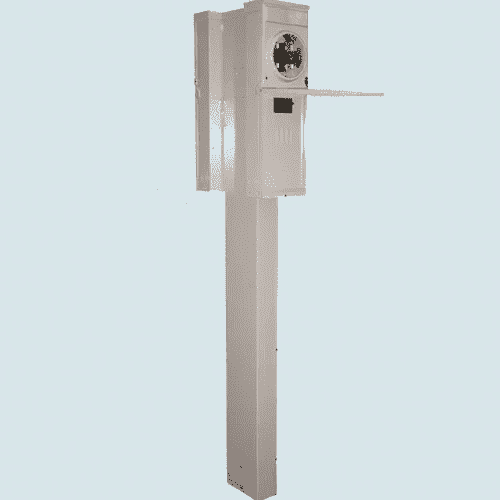

R281C1B6H Midwest 200 Amp Manufactured Home Back to Back Pedestal - Ring Less
R281C1B6H Midwest 200 Amp Manufactured Home Back to Back Pedestal - Ring Less
Product Description
Ring less, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Back to back
The R281C1B6H is a back to back Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for direct bury. The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Product Specifications
| UPC: | 784567588057 |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch D x 84 Inch H |
| Catalog Number: | R281C1B6H |
| Type: | Metered Ringless |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| Wire Size: | 6 AWG to 350 KCMIL (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Durable Polyester Powder Coated |
| Mounting: | Pedestal |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Durable Polyester Powder Coated Finish; 6 AWG to 350 kcmil (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) Wire Size; UL Approval; Pedestal Mounting; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch D X 84 Inch H |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281C1B6H 200A BACK-TO-BACK HEADPOST METERED |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567588057 |
M281C1B6H Midwest 200 Amp Manufactured Home Back to Back Pedestal - Ring Type
M281C1B6H Midwest 200 Amp Manufactured Home Back to Back Pedestal - Ring Type
Product Description
Ringless, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Back to back
The M281C1B6H is a back to back Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for direct bury. The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Product Specifications
| UPC: | 784567587050 |
| Mounting: | Pedestal |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch D x 84 Inch H |
| Catalog Number: | M281C1B6H |
| Type: | Metered Ring |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 AWG to 350 KCMIL (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Durable Polyester Powder Coated |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ring Type; G90 Galvanized Steel Material; Durable Polyester Powder Coated Finish; 6 AWG to 350 kcmil (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) Wire Size; UL Approval; Pedestal Mounting; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch D X 84 Inch H |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST M281C1B6H 200A BACK-TO-BACK HEADPOST METERED |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| Loop Lug: | Yes |
| UPC 12 Digit: | 784567587050 |

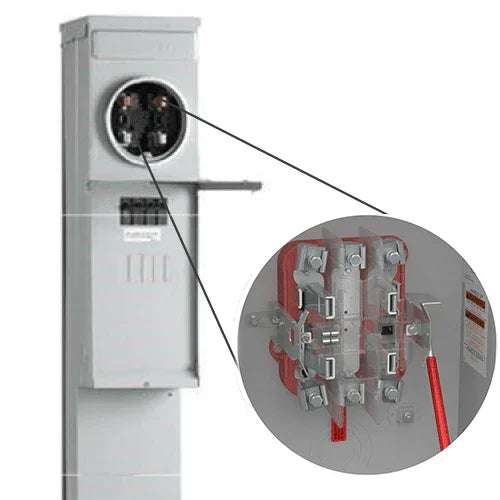

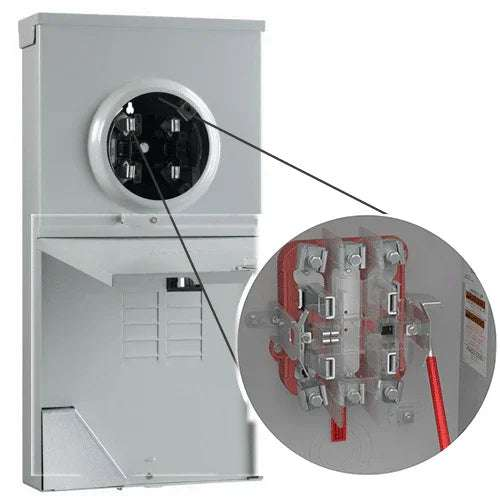

Lever Bypass R281CB1034 Midwest 200 Amp Manufactured Home Surface Panel- Ringless style
Lever Bypass R281CB1034 Midwest 200 Amp Manufactured Home Surface Panel- Ringless style
Product Description
Ringless, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Surface Mounting Box with Lever Bypass
The R281CB1034 is a Metered Service Entrance Equipment for mobile home and manufactured homes with Lever Bypass. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
This is mobile home box manufactured by Midwest is a 200 amp panel manufactured for surface mount applications. The service entrance box is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Product Specifications
| UPC: | 78456758816 |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W x 4-3/4 Inch D x 28-5/8 Inch H; Mounting Surface |
| Catalog Number: | R281CB1034 |
| Type: | Metered Ringless - BYPASS LEVER |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lugs/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 14-3/8 Inch W X 4-3/4 Inch D X 28-5/8 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1034 200A SURFACE METERED 14X28 LEVER BYPASS |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567588163 |

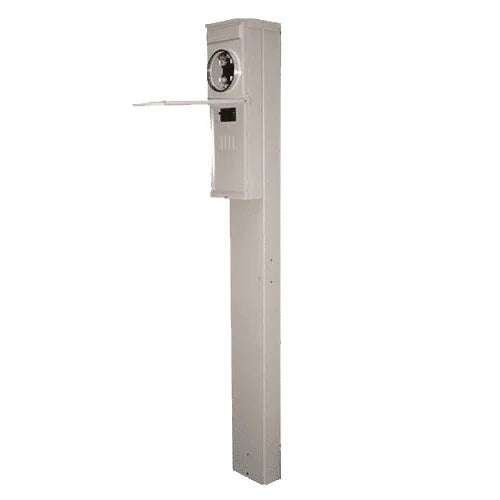

Lever Bypass R281C1P6H034 Midwest 200 Amp Manufactured Home Pedestal - Ringless style
Lever Bypass R281C1P6H034 Midwest 200 Amp Manufactured Home Pedestal - Ringless style
Product Description
Ringless, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Pedestal with Lever Bypass
The R281C1P6H034 is a Metered Service Entrance Equipment for mobile home and manufactured homes with Lever Bypass. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for direct bury. The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Product Specifications
| UPC: | 78456758811 |
| Mounting: | Pedestal |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch D x 83-1/2 Inch H |
| Catalog Number: | R281C1P6H034 |
| Type: | Metered Ringless - LEVER BYPASS |
| Current Rating: | 200 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | Lever |
| Wire Size: | 6 AWG to 350 KCMIL (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Durable Polyester Powder Coated |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Pedestals |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Durable Polyester Powder Coated Finish; 6 AWG to 350 kcmil (Copper/Aluminum, (Line), 12 to 2 AWG (Copper/Aluminum, Ground) Wire Size; UL Approval; Pedestal Mounting; NEMA 3R Enclosure; 200 Ampere Current Rating; 1-Phase Circuit Configuration; Lever First Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch D X 83-1/2 Inch H |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281C1P6H034 200A HEADPOST METERED LEVER BYPASS |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567588118 |
| Unique Product Key: | 6006101 |
Our 20-20 outlet is useful in many outdoor venue settings. Whether a flea market, trade show, campground or more. Midwest Electric’s metallic RV units are manufactured using 16-gauge, galvanized zinc-coated steel and NEMA 3R construction, which resists corrosion and fading and provides lasting service in outdoor applications. Units are available in surface mount and earth burial or padmount posts, offering a wide range of receptacle configurations to fit your needs.
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
Product Specifications
Description:
MIDWEST U011CP6010 POST 20-20 Unmetered, earth bury pedestal
Technical Description:MIDWEST U011CP6010 POST 20-20 Unmetered, earth bury pedestal
Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure
Product Specifications
| UPC: | 78456720340 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 1 AWG to 300 KCMIL Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Mounting: | Earth Burial |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Catalog Number: | U011CP6010 |
| Type: | Unmetered |
| Current Rating: | 70 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | 5-20R2GFCI |
| Center Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB120 |
| Second Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS METALLIC RV UNITS ARE MANUFACTURED USING 16-GAUGE, GALVANIZED ZINC-COATED STEEL AND NEMA 3R CONSTRUCTION, WHICH RESISTS CORROSION AND FADING AND PROVIDES LASTING SERVICE IN OUTDOOR APPLICATIONS. UNITS ARE AVAILABLE IN SURFACE MOUNT AND EARTH BURIAL OR PADMOUNT POSTS, OFFERING A WIDE RANGE OF RECEPTACLE CONFIGURATIONS TO FIT YOUR NEEDS. |
| Category: | Unmetered Power Outlet Pedestals |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Solid/Stranded (Copper/Aluminum), 12 to 2 AWG Solid/Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; Earth Burial Mounting; NEMA 3R Enclosure; 70 Ampere Current Rating; 1-Phase Circuit Configuration; CB120 First Position Circuit Breaker Type; 5-20R2GFCI Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Center Position Receptacle Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U011CP6010 70A POST 20/20GFCI |
| Sub-Category: | Outdoor Pedestal Mount Power Outlet Panel |
| UNSPSC: | 30102903 |
| UPC 12 Digit: | 784567203400 |
| Unique Product Key: | 5976346 |
The UH90GTTV1 is the perfect addon to any Midwest Pedestal. It seamlessly integrates onto the front or back of the pedestal with color matching paint. The water shroud hides water pipes and allows for a bibb location for water RV hookup. It also has one outlet for CATV.
Features:
- Vertical self-closing covers
with 1/4" diameter lock hasps - Heavy duty, die-cast
aluminum, .094" thick with
powder finish - Stainless steel springs,
screws and shaft for
superior corrosion
protection - Durable heavy duty gasket
- Raintight
- Adapts to 9” wide
galvanized steel post - One or two receptacles
The UH90G is the perfect addon to any Midwest Pedestal. It seamlessly integrates onto the front or back of the pedestal with color matching paint. The water shroud hides water pipes and allows for a bibb location for water RV hookup.
Features:
- Vertical self-closing covers
with 1/4" diameter lock hasps - Heavy duty, die-cast
aluminum, .094" thick with
powder finish - Stainless steel springs,
screws and shaft for
superior corrosion
protection - Durable heavy duty gasket
- Rain tight
- Adapts to 9” wide
galvanized steel post
Product Description
Ringless, 200 Amp, 120/240 Volt, 1-Phase, NEMA 3R, Pedestal
The R281CB1 is a Metered Service Entrance Equipment for mobile home and manufactured homes. Where electrical power enters a building or other source, the National Electrical Code (NEC) requires electrical distribution equipment rated as "Service Entrance." Such service equipment usually consists of one main breaker disconnect or space for up to 6 main disconnects. Midwest models meet these NEC requirements and are UL listed as service entrance equipment.
This mobile home pedestal by Midwest is a 200 amp pedestal manufactured for surface mount applications. The service entrance pedestal is rated with a 200 amp main breaker that is included. It has a 120/240v ring-type meter socket (meter not included) and is series wired with loop-fed lugs and 4 additional breaker spaces.
Specifications:
| UPC: | 784567585452 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width x 4-3/4 Inch Depth x 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Catalog Number: | R281CB1 |
| Brand Name: | Midwest Electric |
| Type: | Metered Ringless |
| Current Rating: | 200 Amp |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Amp Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width X 4-3/4 Inch Depth X 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1 200A SURFACE METERED 14X28 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UNSPSC: | 39121102 |
| UPC 12 Digit: | 784567585452 |
| Unique Product Key: | 5976298 |
Recently viewed products
Midwest RV Pedestals – The Industry Standard for Safe, Durable Power
When it comes to powering RV parks, campgrounds, marinas, and mobile home communities, nothing compares to the reliability of Midwest RV Pedestals. As the nation’s most trusted name in RV electrical service equipment, Midwest delivers heavy-duty pedestals that are built to last, fully UL-listed and NEC-compliant, and designed for years of dependable outdoor performance.
Whether you need metered or unmetered power distribution, permanent pad-mount solutions, space-saving surface mounts, or earth-bury pedestals for flexible installs, Midwest offers a complete line of products to fit any site. With rugged galvanized steel enclosures, weather-resistant finishes, and multiple breaker/receptacle configurations, Midwest RV pedestals give property owners confidence and guests the reliable hookups they expect.
Types of Midwest RV Pedestals We Carry
-
Metered RV Pedestals – Built-in kWh meters for accurate tracking and fair billing of electrical usage.
-
Unmetered RV Pedestals – Cost-effective power delivery for sites where metering isn’t required.
-
Pad Mount Pedestals – Permanent and secure installation on concrete pads, ideal for long-term site infrastructure.
-
Surface Mount Pedestals – Compact and space-saving, mount directly to posts or walls.
-
Earth-Bury Pedestals – Easy in-ground installation with a clean look and minimal footprint.
Why Choose Midwest RV Pedestals?
-
Trusted Brand – Midwest is the most recognized manufacturer of RV park and campground electrical systems.
-
Durable & Weatherproof – Heavy-gauge galvanized steel with powder-coat finish resists rust, impact, and harsh climates.
-
Flexible Power Options – Available in 30A, 50A, and combo receptacle layouts, with metered or unmetered choices.
-
Code-Compliant – UL-listed and NEC-compliant for safe, reliable operation.
-
Long-Term Value – Built for high-traffic outdoor use with minimal maintenance needs.
Power Your Property the Right Way
From small campgrounds to nationwide RV resorts, Midwest RV Pedestals are the go-to choice for property owners who want safe, durable, and efficient power distribution. With options to fit every site layout and electrical requirement, Midwest makes it easy to install a system that works today and for years to come.
Browse our full line of Midwest RV pedestals today and find the perfect model for your property.
