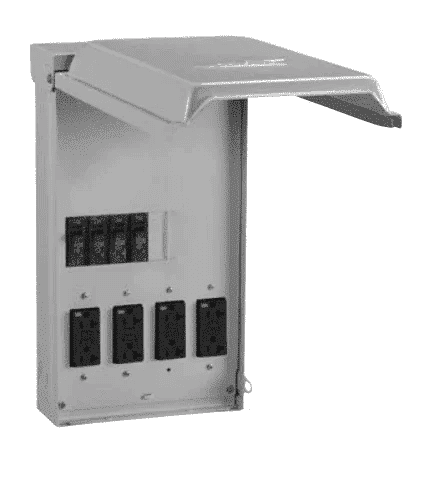

Midwest U014C010 100A Surface Unmetered - 4x 120v, 20A GFCI Outlets
Estimated Delivery between October 17 and October 19.
Midwest electric temporary power and power outlets are a means of providing power required by various construction trades, residential sites and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering and/or pedestal mounting functions, in a single enclosure of G90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism and normal field use.
Midwest® GE Unmetered Power Outlet, 120/240 VAC, 100 A, 1 ph Phase, NEMA 5-20R2GFCI Receptacle, CB120 Circuit Breaker, 14 to 8 AWG, 12 to 8 AWG Wire, Overhead Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Surface Mount
- Durable polyester powder coat finish resists chipping and fading
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Wide assortments of concentric knockouts offer flexibility in the installation
- Padlockable door to help prevent unauthorized access
- Deadfront construction prevents accidental contact with live parts
- All components factory wired and assembled, reducing installation time
- 9 x 17 in cabinet
- LC55N1 loadcenter
- 14 to 8 AWG solid, 14 to 1/0 AWG strand (copper), 12 to 8 AWG solid, 12 to 1/0 AWG strand (aluminum) line, 14 to 10 AWG solid, 14 to 1/0 AWG strand (copper) load
- Circuit breaker type at 1-position CB120, two circuit breaker type at position 2 CB120

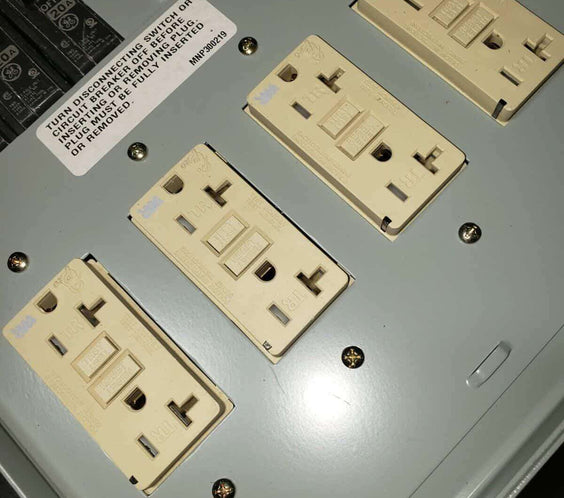

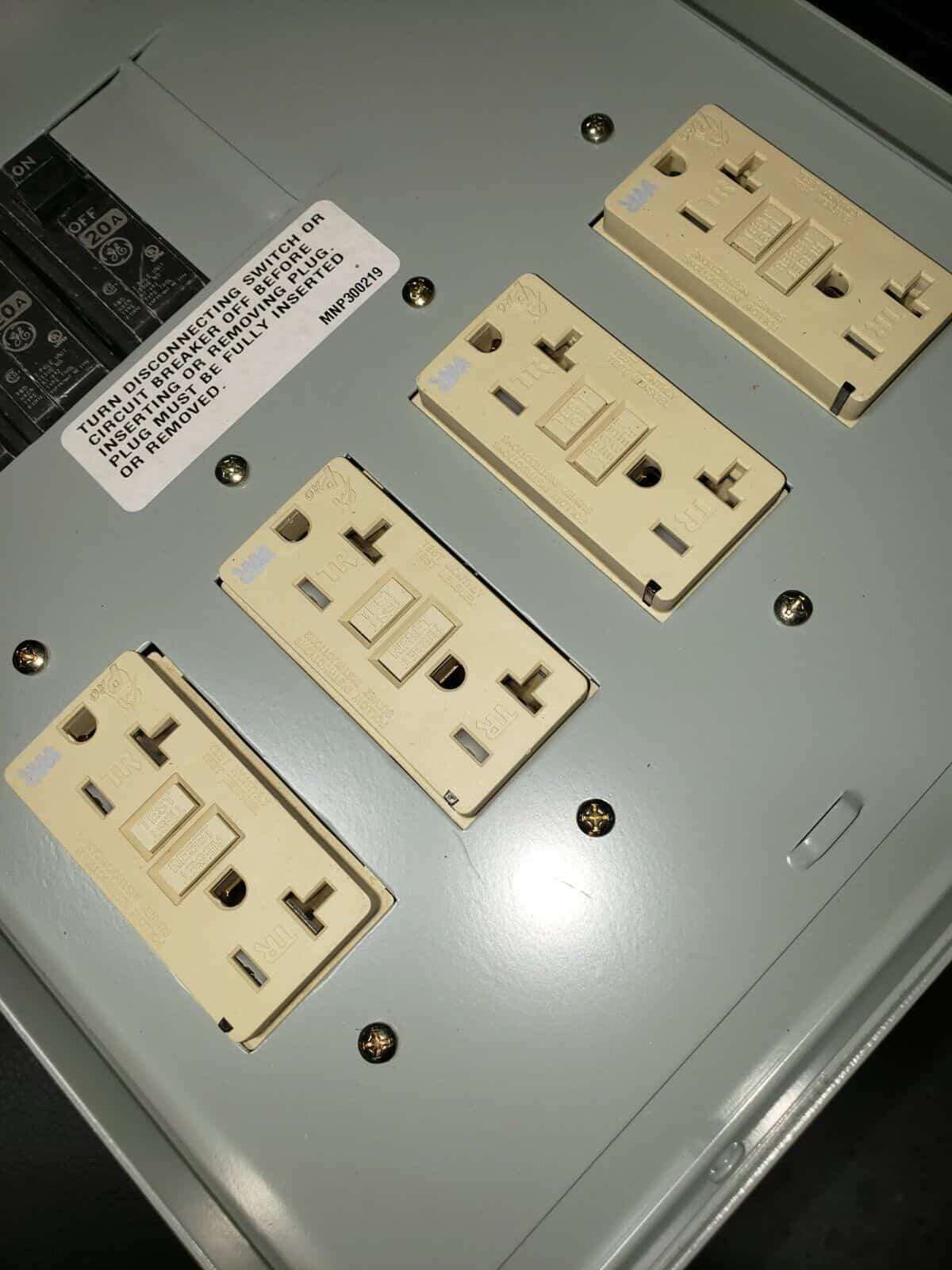

- Two receptacles 5-20R2GFI on the left side, two center position receptacle 5-20R2GFI, right position receptacle 5-20R2GFI
Product Specifications
| UPC: | 78456720308 |
| Second Position Circuit Breaker Type: | CB120 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch W x 5-1/5 Inch D x 17 Inch H; Mounting Surface |
| Catalog Number: | U014C010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | 5-20R2GFCI |
| Center Position Receptacle Type: | 5-20R2GFCI |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS TEMPORARY POWER AND POWER OUTLETS ARE A MEANS OF PROVIDING POWER REQUIRED BY VARIOUS CONSTRUCTION TRADES, RESIDENTIAL SITES, AND MOBILE ELECTRICAL APPLICATIONS. TEMPORARY POWER AND POWER OUTLETS OFFER ONE OR MORE RECEPTACLES, WITH OR WITHOUT OVERCURRENT PROTECTION, DISCONNECTING, METERING, AND/OR PEDESTAL MOUNTING FUNCTIONS, IN A SINGLE ENCLOSURE OF G-90 ZINC-COATED STEEL. THE NEMA 3R RAINPROOF ENCLOSURE IS LOCKABLE AND ENGINEERED TO PROVIDE MAXIMUM PROTECTION AGAINST WEATHER, VANDALISM, AND NORMAL FIELD USE. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB120 First Position Circuit Breaker Type; 5-20R2GFCI Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacl |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U014C010 100A SURFACE UNMETERED (4) 20A GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567203080 |
Midwest U014C010 100A Surface Unmetered - 4x 120v, 20A GFCI Outlets
Please Review Return Policy Here: Return Policy
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
Midwest electric temporary power and power outlets are a means of providing power required by various construction trades, residential sites and mobile electrical applications. Temporary power and power outlets offer one or more receptacles, with or without overcurrent protection, disconnecting, metering and/or pedestal mounting functions, in a single enclosure of G90 zinc coated steel. The NEMA 3R rainproof enclosure is lockable and engineered to provide maximum protection against weather, vandalism and normal field use.
Midwest® GE Unmetered Power Outlet, 120/240 VAC, 100 A, 1 ph Phase, NEMA 5-20R2GFCI Receptacle, CB120 Circuit Breaker, 14 to 8 AWG, 12 to 8 AWG Wire, Overhead Feed, 10 kA Short Circuit Current, NEMA 3R, Steel, Surface Mount
- Durable polyester powder coat finish resists chipping and fading
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Wide assortments of concentric knockouts offer flexibility in the installation
- Padlockable door to help prevent unauthorized access
- Deadfront construction prevents accidental contact with live parts
- All components factory wired and assembled, reducing installation time
- 9 x 17 in cabinet
- LC55N1 loadcenter
- 14 to 8 AWG solid, 14 to 1/0 AWG strand (copper), 12 to 8 AWG solid, 12 to 1/0 AWG strand (aluminum) line, 14 to 10 AWG solid, 14 to 1/0 AWG strand (copper) load
- Circuit breaker type at 1-position CB120, two circuit breaker type at position 2 CB120
- Two receptacles 5-20R2GFI on the left side, two center position receptacle 5-20R2GFI, right position receptacle 5-20R2GFI
Product Specifications
| UPC: | 78456720308 |
| Second Position Circuit Breaker Type: | CB120 |
| Third Position Circuit Breaker Type: | CB120 |
| Wire Size: | 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 |
| Material: | G90 Galvanized Steel |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL, CUL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 9-1/2 Inch W x 5-1/5 Inch D x 17 Inch H; Mounting Surface |
| Catalog Number: | U014C010 |
| Type: | Unmetered |
| Current Rating: | 100 Ampere |
| Circuit Configuration: | 1-Phase |
| Left Position Receptacle Type: | 5-20R2GFCI |
| Center Position Receptacle Type: | 5-20R2GFCI |
| Right Position Receptacle Type: | 5-20R2GFCI |
| First Position Circuit Breaker Type: | CB120 |
| CATALOG DESCRIPTION: | MIDWEST ELECTRICS TEMPORARY POWER AND POWER OUTLETS ARE A MEANS OF PROVIDING POWER REQUIRED BY VARIOUS CONSTRUCTION TRADES, RESIDENTIAL SITES, AND MOBILE ELECTRICAL APPLICATIONS. TEMPORARY POWER AND POWER OUTLETS OFFER ONE OR MORE RECEPTACLES, WITH OR WITHOUT OVERCURRENT PROTECTION, DISCONNECTING, METERING, AND/OR PEDESTAL MOUNTING FUNCTIONS, IN A SINGLE ENCLOSURE OF G-90 ZINC-COATED STEEL. THE NEMA 3R RAINPROOF ENCLOSURE IS LOCKABLE AND ENGINEERED TO PROVIDE MAXIMUM PROTECTION AGAINST WEATHER, VANDALISM, AND NORMAL FIELD USE. |
| Category: | Unmetered Power Outlet Panels |
| Full Technical Description: | Unmetered Type; G90 Galvanized Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 10 AWG Solid/Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Ampere Current Rating; 1-Phase Circuit Configuration; CB120 First Position Circuit Breaker Type; 5-20R2GFCI Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB120 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacl |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST U014C010 100A SURFACE UNMETERED (4) 20A GFCI |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567203080 |
