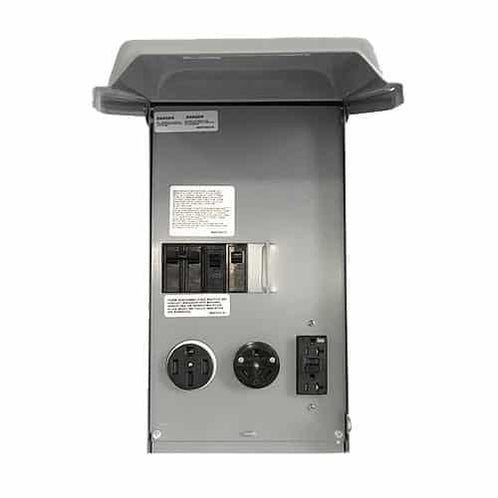

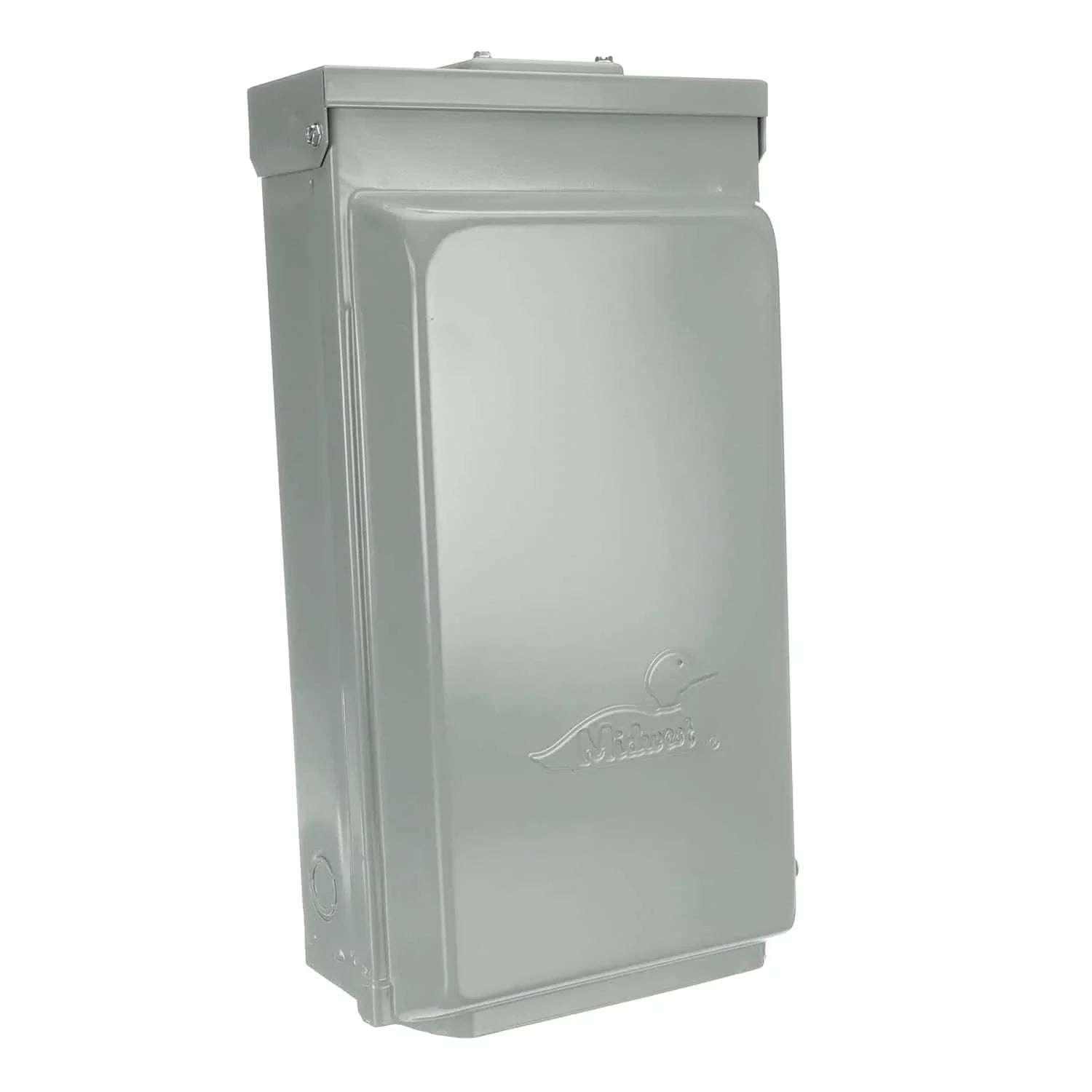

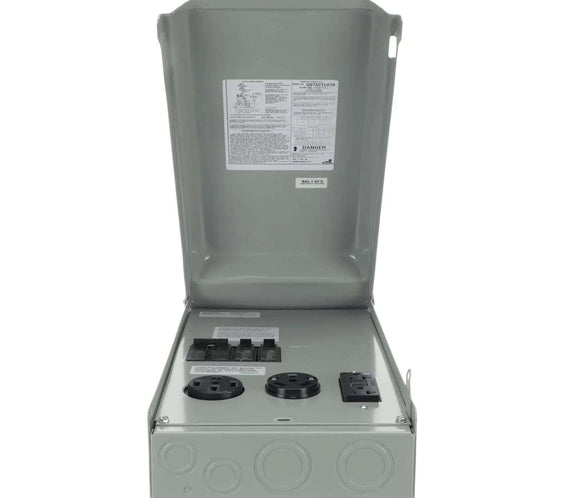

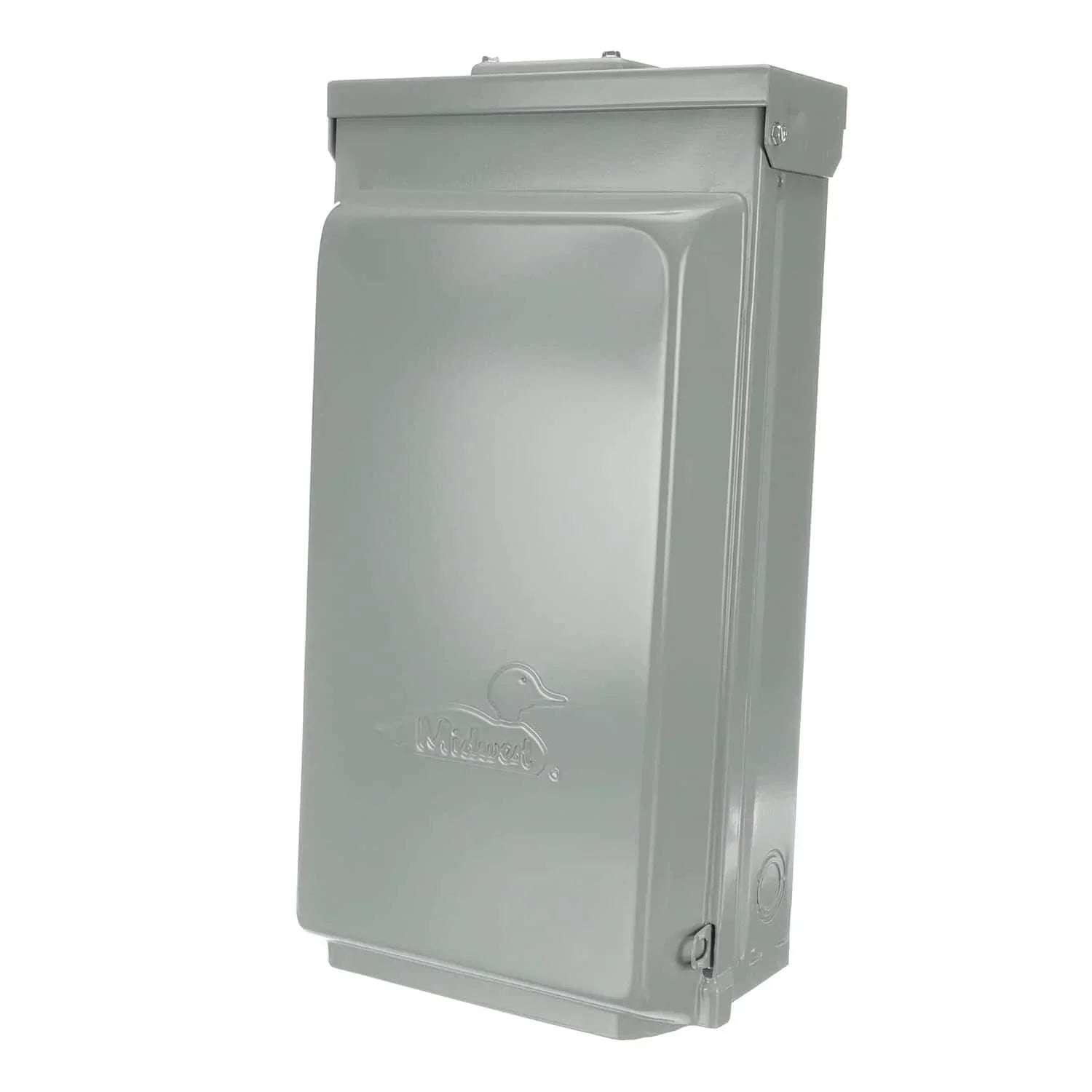

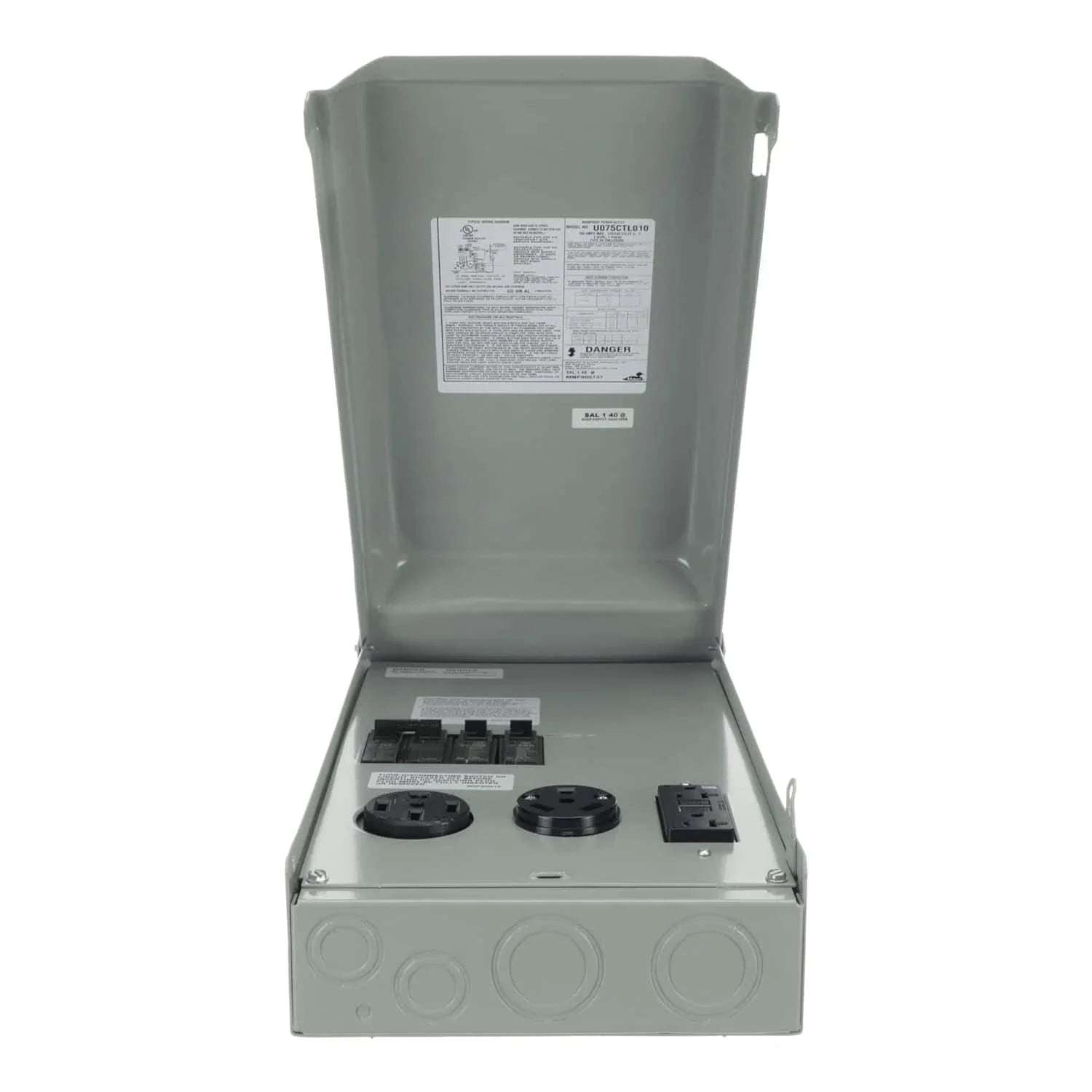

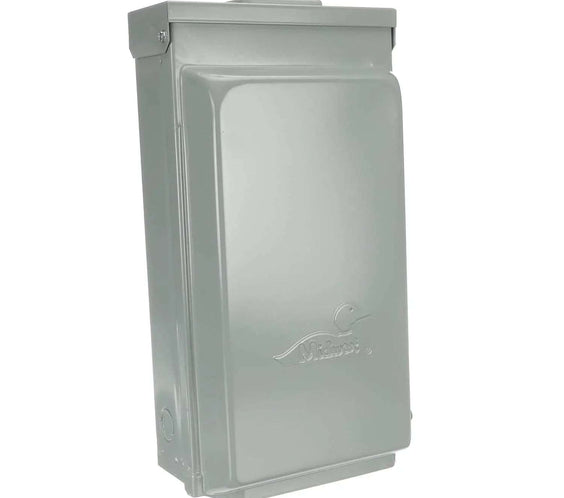

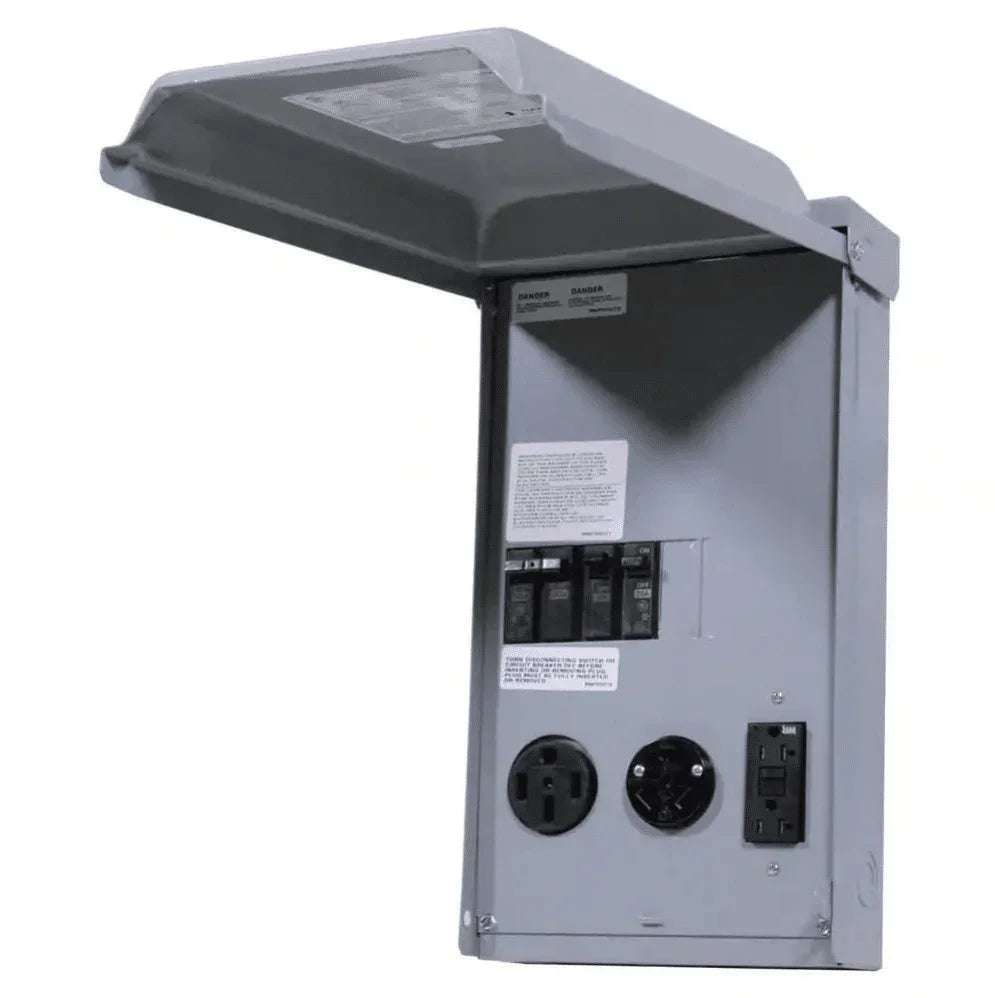

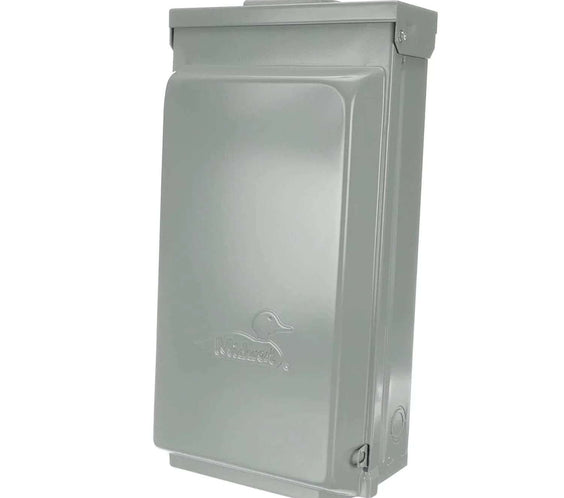

Midwest 50/30/20 amp Unmetered surface box U075CTL010 - Loop Lug
Estimated Delivery between October 17 and October 19.
U075CTL010 Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
- Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC55N1T load center
- Suitable for service equipment
- Twin lugs per phase (loop feed for surface mount units) post options
- GFCI duplex receptacle options

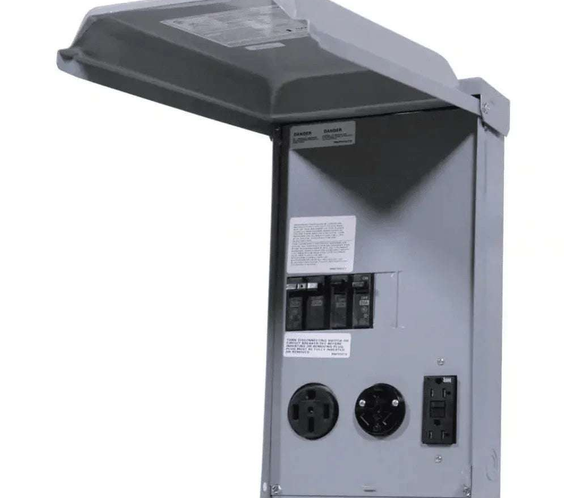

Technical Description: 50/30/20 AMP RV Box
Unmetered Type; G90 Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Amp Current Rating; 1-Phase Circuit Configuration; No Illuminated; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Voltage Rating 120/240 Volt; Cabinet Dimension 9-3/4 Inch Width X 5-3/16 Inch Depth X 17-3/8 Inch Height; Mounting Type Surface;
Product Specifications: U075CTL010
[porto_block id="84415"]
U075CTL010 360 Video
https://youtube.com/shorts/g-6u_Ih1zjI?si=Us7CzI2rTTPd9A9B
Midwest 50/30/20 amp Unmetered surface box U075CTL010 - Loop Lug
Please Review Return Policy Here: Return Policy
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
U075CTL010 Features:
- All in one construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy 16 ga galvanized zinc coated steel with highest quality electro deposition finish resists corrosion and fading
- Welded flange, NEMA 3R construction for lasting service in outdoor installations
- All components are factory wired and assembled, reducing installation time
- Door holds in open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Wide range of receptacle configurations
- Broad range of concentric knockouts to accommodate wiring needs
- All units with 12 to 2 copper/aluminum equipment ground lug
- Factory wired from loop feed lugs, located in the post to receptacles, reducing installation time
- Loop feed lugs have twin 2 to 250 MCM terminals minimum per phase, copper/aluminum (some models available up to 350 MCM)
- Rolled edge post bottoms to protect service cable
- Post door removable for installation ease
- Surface heads
- Hub provision
- LC55N1T load center
- Suitable for service equipment
- Twin lugs per phase (loop feed for surface mount units) post options
- GFCI duplex receptacle options
Technical Description: 50/30/20 AMP RV Box
Unmetered Type; G90 Steel Material; Zinc Coated Finish; 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Line), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Aluminum, Line), 14 to 8 AWG Solid, 14 to 1/0 AWG Stranded (Copper, Load), 12 to 8 AWG Solid, 12 to 1/0 AWG Stranded (Copper, Neutral-Large Hole), 10 to 8 AWG Solid, 10 to 1/0 AWG Stranded (Aluminum, Neutral-Large Hole), 14 to 8 AWG Solid, 14 to 4 AWG Stranded (Copper, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 4 AWG Stranded (Aluminum, Neutral-Small Hole), 12 to 8 AWG Solid, 12 to 2 AWG Stranded (Copper/Aluminum, Ground) Wire Size; UL, CUL Approval; NEMA 3R Enclosure; 100 Amp Current Rating; 1-Phase Circuit Configuration; No Illuminated; CB250 First Position Circuit Breaker Type; BR54U Left Position Receptacle Type; CB120 Third Position Circuit Breaker Type; CB130 Second Position Circuit Breaker Type; 5-20R2GFCI Right Position Receptacle Type; R32U Center Position Receptacle Type; Voltage Rating 120/240 Volt; Cabinet Dimension 9-3/4 Inch Width X 5-3/16 Inch Depth X 17-3/8 Inch Height; Mounting Type Surface;
Product Specifications: U075CTL010
[porto_block id="84415"]
U075CTL010 360 Video
https://youtube.com/shorts/g-6u_Ih1zjI?si=Us7CzI2rTTPd9A9B
For Us, Quality Matters
Free-range Turkey
Outdoorsiness is proud to be recognized as one of the Top Authorized Midwest Distributors, delivering trusted products backed by the reliability of the Midwest brand.
Nema 3R Enclosure
NEMA 3R electrical enclosures are compatible with outdoor applications and hold up to the most demanding conditions. Midwest produces top-quality RV Pedestals in a variety of types and configurations all meeting Nema 3R.
16-Gauge Galvenized
Midwest RV pedestals are constructed with 16-gauge galvanized zinc-coated steel to resist corrosion and fading, ensuring lasting service in outdoor environments.
UL & CUL Listed
UL Listed RV Pedestals indicates a product has been tested and certified to meet specific safety standards for the United States. "cUL" (Canadian UL) indicates that a product meets the Canadian safety standards based on Canadian Standards
Storage and handling
Reliability
Reliable RV Electrical Equipment You can Cout On
Certifications
UL Certified & #1 RV Electrical Equipment In The Industry!
Easy Install
All RV Pedestals Come Pre Wired And Ready To Install Out Of The Box. Breakers Included!
Weather Proof
WR Rating Outlets & Nema 3R Enclosure
