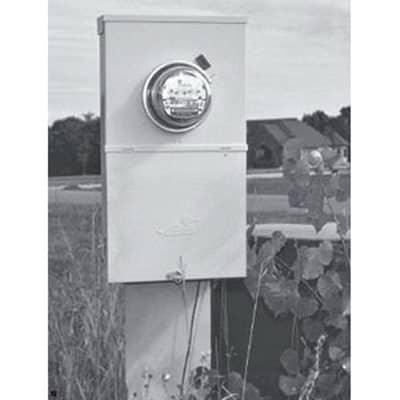

M281CB1 - 200 AMP Metered Service Entrance - Ring Type
Estimated Delivery between October 17 and October 19.
Product Description
Specifications:
| UPC: | 784567585155 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width x 4-3/4 Inch Depth x 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Catalog Number: | R281CB1 |
| Brand Name: | Midwest Electric |
| Type: | Metered Ring Type |
| Current Rating: | 200 Amp |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Amp Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width X 4-3/4 Inch Depth X 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1 200A SURFACE METERED 14X28 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567585155 |
M281CB1 - 200 AMP Metered Service Entrance - Ring Type
Please Review Return Policy Here: Return Policy
Pay with
Your transaction is protected with advanced security measures to keep your information confidential
Product Description
Specifications:
| UPC: | 784567585155 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width x 4-3/4 Inch Depth x 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Catalog Number: | R281CB1 |
| Brand Name: | Midwest Electric |
| Type: | Metered Ring Type |
| Current Rating: | 200 Amp |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB4200H |
| Wire Size: | 6 to 350 KCMIL Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 6 to 350 kcmil Stranded (Copper/Aluminum, Line Meter Socket), 1 to 4 AWG Stranded (Copper/Aluminum, Load Base Lug/Neutral A), 6 to 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 to 8 AWG Solid/14 to 4 AWG Stranded (Copper, Neutral/Ground C), 12 to 8 AWG Solid/12 to 4 AWG Stranded (Neutral/Ground C) Wire Size; UL Approval; NEMA 3R Enclosure; 200 Amp Current Rating; 1-Phase Circuit Configuration; CB4200H First Position Circuit Breaker Type; Voltage Rating 120/240 Volt; Cabinet Dimension 14-3/8 Inch Width X 4-3/4 Inch Depth X 28-5/8 Inch Height; Mounting Type Surface; Applicable Standard NEMA, NEC |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | MIDWEST R281CB1 200A SURFACE METERED 14X28 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
| UPC 12 Digit: | 784567585155 |
