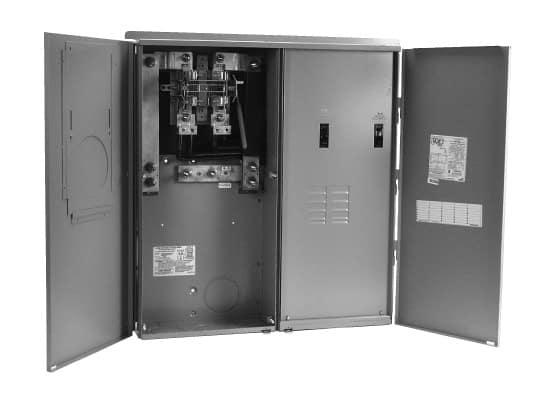

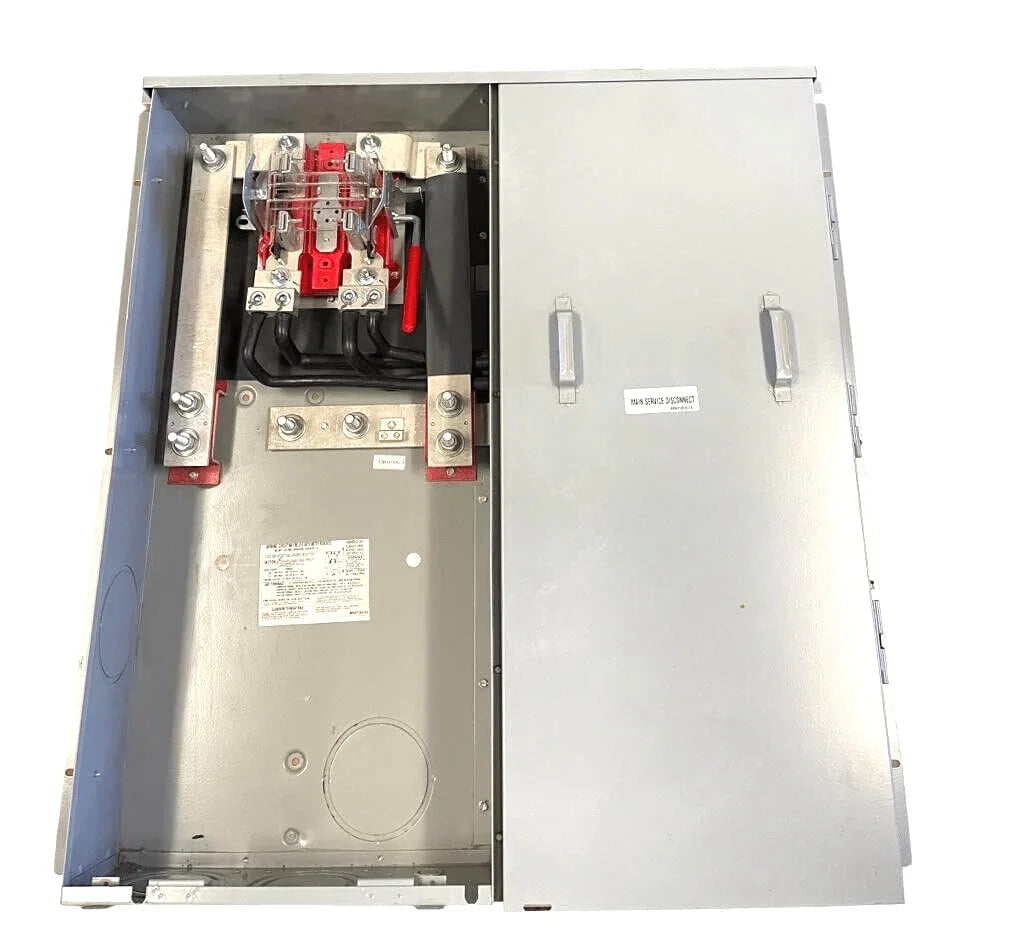

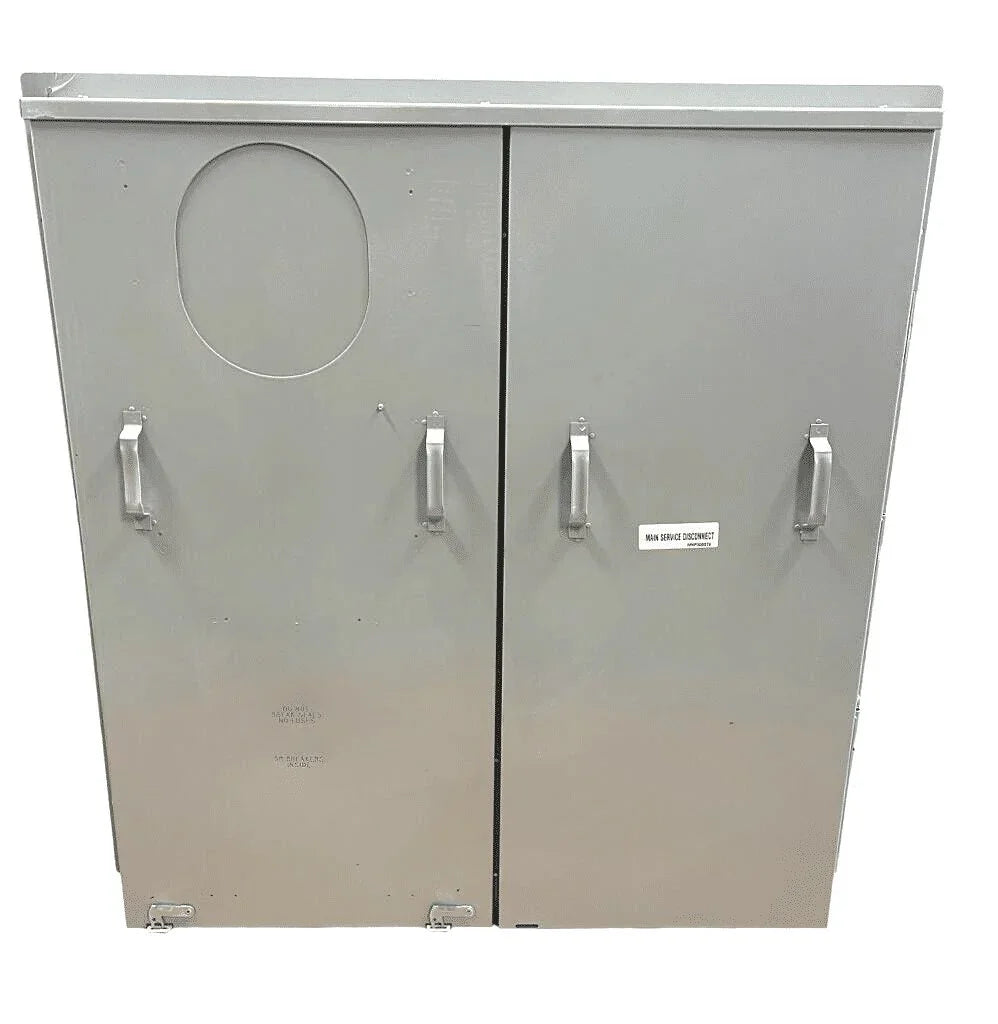

Midwest MS45508C 400A Ring Type Load center - All-In-One House Panel
Estimated Delivery between October 17 and October 19.
400 Amp All-In-One House Panel with Lever Bypass, Ring Type, 4 Jaws, 1-Phase, 120/240V, 22 kAIC, 8/8 Distribution, Main Breaker Type, UG Service, NEMA 3R - Rainproof Enclosure, Surface Mount Includes: (2) 200A Main Breakers
Product Specifications
| UPC: | 784567208658 |
| Finish: | Zinc Coated |
| Enclosure: | NEMA 3R |
| Approval: | UL |
| Additional Information: | Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 30-1/2 Inch W x 6-1/10 Inch D x 33-1/10 Inch H; Mounting Surface |
| Catalog Number: | MS45508C |
| Type: | Metered Ring Type |
| Current Rating: | 400 Ampere |
| Circuit Configuration: | 1-Phase |
| First Position Circuit Breaker Type: | CB2201H |
| Second Position Circuit Breaker Type: | CB2201H |
| Wire Size: | 1 AWG to 300 KCMIL Stranded (Copper/Aluminum, Load 1), 1 AWG to 300 KCMIL Stranded (Copper/Aluminum, Neutral N1), 6 to 2/0 AWG (Copper/Aluminum, Ground) |
| Material: | G90 Galvanized Steel |
| CATALOG DESCRIPTION: | NATIONAL ELECTRIC CODE REQUIRES ELECTRICAL DISTRIBUTION EQUIPMENT TO BE RATED AS SERVICE ENTRANCE, WHEREVER ELECTRICAL POWER ENTERS A BUILDING OR OTHER STRUCTURE. SERVICE ENTRANCE PRODUCTS ARE TYPICALLY UTILIZED ON SINGLE-FAMILY RESIDENCES AND MOBILE HOMES. MIDWEST ELECTRIC OFFERS A BROAD RANGE OF SURFACE MOUNT AND PEDESTAL UNITS, FACTORY ASSEMBLED AND WIRED. PEDESTAL UNITS COME STANDARD WITH LOOP FEED LUGS TO REDUCE INSTALLATION TIME AND LABOR EXPENSE. SERVICE ENTRANCE EQUIPMENT IS MADE OF HEAVY, GALVANIZED G-90 STEEL, PREVENTING CORROSION AND FADING. |
| Category: | Metered Power Outlet Panels |
| Full Technical Description: | Metered Ringless Type; G90 Galvanized Steel Material; Zinc Coated Finish; 1 AWG to 300 kcmil Stranded (Copper/Aluminum, Load 1), 1 AWG to 300 kcmil Stranded (Copper/Aluminum, Neutral N1), 6 to 2/0 AWG (Copper/Aluminum, Ground) Wire Size; UL Approval; NEMA 3R Enclosure; 400 Ampere Current Rating; 1-Phase Circuit Configuration; CB2201H First Position Circuit Breaker Type; CB2201H Second Position Circuit Breaker Type; Applicable Standard NEMA, NEC; Voltage Rating 120/240 V; Cabinet Dimension 30-1/2 Inch W X 6-1/10 Inch D X 33-1/10 Inch H; Mounting Surface |
| Manufacturer: | Midwest Electric Products, Inc. |
| Manufacturer Brand: | Midwest Electric Products, Inc. |
| Product Description: | Midwest MS45508C 400A Ring Type Loadcenter 31X33 |
| Sub-Category: | Outdoor Surface Mount Power Outlet Panel |
